Ubiquiti Networks UNVR-Pro UniFi Protect Network Video Recorder Pro

Product Highlights
  • (1) Gigabit RJ45 Port - 2U Rackmountable (Kit Included)
  • Automated Secure RAID 1/5
  • UniFi Protect Integrated with NVR
  • Bluetooth for Easy Setup with UniFi Protect Application
  • USP-RPS Support for Redundant Power Backup
  • Model#: UNVR-Pro

    Sku: IT4269

    MSRP: $649.99

    In Stock

    Your Price: $649.99

    SKU: UNVR-Pro

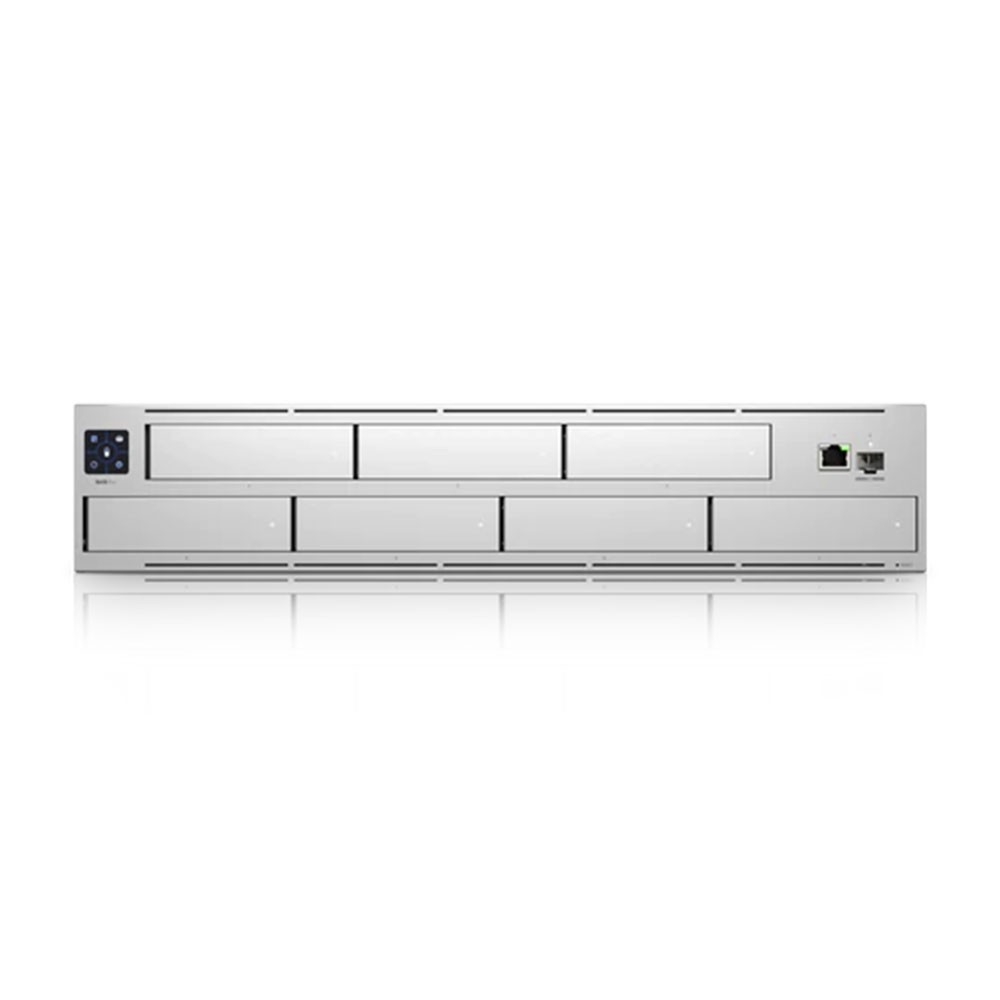

    Network Video Recorder Pro

    The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).

    The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.

    The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It's also equipped with a 1.3" touchscreen display for concise, convenient video event previewing.



    • (7) 2.5"/3.5" HDD bays
    • (1) 10G SFP+ port
    • (1) GbE RJ45 port
    • 2U-sized, rack-mountable console (kit Included)
    • 1.3" touchscreen with video event previewing*
    • Pre-installed UniFi Protect application
    • Simple, Bluetooth-powered setup via the UniFi Protect mobile app
    • Automated RAID 1, 5, or 10 HDD configuration
    • Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
    • Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)

    Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.

    Optimize your camera security

    The UNVR Pro is designed to support the most demanding, multi-camera systems.

    • Immense Storage Capacity: Install up to seven multi-terabyte HDDs (2.5 or 3.5")
    • Fast Fiber Connectivity: Create high-speed connections to your Protect cameras and UniFi devices
    • Plug & Play Design: Run UniFi Protect instantly after setup
    • Instant Data Protection: Protect your drive data with automatic HDD configurations
    • Reliable Backup Power: Keep your UNVR Pro running through power failure
    • Ample HD and 4K video storage: Access high-resolution recordings when you need them.

    Specifications UNVR-PRO

    Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
    Weight Without Rackmount Brackets: 9.2 kg (20.28 lb)
    With Rackmount Brackets 9.45 kg (20.83 lb)
    Enclosure Material SGCC Steel
    Mount Materials SGCC Steel
    Max. Power Consumption 160W
    Max. Power Budget for Drives 135W
    Power Method (1) Universal AC input, 100-240VAC, 3A Max, 50/60 Hz (1) USP-RPS DC input, 11.5VDC, 13.91A
    Power Supply AC/DC, Internal, 200W
    Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet
    RF Interface (1) Bluetooth v4.1
    LCM Display (1) 1.3" Touchscreen
    Bootup Animation Bootup in Progress
    Firmware Upgrade Icon Firmware Upgrading
    Steady White Factory Defaults, Awaiting Adoption
    Steady Blue Device is Adopted
    Management Interface Ethernet In-Band Management
    ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 - 95% Noncondensing
    Certifications FCC, CE, IC
    Ethernet White: 10/100/1000 Mbps
    SFP+ White: 1/10 Gbps
    HDD Amber: Disk Error, White: Disk Detected
    RPS Blue: Ready
