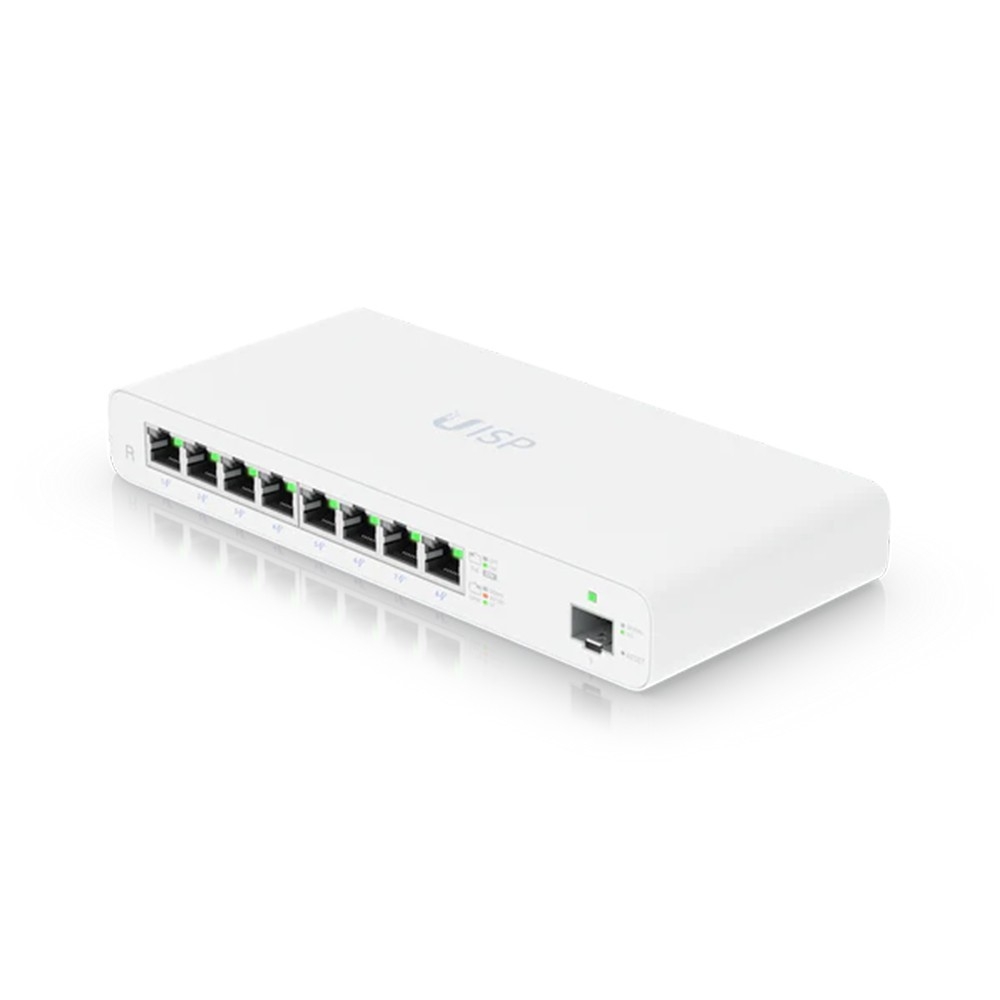

Ubiquiti Networks UISP-R UISP Router
Product Highlights
Model#: UISP-R
Sku: IT4255
MSRP: $129.99
In Stock
Your Price: $129.99
MODEL: UISP-R
UISP Router
Eight-port, Gigabit PoE router designed for MicroPoP applications and supporting secure, large-scale networks.
Features:
- (8) GbE RJ45 ports with 27V passive PoE output
- (1) SFP port
- 110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
- Up to 1 Gbps NAT throughput**
- Traffic shaping functionality and automated customer suspension
- Firewall and OSPF routing
Specifications UISP-R
| Dimensions | 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1") |
| Weight | 600 g (1.3 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Dual-core 880 MHz, MIPS1004Kc |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 512 MB NAND |
| Networking interface | (8) GbE RJ45 ports (1) 1G SFP port |
| Management interface | Ethernet In-Band Bluetooth BLE |
| Power method | External AC/DC adapter |
| Power supply | 27V DC, 4.4A power adapter (included) |
| Supported voltage range | 24—28V DC |
| Max. power consumption | 10W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15kV, contact: ± 8kV |
| Operating temperature | -10 to 50° C (14 to 122° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-) |
| Max. Passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| System | Status |
| RJ45 data ports | PoE |
| Speed/link/activity | |
| SFP data port | Link/activity |
| Software | |
| Management application | UISP: Version 1.4.0 and later |
Datasheet
