U6-Mesh

Ubiquiti

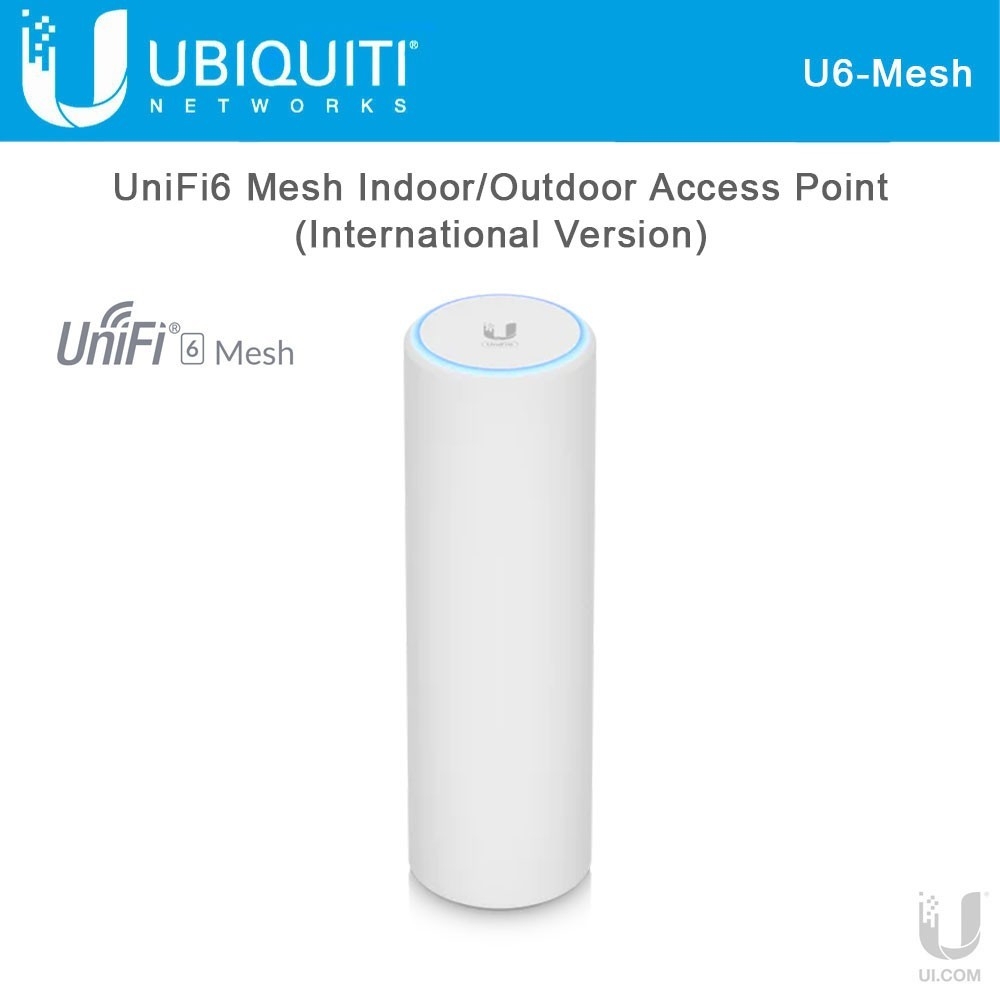

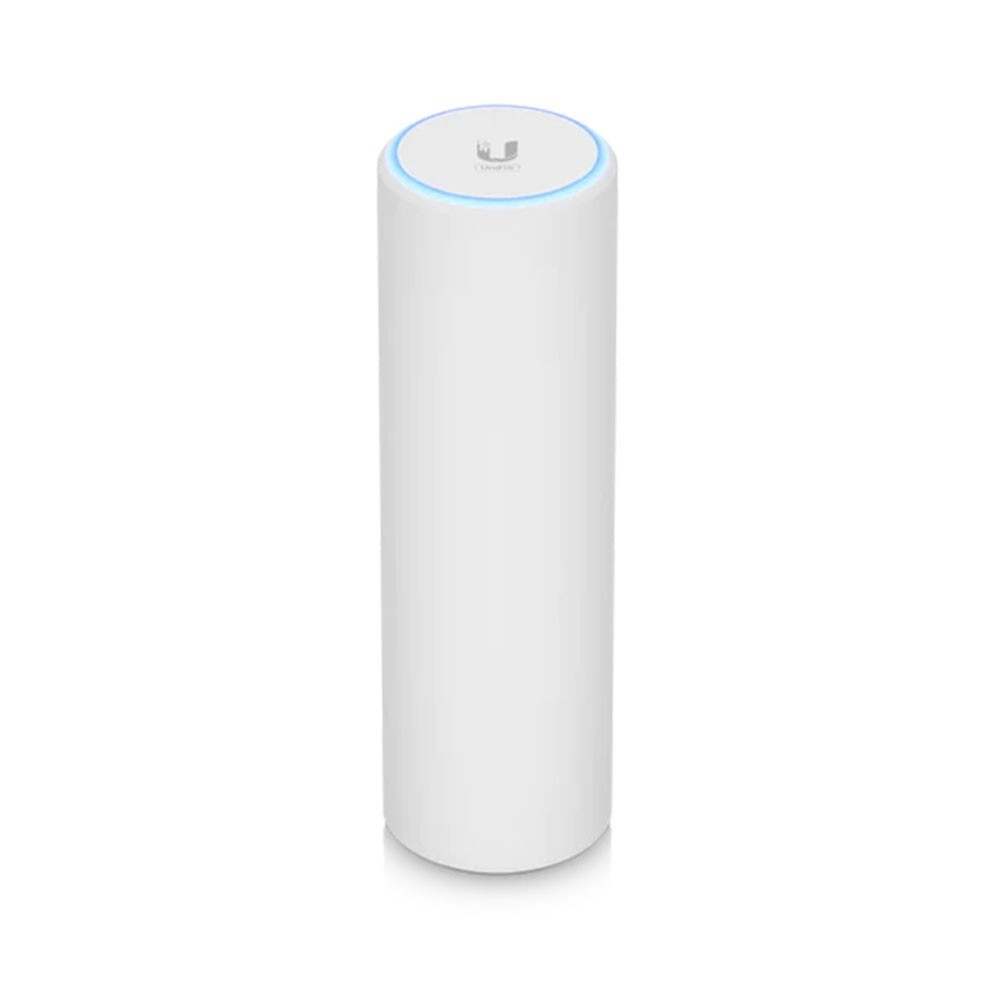

Ubiquiti Networks U6-Mesh UniFi AP 6 Mesh - INTERNATIONAL VERSION


Model#: U6-Mesh

Sku: IT4245



MSRP: $219.99

In Stock

Your Price: $219.99






MODEL: U6-Mesh

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.

The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Management interfaces

  • Ethernet
  • Bluetooth

Networking interface

  • (1) GbE RJ45 port

LED*

  • White/blue

*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.

Power method

  • PoE

Power supply

  • UniFi PoE switch
  • 48V, 0.32A PoE adapter (included)

Supported voltage range

  • 44 to 57VDC

Max. power consumption

  • 11.4W

Max. TX power

  • 2.4 GHz
    • 22 dBm
  • 5 GHz
    • 26 dBm

MIMO

  • 2.4 GHz
    • 2 x 2 (UL MU-MIMO)
  • 5 GHz
    • 4 x 4 (DL/UL MU-MIMO)

Throughput rate

  • 2.4 GHz
    • 573.5 Mbps
  • 5 GHz
    • 4.8 Gbps

Antenna gain

  • 2.4 GHz
    • 3 dBi
  • 5 GHz
    • 5 dBi

Mounting

  • Wall, desktop, pole mount(included)
  • Ceiling mount (optional)

Operating temperature

  • -30 to 60° C (-22 to 140° F)

Operating humidity

  • 5 - 95% noncondensing

Certifications

  • CE, FCC, IC

Datasheet

PDF File Ubiquiti Networks U6-Mesh UniFi AP 6 Mesh - INTERNATIONAL VERSION
