RB912UAG-5HPnD-OUT-US

Mikrotik


MikroTik RB912UAG-5HPnD-OUT-US 5GHz BaseBox5 802.11bgn Outdoor



Product Highlights
  • RouterBOARD unit
  • Mounting loop
  • DIN rail mount
  • PoE injector and power supply (North American power plug)
  • 24V power adapter
  • Model#: RB912UAG-5HPnD-OUT-US

    Sku: IT4244



    MSRP: $99.99


    Out of stock

    Your Price: $99.99


    MODEL: RB912UAG-5HPnD-OUT-US

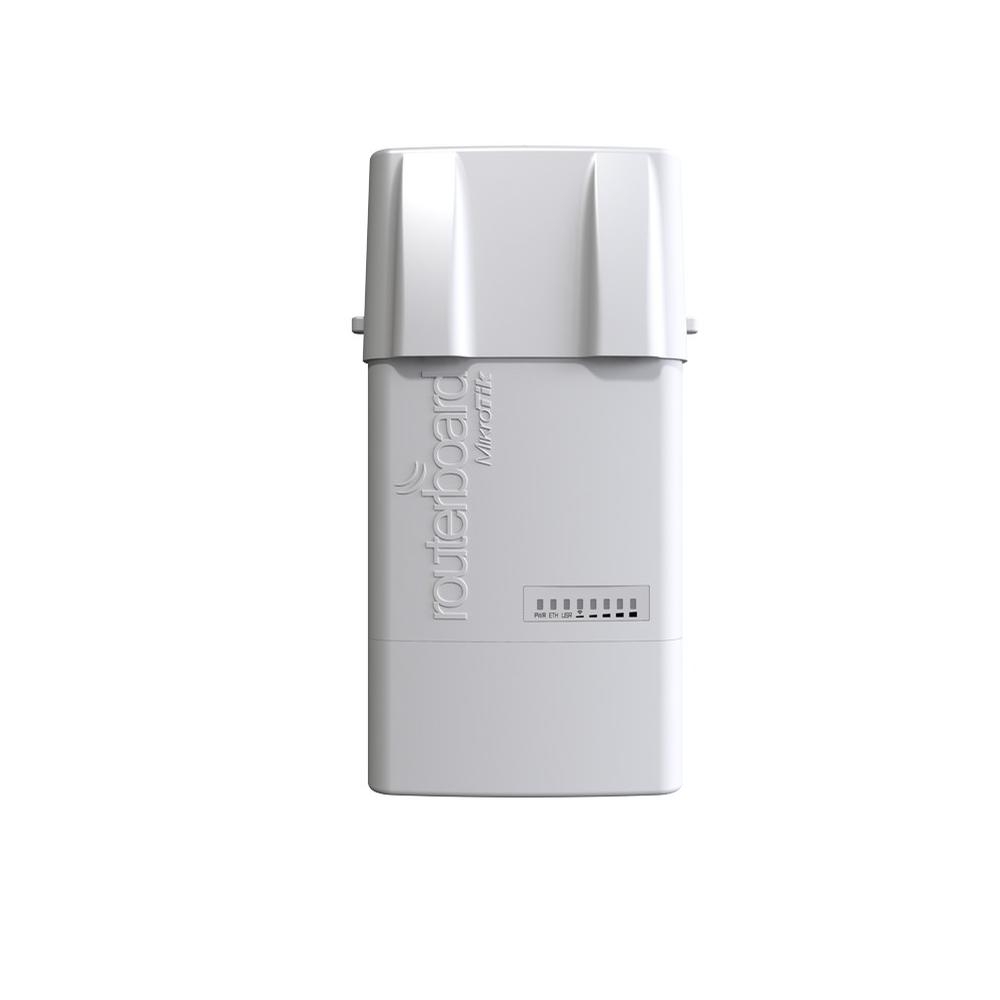

    The BaseBox in an outdoor wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

    The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

    Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.

    • 1 Ethernet, 1 miniPCIe, USB, Additional memory, Gigabit, High power, Dual chain, Outdoor case
    • Atheros AR9342 600MHz network processor
    • 64MB DDR2 onboard memory
    • One Gigabit port with Auto-MDI/X
    • Built in 5GHz 802.11a/n, 2x SMA connectors

    Specifications RB912UAG-5HPnD-OUT-US

    CPU speed 600MHz
    TX power 30dBm
    RAM 64 MB
    LAN ports 1
    Gigabit Yes
    miniPCIe 1
    Integrated wireless Yes
    Wireless standards 802.11a/n
    Supported frequency 4900-5920Mhz
    USB Yes
    Power jack Yes
    802.3af support No
    PoE 8-30V DC
    Voltage monitor Yes
    Temperature sensor Yes
    Dimensions 246x135x50mm
    Operating system RouterOS
    RouterOS license Level4

    Datasheet

    PDF File MikroTik RB912UAG-5HPnD-OUT-US 5GHz BaseBox5 802.11bgn Outdoor
