RBwAPGR-5HacD2HnD&R11e-LTE

Mikrotik

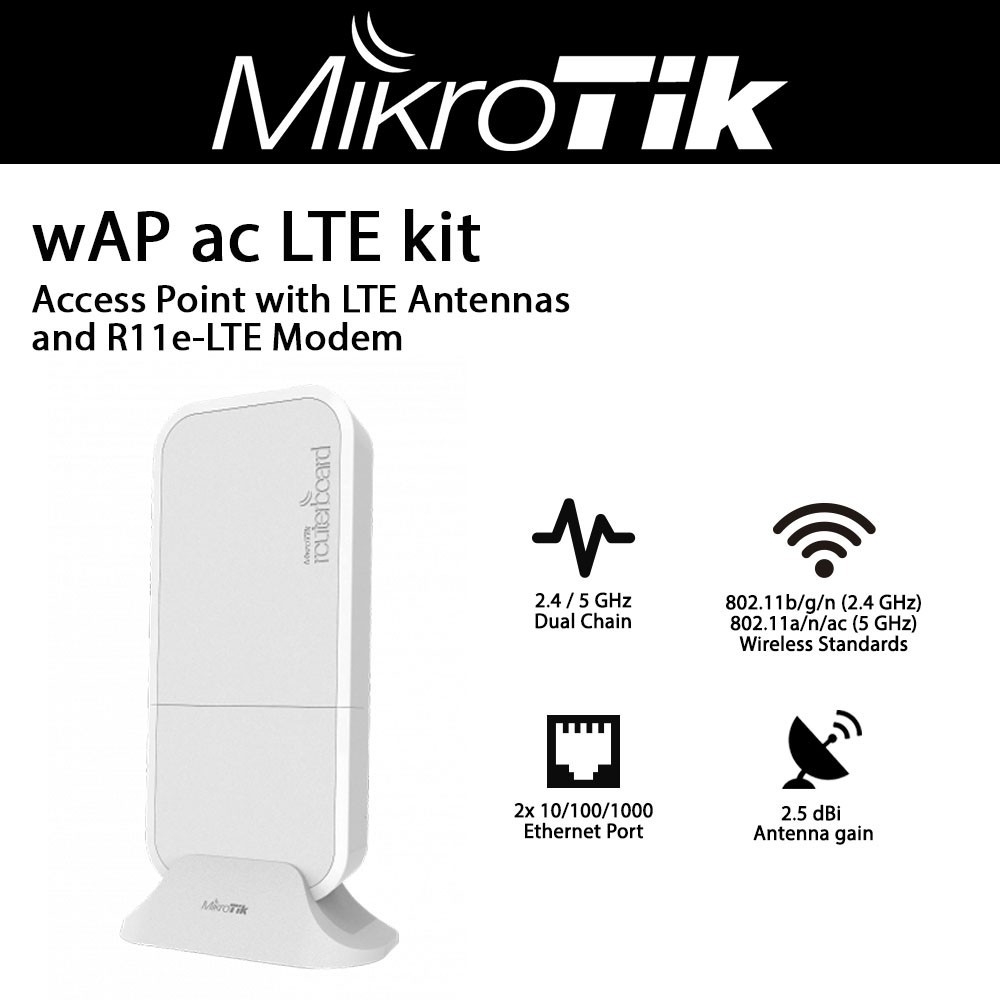

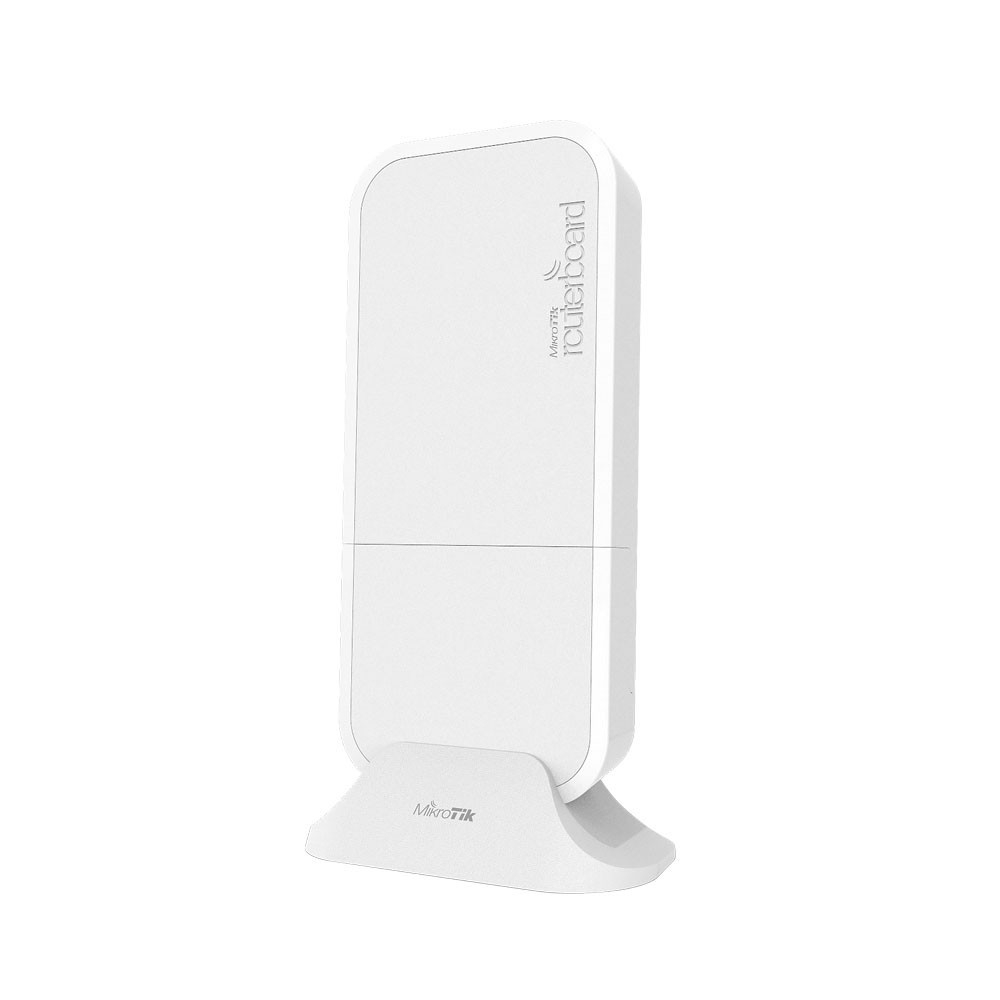

Mikrotik wAP ac LTE kit Dual Band 2.4/5 GHz Wireless Access Point w/ LTE Antennas and R11e-LTE Modem



Product Highlights
  • The wAP ac LTE also known as RBwAPGR-5HacD2HnD&R11e-LTE is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor
  • It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot
  • wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures and can be easily mounted on walls, ceilings or poles
  • This device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment
  • RBwAPGR-5HacD2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40
  • Model#: RBwAPGR-5HacD2HnD&R11e-LTE

    Sku: IT4242



    MSRP: $209.99

    In Stock

    Your Price: $209.99






    MODEL: RBwAPGR-5HacD2HnD&R11e-LTE

    The wAP ac LTE also known as RBwAPGR-5HacD2HnD&R11e-LTE is an extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on our popular weatherproof wAP form factor. It has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can also enjoy wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can be easily mounted on walls, ceilings or poles.

    Don’t be fooled by the compact size – this device is powered by a four-core 716 MHz CPU and 128 MB RAM, capable of handling heavy loads. Dual-chain 2.4 GHz and dual-chain 5GHz wireless for dual concurrent AP coverage will solve most interference issues in a crowded environment. For example, you can simultaneously use the 2.4 GHz channel for all your household mobile devices and reserve the 5GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.

    RBwAPGR-5HacD2HnD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

    High performance, great value, astonishing durability, functional and non-intrusive design – wAP ac LTE will meet most demands without making sacrifices.

    Compatible with ATT, Verizon. DOES NOT WORK WITH T-Mobile, Sprint.

    • Architecture    ARM 32bit
    • CPU    IPQ-4018
    • CPU core count    4
    • CPU nominal frequency    716 MHz
    • License level    4
    • Operating System    RouterOS
    • Size of RAM    128 MB
    • Storage size    16 MB
    • Storage type    FLASH
    • Tested ambient temperature    -30°C to 60°C
    • PoE in    802.3af/at
    • PoE in input Voltage    18-57 V
    • Number of DC inputs    2 (DC jack, PoE-IN)
    • DC jack input Voltage    10-57 V
    • Max power consumption    14 W
    • Max power consumption without attachments    10 W
    • 2G Category    Class12
    • 3G Category    R7 (21Mbps Downlinks, 5.76Mbps Uplink)
    • LTE Category    4 (150Mbps Downlink, 50Mbps Uplink)
    • LTE FDD bands    1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz)
    • LTE TDD bands    38 (2600MHz) / 40 (2300MHz)
    • 2G bands    2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
    • 3G bands    1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
    • AC speed    AC1200
    • Wireless 2.4 GHz Max data rate    300 Mbit/s
    • Wireless 2.4 GHz number of chains    2
    • Wireless 2.4 GHz standards    802.11b/g/n
    • Antenna gain dBi for 2.4 GHz    2.5
    • Wireless 2.4 GHz chip model    IPQ-4018
    • Wireless 2.4 GHz generation    Wi-Fi 4
    • Wireless 5 GHz Max data rate    867 Mbit/s
    • Wireless 5 GHz number of chains    2
    • Wireless 5 GHz standards    802.11a/n/ac
    • Antenna gain dBi for 5 GHz    2.5
    • Wireless 5 GHz chip model    IPQ-4018
    • Wireless 5 GHz generation    Wi-Fi 5
    • 10/100/1000 Ethernet ports    2
    • Number of SIM slots    1 Modem (Micro SIM)
    • MiniPCI-e slots    1
    • PCB temperature monitor    Yes
    • Voltage Monitor    Yes
    • Certification    CE/RED, FCC, IC, EAC, ROHS

    Datasheet

    PDF File Mikrotik wAP ac LTE kit Dual Band 2.4/5 GHz Wireless Access Point w/ LTE Antennas and R11e-LTE Modem
