Mikrotik wAP ac LTE6 kit US Wireless Dual-band Access Point with 2x Gigabit Ports and CAT6 LTE Modem - US VERSION
Product Highlights
Model#: RBwAPGR-5HacD2HnD&R11e-LTE6-US
Sku: IT4241
MSRP: $229.99
Out of stock
Your Price: $229.99
MODEL: RBwAPGR-5HacD2HnD&R11e-LTE6-US

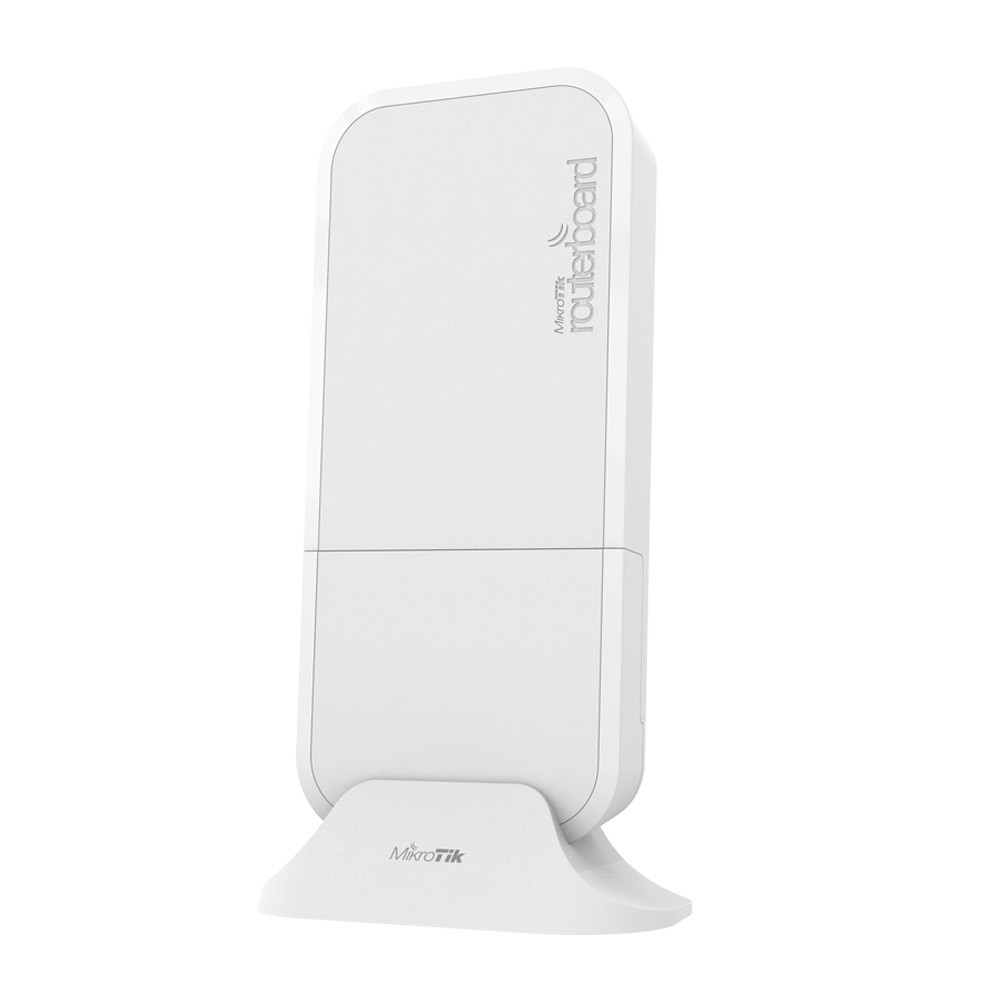

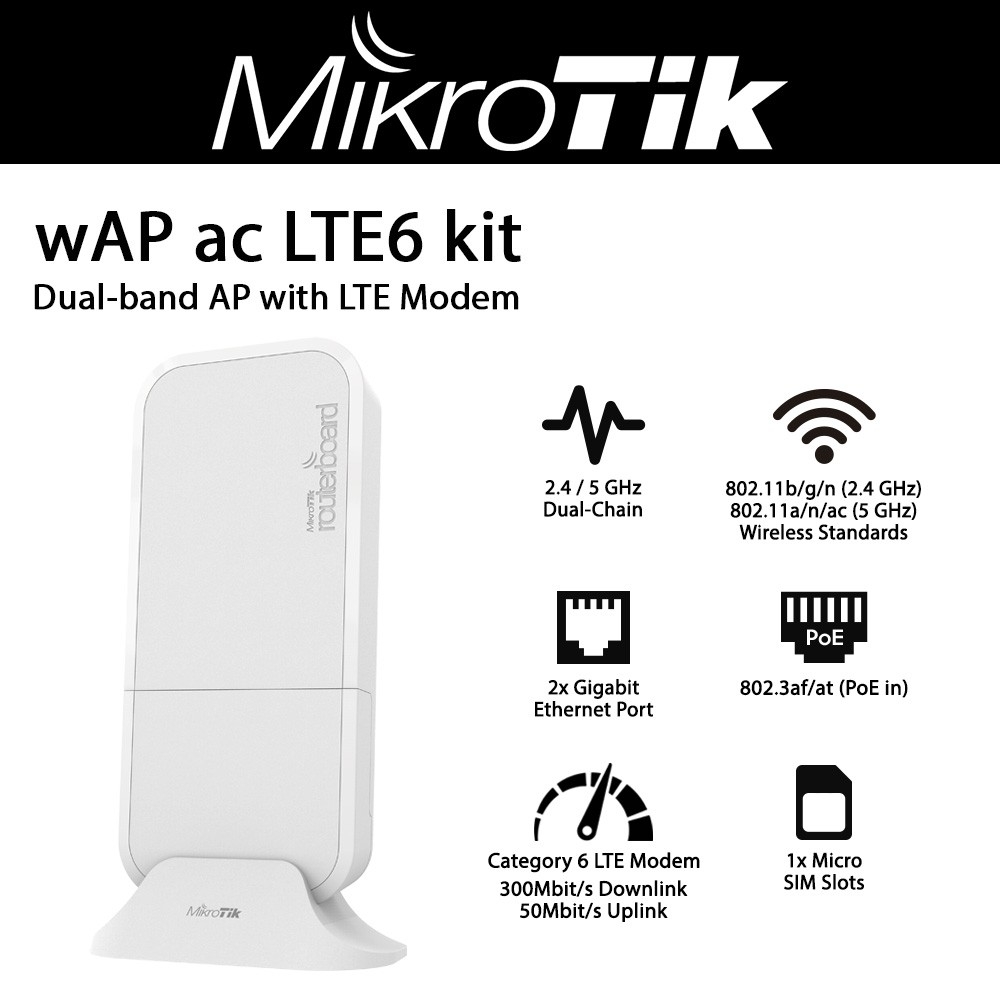

A small package with huge ambition – the wAP ac LTE6 kit also known as RBwAPGR-5HacD2HnD&R11e-LTE6 is an upgrade of our extremely cost-effective dual-band (2.4 / 5 GHz) home access point based on the popular weatherproof wAP form factor. Its new CAT6 LTE modem enables even greater download speed – up to 300 Mbps!
CAT6 also enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.
wAP ac LTE6 kit has two Gigabit Ethernet ports – you can use the device as a wired router with LTE backup via the Micro SIM slot. Alternatively, you can enjoy smooth wireless experience anywhere – indoors or outdoors. wAP ac LTE is designed to deliver strong and reliable connection in almost any situation and weather conditions. It can withstand temperatures from -30 C° to +60 C° and can be easily mounted on walls, ceilings or poles.
Specifications
- Product code RBwAPGR-5HacD2HnD&R11e-LTE6
- Architecture ARM 32bit
- CPU IPQ-4018
- CPU core count 4
- CPU nominal frequency 716 MHz
- License level 4
- Size of RAM 128 MB
- Storage size 16 MB
- Storage type FLASH
- Tested ambient temperature -30°C to 60°C
Powering
- PoE in 802.3af/at
- PoE in input Voltage 18-57 V
- Number of DC inputs 2 (DC jack, PoE-IN)
- DC jack input Voltage 10-57 V
- Max power consumption 16 W
- Max power consumption without attachments 10 W
Mobile
- 2G Category Class12
- 2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- 3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
- LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
- LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)
Wireless
- AC speed AC1200
- Wireless 2.4 GHz Max data rate 300 Mbit/s
- Wireless 2.4 GHz number of chains 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi for 2.4 GHz 2.5
- Wireless 2.4 GHz chip model IPQ-4018
- Wireless 2.4 GHz generation Wi-Fi 4
- Wireless 5 GHz Max data rate 867 Mbit/s
- Wireless 5 GHz number of chains 2
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 2.5
- Wireless 5 GHz chip model IPQ-4018
- Wireless 5 GHz generation Wi-Fi 5
Ethernet
- 10/100/1000 Ethernet ports 2
Peripherals
- Number of SIM slots 1 Modem (Micro SIM)
- MiniPCI-e slots 1
Other
- PCB temperature monitor Yes
- Voltage Monitor Yes
