CSS610-8G-2S+IN

Mikrotik

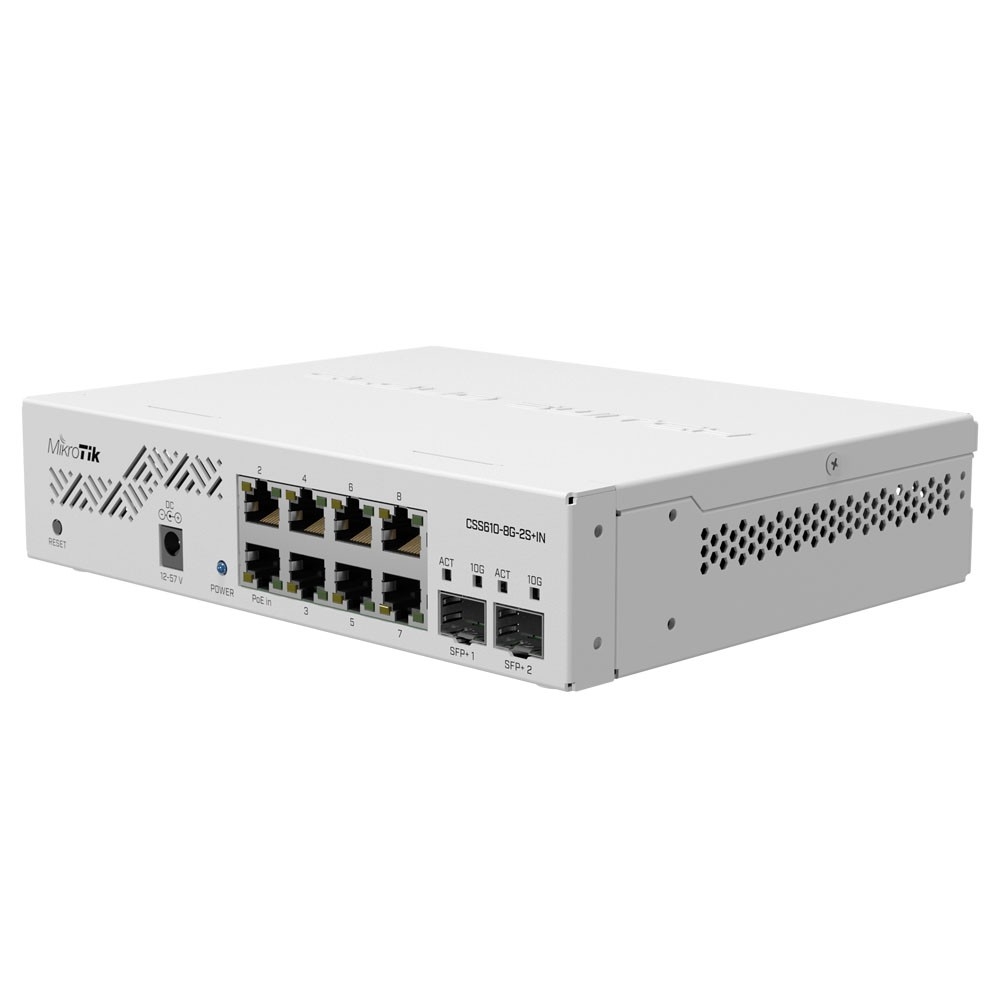

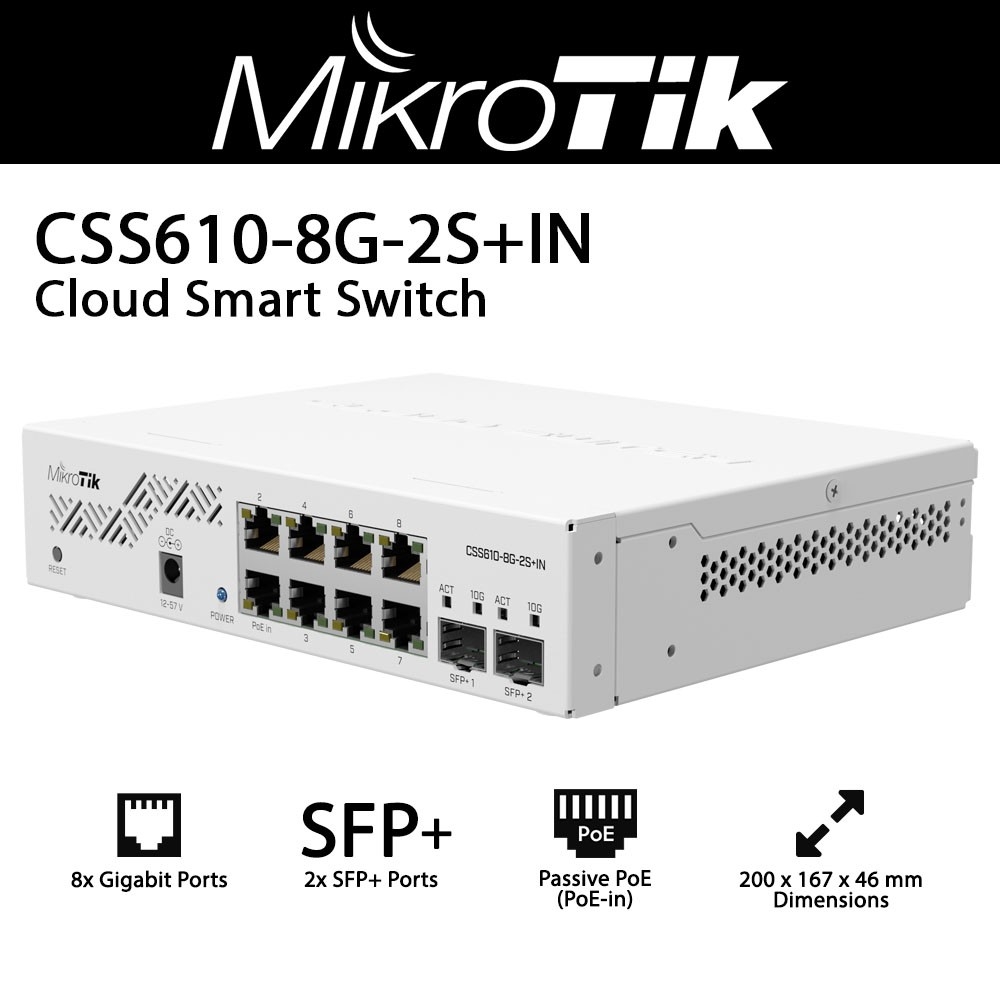

MikroTik CSS610-8G-2S+IN Cloud Smart Switch 8xGb 2xSFP+



Product Highlights
  • 8 x Gigabit Ethernet ports
  • 2x SFP+ for 10G fibe
  • Port-to-port forwarding
  • MAC filtering
  • Traffic mirroring
  • Model#: CSS610-8G-2S+IN

    Sku: IT4240



    MSRP: $125.99

    In Stock

    Your Price: $125.99






    Model: CSS610-8G-2S+IN

    Cloud Smart Switch 610-8G-2S+IN with 8 x 1G Ethernet ports and 2 x 10G SFP+ ports

    Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this switch is an instant classic!

    Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-toport forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.



    Features:

    • 8 x Gigabit Ethernet ports

    • 2x SFP+ for 10G fibe
    • Port-to-port forwarding
    • MAC filtering
    • Traffic mirroring
    • Broadcast storm control

    Specifications CSS610-8G-2S+IN

    Product code CSS610-8G-2S+IN
    Switch chip model 88E6193X
    Number of 1GbE ports 8
    Number of 10G SFP+ ports 2
    Dimensions 200 x 167 x 46 mm
    Operating system SwOS
    Operating temparature -20°C to +60°C
    Powering
    PoE-in Passive PoE
    PoE-in input Voltage 12-57 V
    Number of DC inputs 2 (PoE-in, DC jack)
    DC jack input Voltage 12-57 V
    Power adapter nominal voltage 24 V
    Power adapter nominal current 0.8 A
    Max power consumption without attachments 5 W
    Max power consumption 11 W
    Certification & Approval
    Certification CE, FCC, IC

    Datasheet

    PDF File MikroTik CSS610-8G-2S+IN Cloud Smart Switch 8xGb 2xSFP+
