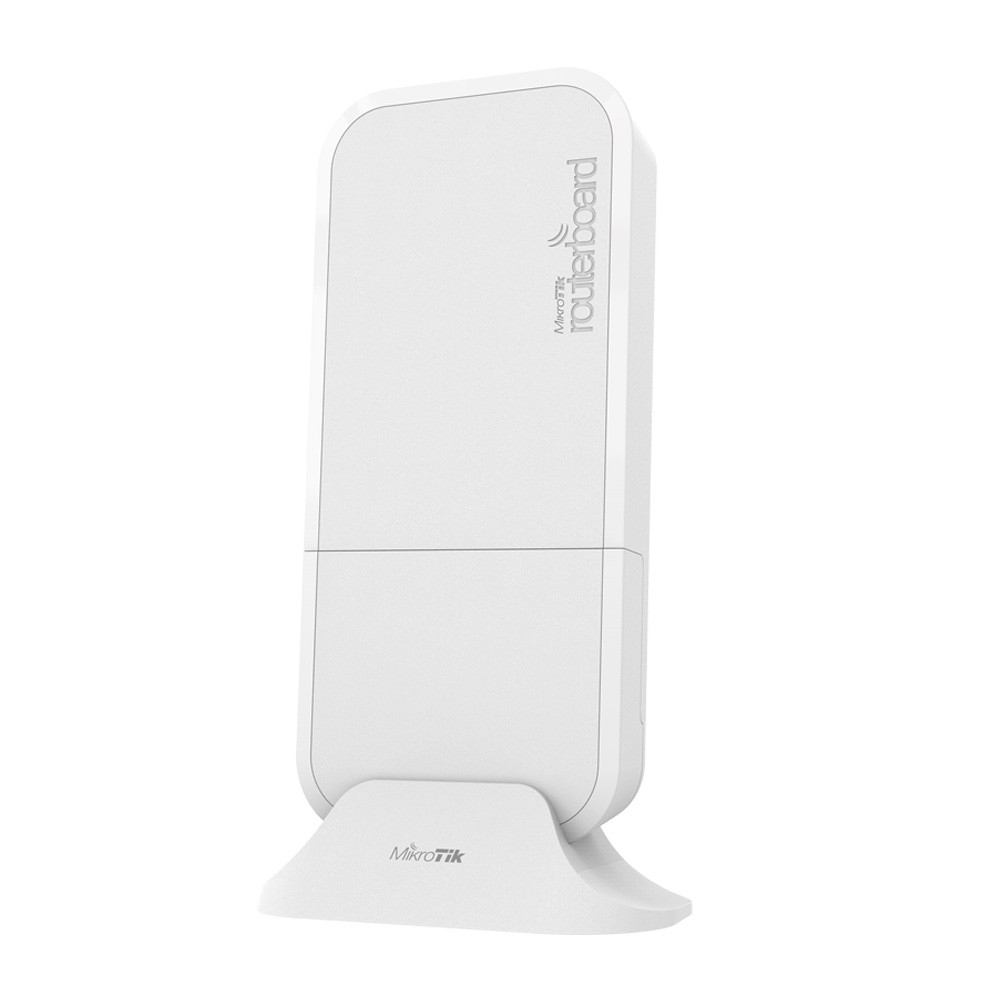

MikroTik RBwAPR-2nD&R11e-LoRa8 2.4GHz wAP w/ 863-870MHz LoRaWAN

Model#: RBwAPR-2nD&R11e-LR8

Sku: IT4216

MSRP: $169.99

In Stock

Your Price: $169.99


An out-of-the-box solution to use LoRaWAN gateway. This kit contains a pre-installed UDP packet forwarder to any public or private LoRa servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port that could be used as a backend.

This particular wAP form-factor has been tested in many other MikroTik products – it can deliver excellent and stable performance in almost any weather conditions.

You can use the optional internal 2 dBi antenna or attach an external antenna. For extra network coverage we
suggest adding MikroTik LoRa Antenna kit.

Functional and non-intrusive design, astonishing durability and great value – that is the wAP LoRa8 kit, the long awaited LoRa solution for LoRa enthusiasts of any level.


  • Product code    RBwAPR-2nD&R11e-LR8
  • Architecture    MIPSBE
  • CPU    QCA9531
  • CPU core count    1
  • CPU nominal frequency    650 MHz
  • License level    4
  • Size of RAM    64 MB
  • Storage size    16 MB
  • Storage type    FLASH
  • Tested ambient temperature    -40°C to 60°C


  • PoE in    Passive PoE
  • PoE in input Voltage    9-30 V
  • Number of DC inputs    3 (Automotive, DC jack, PoE-IN)
  • DC jack input Voltage    9-30 V
  • Automotive input Voltage    9-30 V
  • Max power consumption    7 W


  • Wireless 2.4 GHz Max data rate    300 Mbit/s
  • Wireless 2.4 GHz number of chains    2
  • Wireless 2.4 GHz standards    802.11b/g/n
  • Antenna gain dBi for 2.4 GHz    2
  • Wireless 2.4 GHz chip model    QCA9531
  • Wireless 2.4 GHz generation    Wi-Fi 4


  • 10/100 Ethernet ports    1


  • Number of SIM slots    1 Modem (Mini SIM)
  • MiniPCI-e slots    1


  • PCB temperature monitor    Yes
  • Voltage Monitor    Yes


PDF File MikroTik RBwAPR-2nD&R11e-LoRa8 2.4GHz wAP w/ 863-870MHz LoRaWAN
