POE-24-24W-G-WH
POE-24-24W-G-WH picture 3

Ubiquiti

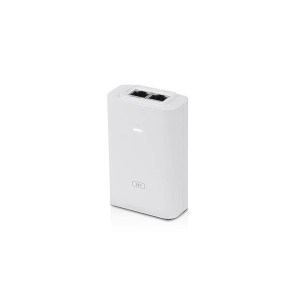

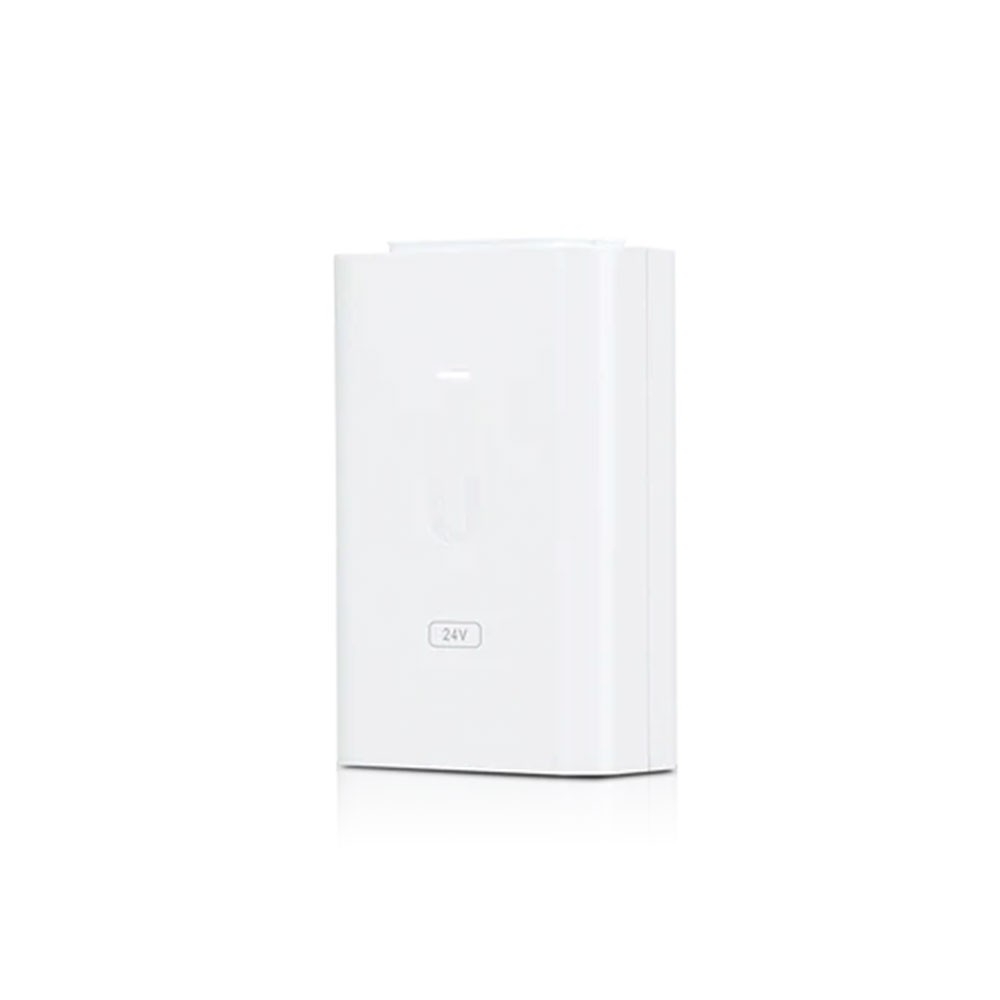

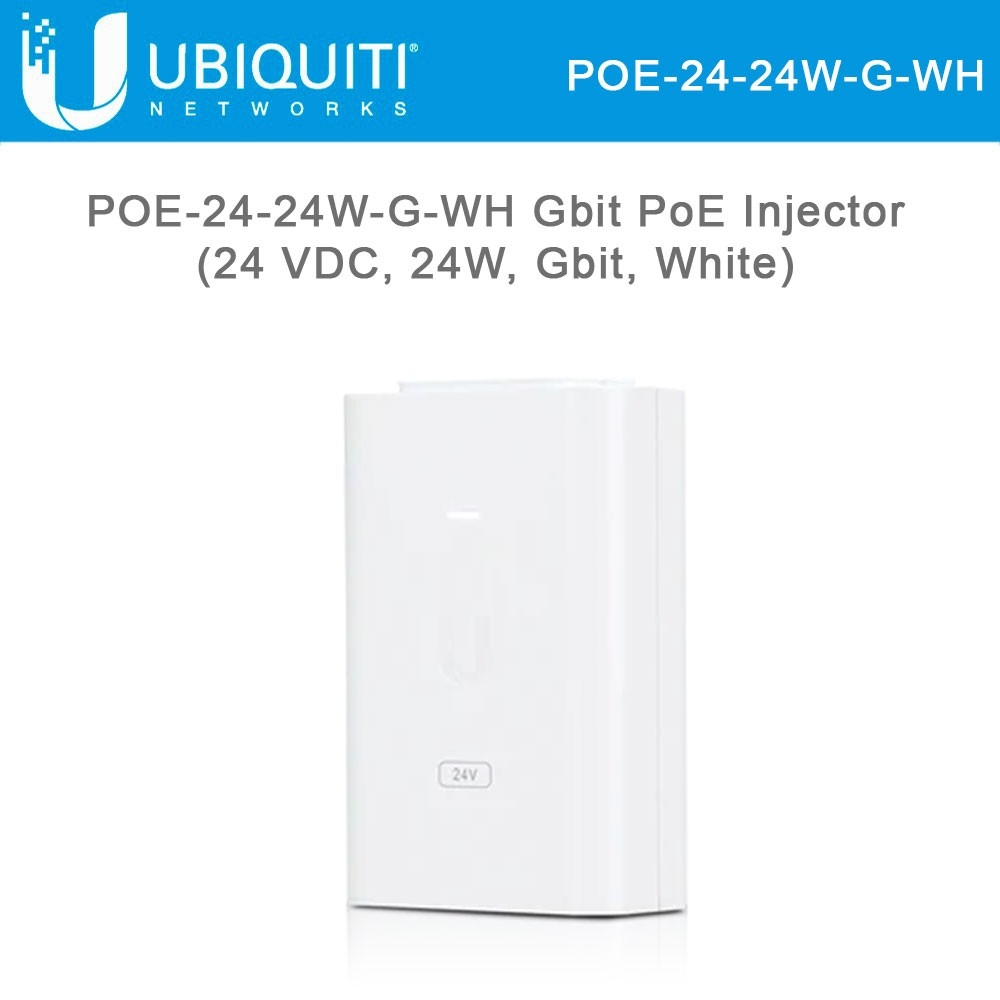

Ubiquiti Networks POE-24-24W-G-WH 24V PoE 1A Gigabit White



Product Highlights
  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
  • Model#: POE-24-24W-G-WH

    Sku: IT4207



    MSRP: $13.99

    In Stock

    Your Price: $13.99






    MODEL: POE-24-24W-G-WH

    The Ubiquiti POE-24-24W-G Power over Ethernet PoE Injector is highly reliable, and when used with Ubiquiti TOUGHCable, the Ubiquiti POE-24-24W-G provides earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

    Device Protection

    PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable™, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

    Convenient Wall-Mounting

    The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

    Seamless airGateway™ Compatibility

    The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway™ to bridge airMAX® connections to Wi-Fi at customer locations

    Specifications POE-24-24W-G

    Model POE-24-24W-G
    Dimensions 88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)
    Weight 158.5 g (5.59 oz)
    Output Voltage 24VDC @ 1.0A
    LAN Activity Indicator No
    Gigabit LAN Port Yes
    Remote Reset Capability Yes
    Reset Button Yes
    Input Voltage 90-260VAC @ 47-63 Hz
    Input Current 0.6A @ 120VAC, 0.4A @ 240VAC
    Inrush Current <60A Peak @120VAC, <120A Peak @ 230VAC
    Efficiency 80+%
    Output Ripple 1% Max.
    Switching Frequency 65 kHz
    Line Regulation ± 1%
    Load Regulation ± 3%
    4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
    Operating Temperature 0 to 40° C (32 to 104° F)
    Storage Temperature -30 to 70°C (-22 to 158° F)
    Operating Humidity 35 to 95% Non-Condensing
    AC Connector IEC-320 C6
    Data IN / POE RJ45 Shielded Socket
    Surge Protection Difference and Common Mode
    Clamping Protection 11V Data, 60V Power
    Max. Surge Discharge 1500A (8/20µS) Power
    Peak Pulse Current 36A (10/1000µS) Data
    Shunt Capacitance <5 pf data
    Response Time <1 nS
    Compliance IEC 60950-1:2005+A1
    UL60950-1
    EN55022:2010, EN55024:2010
    FCC Class B
    AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico

    Datasheet

    PDF File Ubiquiti Networks POE-24-24W-G-WH 24V PoE 1A Gigabit White
