LTU-Pro

Ubiquiti


Ubiquiti Networks LTU PRO 5GHz Point-to-MultiPoint 24dBi dish Antenna 600+Mbps (PtMP) - International Version - DOES NOT WORK IN USA


Product Highlights
  • Functions in a PtMP environment with the LTU-Rocket as the basestation.
  • Channel width options include: 10 MHz, 20 MHz, 30 MHz, 40 MHz, 50 MHz, Up to 100 MHz*.
  • Auto Power Adjustments: By default, the Auto Output Power option allows the LTU Pro to set the output power (EIRP) to the appropriate level.
  • To manage the LTU Pro, you have 2 options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Pro.
  • Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

    • Model#: LTU-Pro

    Sku: IT4200



    MSRP: $209.99


    Out of stock

    Your Price: $209.99


    Model: LTU-Pro

    LTU Pro 5 GHz Poin-to-MultiPoint (PtMp) LTU

    Overview

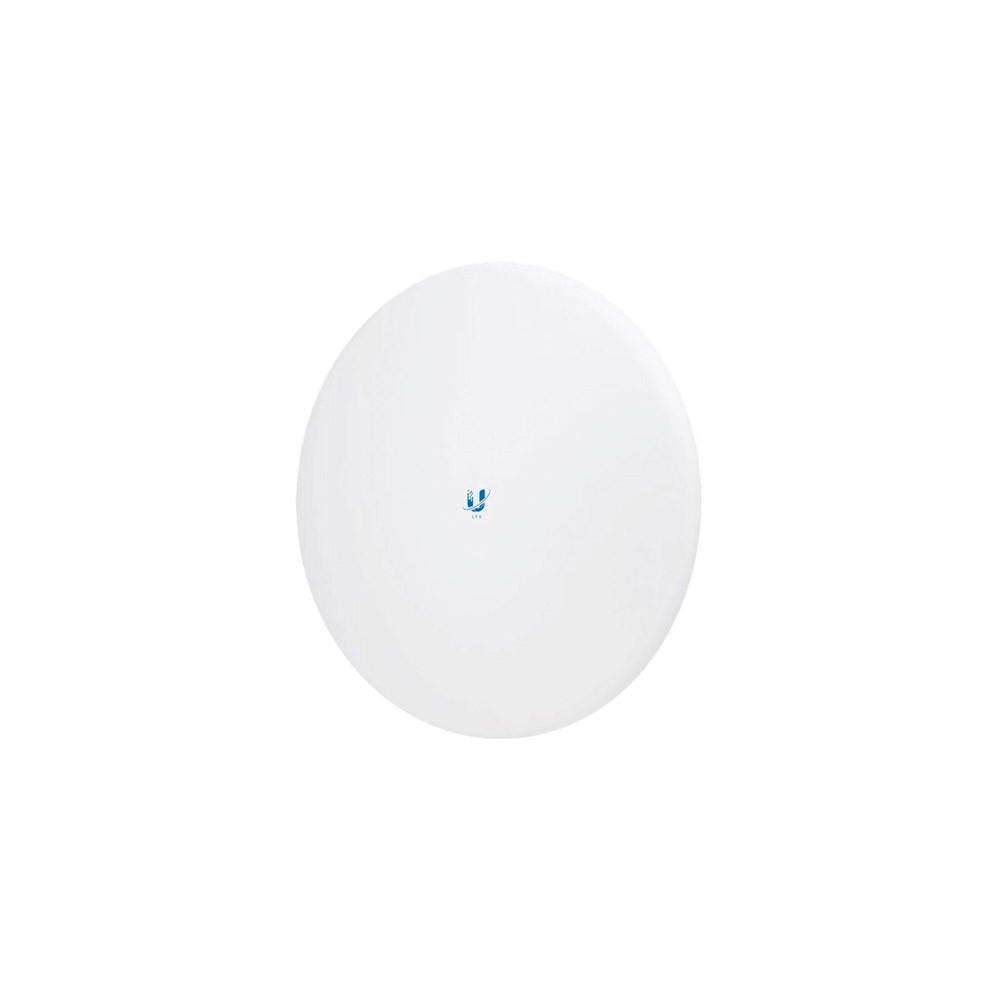

    Featuring an integrated 24 dBi dish antenna, the LTU Pro is a 5 GHz subscriber station that functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.

    Proprietary LTU Technology

    Based on Ubiquiti’s LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2 .

    CPE Modes

    The LTU Pro supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

    Frequency Split

    The LTU Pro can use different frequencies for TX and RX to avoid interference.

    Dimensions: 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86")
    Weight: 1.3 kg (2.87 lb)
    Networking Interface: (1) 10/100/1000 Ethernet Port
    Enclosure: Outdoor UV Stabilized Plastic
    Max. Power Consumption: 9W
    Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
    Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
    Voltage Range: 22 -26V
    Max. Conducted TX Power: 22 dBm (per Chain)
    Gain: 24 dBi
    Beamwidth: 14°
    Sidelobe Level: -10 dB
    Front-to-Back Ratio: 27 dB
    Mounting: Pole-Mount (Kit Included)
    Wind Loading: 150 N @ 200 km/h (33.72 lbf @ 125 mph)
    Wind Survivability: 200 km/h (125 mph)
    ESD/EMP Protection: ± 24kV Contact/Air
    Operating Temperature: -40 to 60° C (-40 to 140° F)
    Operating Humidity: 10 -90% Noncondensing
    Certifications: CE, FCC, IC


    Datasheet

    PDF File Ubiquiti Networks LTU PRO 5GHz Point-to-MultiPoint 24dBi dish Antenna 600+Mbps (PtMP) - International Version - DOES NOT WORK IN USA
