GBE-LR-US

Ubiquiti

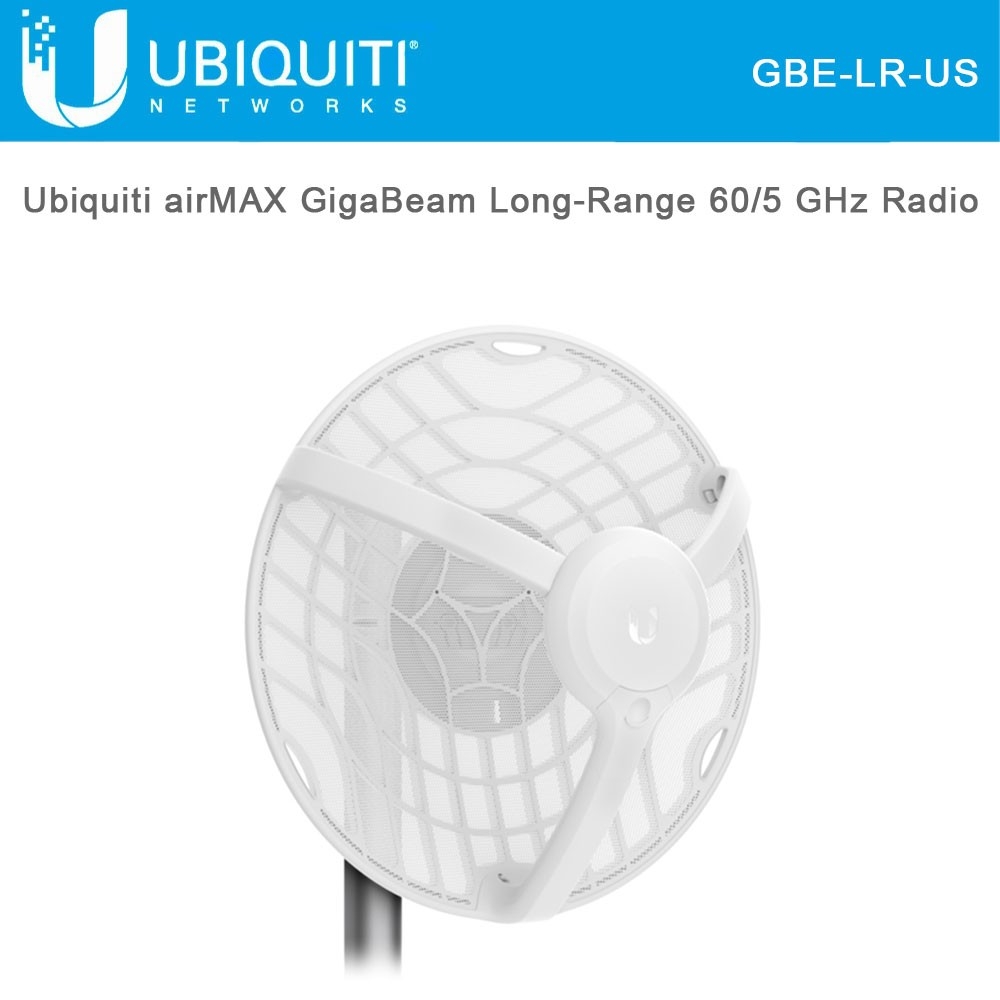

Ubiquiti Networks GBE-LR-US 60/5GHz airMAX ac GigaBeam LongRange US



Product Highlights
  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • Long-range performance
  • 2.4 GHz management radio
  • Model#: GBE-LR-US

    Sku: IT4195



    MSRP: $239.99


    Out of stock

    Your Price: $239.99


    MODEL: GBE-LR-US

    airMAX AC 60 GHz/5 GHz Radio with 1+ Gbps Throughput and Up to 2 km Range

    Featuring a high-gain dish antenna, the GigaBeam LR is a 60 GHz radio designed for low-interference and high-throughput connectivity in long-range deployments. It includes a 5 GHz radio for failover. For the 60 GHz link, the GigaBeam LR supports full bandwidth use of 2.16 GHz. The dedicated management radio allows easy setup via Wi-Fi.



    Product Features

    • 60 GHz radio with 5 GHz radio backup
    • Low-interference 60 GHz spectrum
    • Up to 1+ Gbps with low latency
    • 2.4 GHz management radio
    • Full bandwidth support: 2.16 GHz
    • Enclosure: Aluminum, UV-Resistant Polycarbonate
    • Networking Interface: 10/100/1000 Ethernet Port, Wi-Fi for Management
    • Mounting:
      • Pole-Mount Kit (Kit Included)
      • Wall-Mount (Not Included)


    Product Specifications

    • Antenna Gain
      • 5 GHz: 11 dBi
      • 60 GHz: 38 dBi
    • Networking Interface: (1) 10/100/1000 Mbps Ethernet Port
    • Max. Power Consumption: 11W
    • Power Method: Passive PoE (Pairs 4, 5+; 7, 8-)
    • Power Supply: 24VDC, 0.5A Gigabit PoE (Included)
    • Voltage Range: +22 to +26VDC
    • LEDs: Power/ Ethernet/ 5G/ 60G
    • Wind Loading: 56 N @ 200 Km/H (12.6 lbf @ 125 MPH)
    • Wind Survivability: 200 Km/H (125 MPH)
    • Mounting: Pole-Mount (Included)
    • ESD/ EMP Protection: ± 24kV Contact/ Air
    • Operating Temperature: -40 to 60°C (-40 to 140°F)
    • Operating Humidity: 5 to 95% Non-condensing
    • Certifications: CE, FCC, IC


    Radio

    • Max. Conducted TX Power:
      • 5/ 60 GHz Combined: 25 dBm
    • Channel Bandwidth:
      • 60 GHz: 2160 MHz
      • 5 GHz: 20/ 40/ 80 MHz
    • Management Radio (MHz):
      • US/CA: 2412-2462


    Product Includes

    • (1) Dish
    • (1) Main Arm
    • (2) Support Arms
    • (1) Mounting Bracket
    • (1) Screw
    • (1) U-Clamp
    • (2) Flat Washers
    • (2) Lock Washers
    • (2) Flange Nuts
    • (1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
    • (1) Power Cord
