UF-WiFi

Ubiquiti


Ubiquiti Networks UFiber WiFi 4-Port GPON Router with WiFi Gigabit Ethernet 300Mbps 802.11n - UF-WiFi - INTERNATIONAL VERSION



Product Highlights
  • Ubiquiti UFiber UF-WiFi-US WiFi 4-Port GPON Router WiFi Gigabit 300Mbps 802.11n (10-Pack)
  • Sporting a sleek industrial design, the U?Fiber WiFi is a robust, high-performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.
  • The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
  • The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
  • Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
  • Model#: UF-WiFi

    Sku: IT4191



    MSRP: $59.99


    Out of stock

    Your Price: $59.99


    Model: UF-WiFi (INTL)

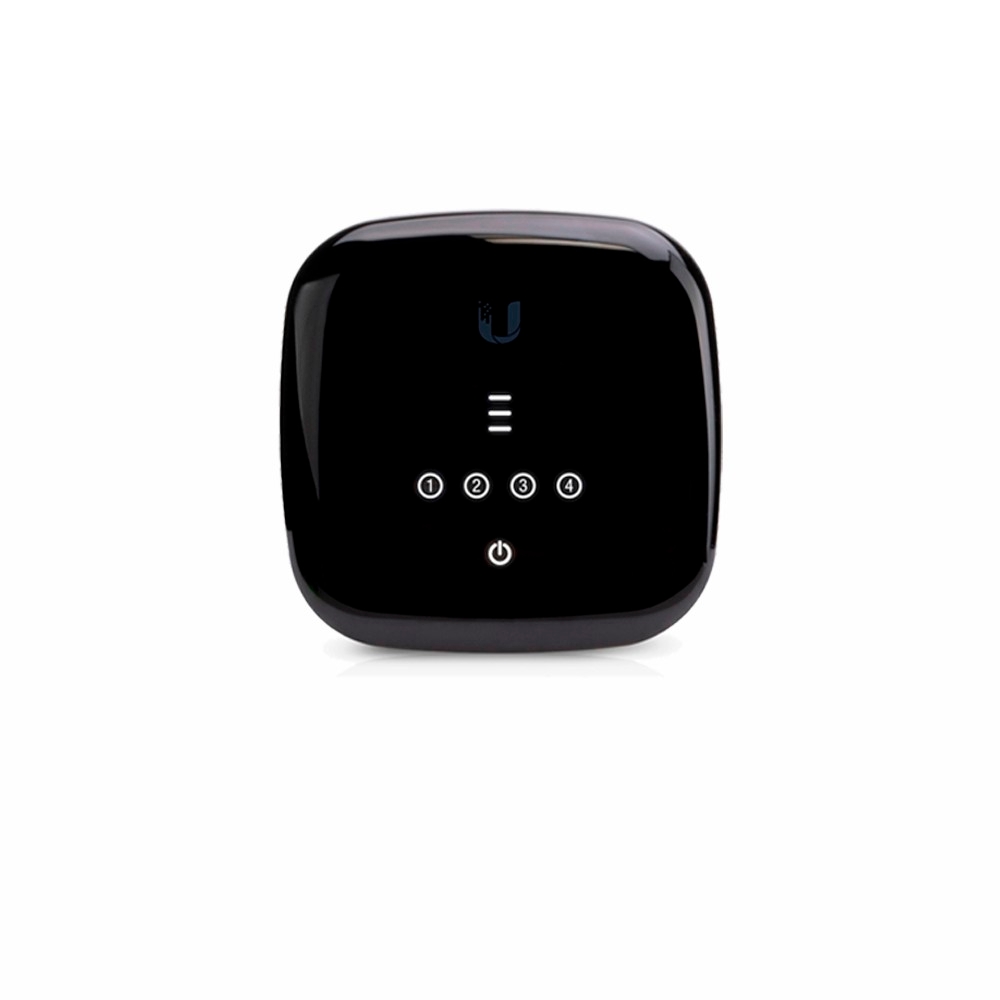

                                                 UFiber WiFi 4-Port GPON Router with Wi-Fi



    Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing UFiber OLT – a fiber solution that anyone can deploy. UFiber offers internet and telecom service providers a cost-effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber network is intelligently managed using the included UNMS (Ubiquiti Network Management System) controller. UFiber devices consist of the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano G, loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).

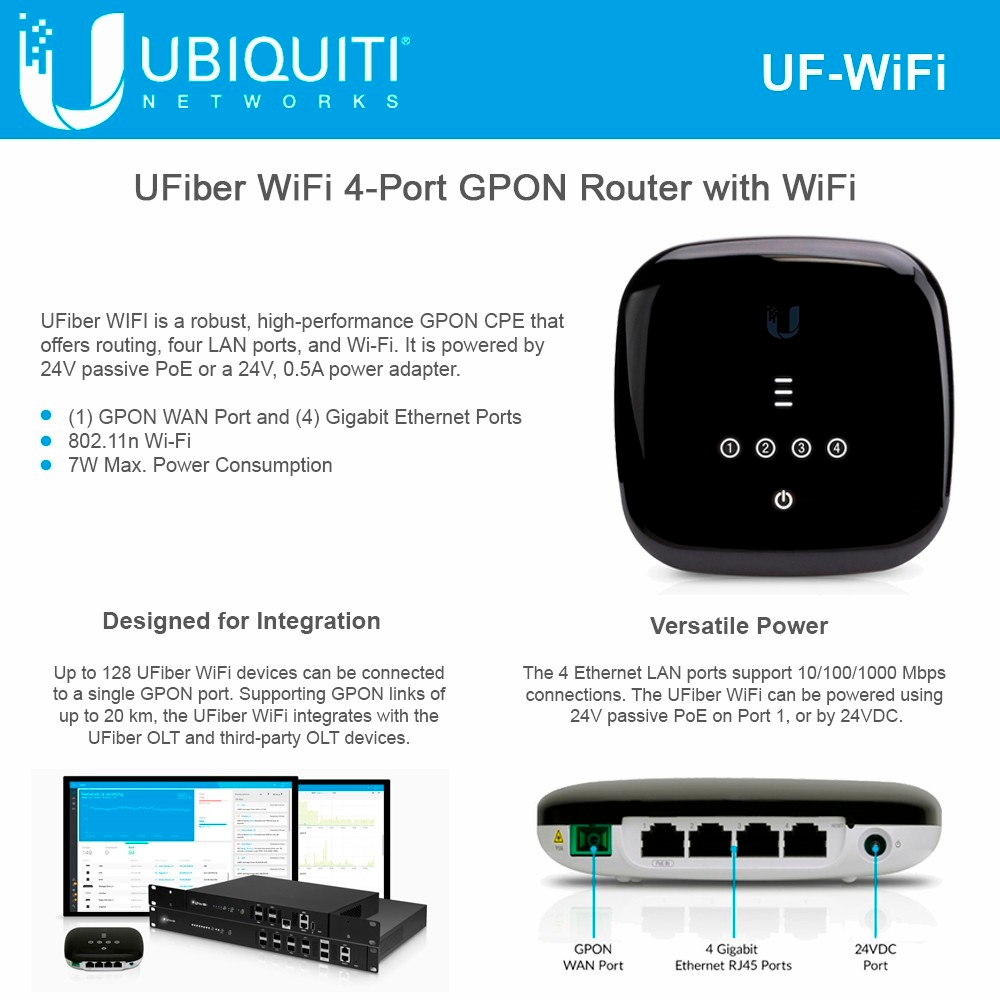

    UFiber WIFI is a robust, high-performance GPON CPE that offers routing, four LAN ports, and Wi-Fi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.

    • (1) GPON WAN Port and (4) Gigabit Ethernet Ports
    • 802.11n Wi-Fi
    • 7W Max. Power Consumption

    • Status LEDs

    The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.

    • Versatile Power

    The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.

    • Designed for Integration

    Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.

    Model: US-WiFi (INTL)

    • Dimensions: 126.34 x 126.09 x 31.65 mm / (4.97 x 4.96 x 1.25")
    • Weight: 190 g (6.70 oz)
    • Networking Interfaces: (1) SC/APC, GPON WAN
    •                                     (4) Gigabit RJ45, Ethernet LAN
    •                                     (1) Wi-Fi, 802.11n
    • Networking Interface Speeds: 2.488 Gbps Downstream
    • GPON WAN, ITU G.984: 1.244 Gbps Upstream
    • GbE LAN: 10/100/1000 Mbps
    • Wi-Fi: 300 Mbps
    • Management Interface: In-Band Ethernet/PON
    • Normal Optical Power Range: TX (Class B+): 1.5 to 5 dBm / RX: -28 to -8 dBm
    • Power Method: DC Jack, 24VDC / 24V Passive PoE (Pins 4, 5+; 7, 8-)
    • Power Supply: 100-240VAC / 50-60 Hz Universal AC/DC
    • Power Adapter: 24V / 0.5A
    • Max. Power Consumption: 7W
    • Supported Voltage Range: 20 to 28V
    • Processor Specs: MIPS, 900 MHz
    • Memory Information: 256 MB DDR
    • Buttons: (1) Reset
    • Operating Temperature: -10 to 45° C (14 to 113° F)
    • Operating Humidity: 10 to 90% Noncondensing




    Datasheet

    PDF File Ubiquiti Networks UFiber WiFi 4-Port GPON Router with WiFi Gigabit Ethernet 300Mbps 802.11n - UF-WiFi - INTERNATIONAL VERSION
