Ubiquiti U6-LR UniFi 6 Dual Band Long-Range WiFi 6 High-Performance Access Point - INTERNATIONAL VERSION
Product Highlights
Model#: U6-LR
Sku: IT4188
MSRP: $229.99
In Stock
Your Price: $229.99
MODEL: U6-LR - INTERNATIONAL VERSION

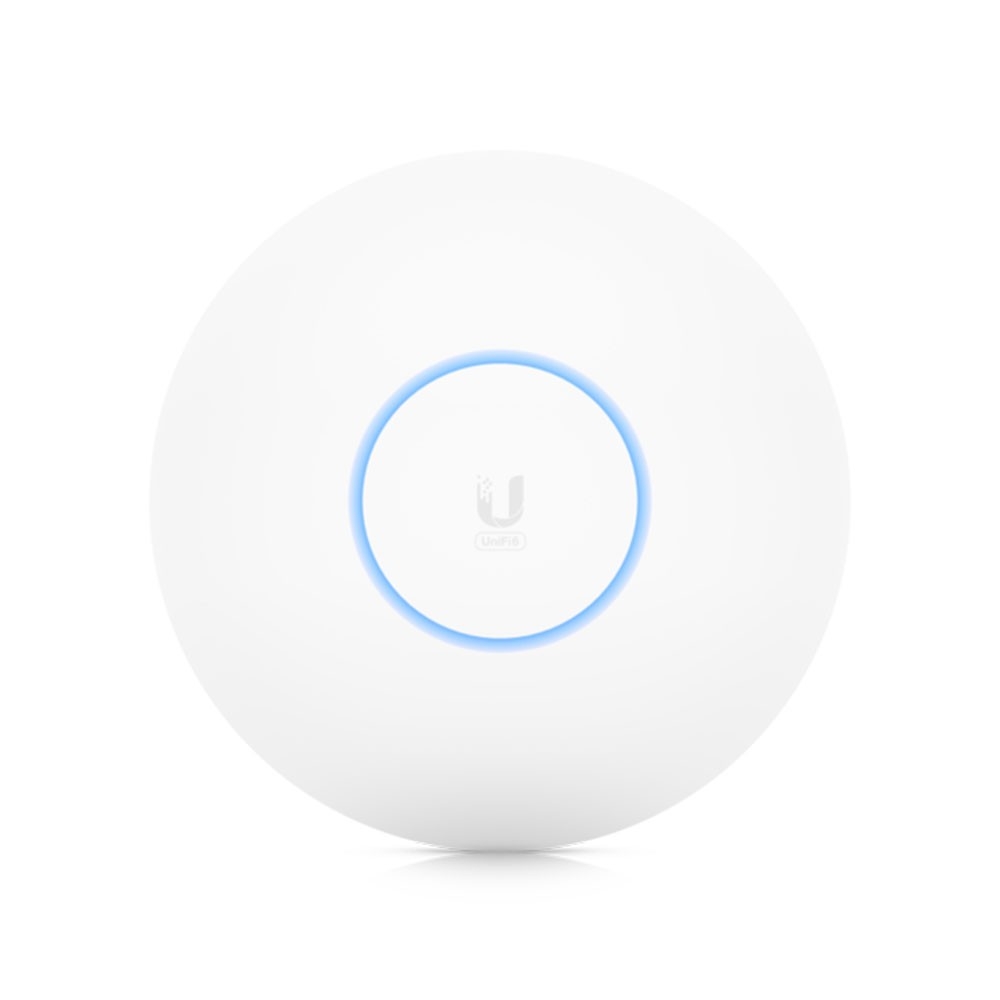

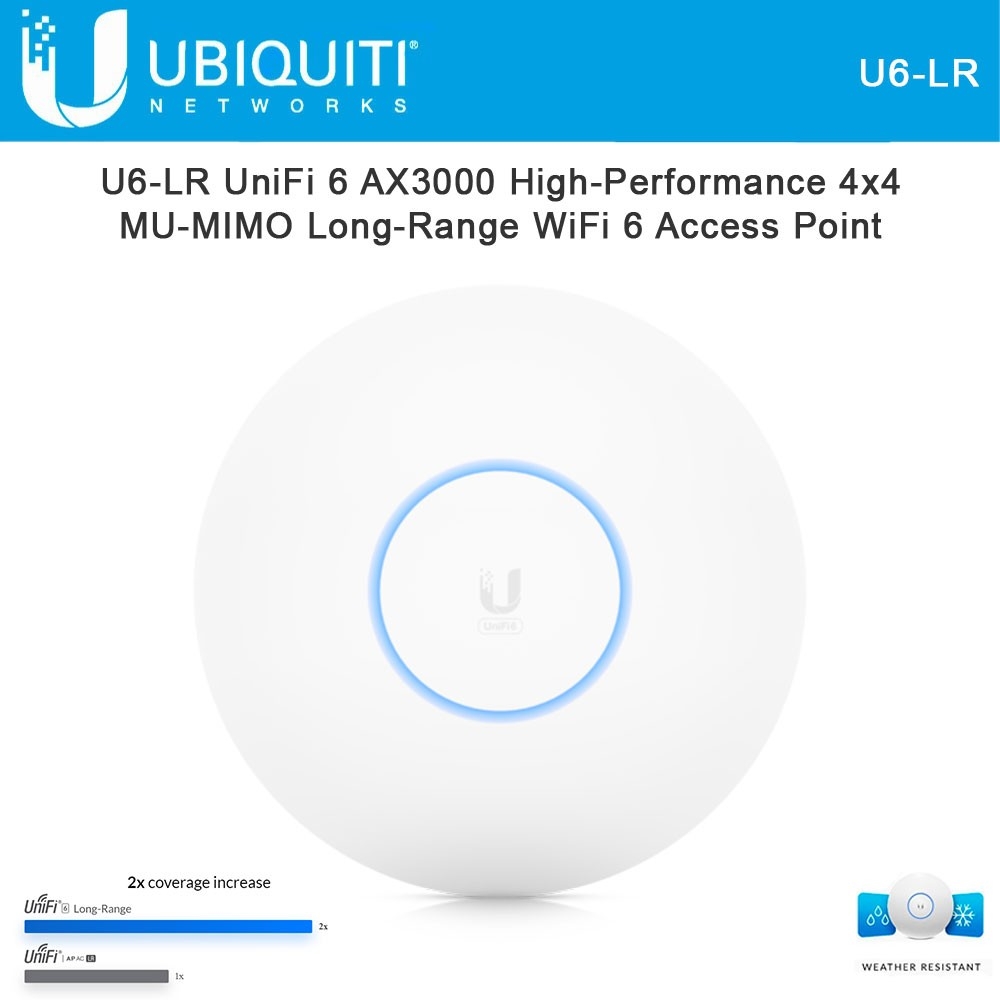

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- Four-stream high-efficiency Wi-Fi 6 technology
- 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- Powered with 802.3at PoE (PoE injector not included)
Managed by UniFi Network Controller version: 6.0.34 or higher
Works with UniFi Network Controller :
-
Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Specifications U6-LR
| MECHANICAL | |
| Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") |
| Weight | Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb) |
| Enclosure Material | Plastic |
| Mounting Material | SGCC Steel |
| Weatherproofing | IP54 |
| HARDWARE | |
| Processor Specs | Dual-Core® Cortex® A53 at 1.35 GHz |
| Memory Information | 512 MB |
| Management Interface | Ethernet In-Band |
| Networking Interface | (1) 1 Gbps Ethernet RJ45 |
| Buttons Factory | Reset |
| LEDs | RGB |
| Power Method | 802.3at PoE, Passive PoE (48V) |
| Power Supply | 802.3at PoE; 48V, 0.65A PoE Adapter (Not Included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 16.5W |
| Max. TX Power 2.4 GHz 5 GHz | 26 dBm 26 dBm |
| MIMO 2.4 GHz 5 GHz | 4 x 4 4 x 4 |
| Throughput Speeds 2.4 GHz 5 GHz | 600 Mbps 2400 Mbps |
| Antenna Gain 2.4 GHz 5 GHz | 4 dBi 5.5 dBi |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| SOFTWARE | |
| Wi-Fi Standards | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Trafc Isolation | Supported |
| Concurrent Clients | 300+ |
| SUPPORTED DATA RATES (MBPS) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
