EP-24V-72W

Ubiquiti

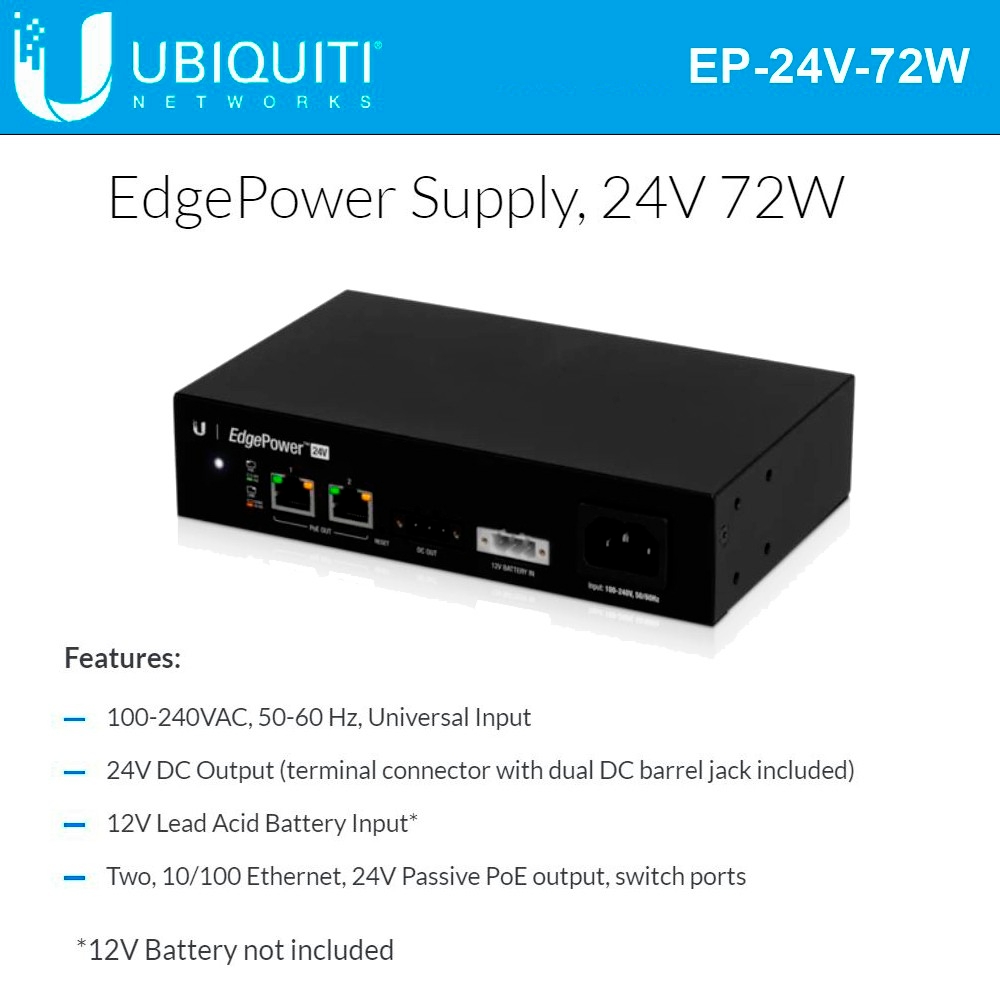

Ubiquiti EdgePower 24V, 72W DC Power Supply with UPS and PoE



Product Highlights
  • 100-240VAC, 50-60 Hz, Universal Input
  • 24V DC Output (terminal connector with dual DC barrel jack included)
  • 12V Lead Acid Battery Input
  • Two, 10/100 Ethernet, 24V Passive PoE output, switch ports
  • Model#: EP-24V-72W

    Sku: IT4187



    MSRP: $181.99

    In Stock

    Your Price: $181.99






    Model: EP-24V-72W

    EdgePower 24V, 72W DC Power Supply with UPS and PoE

    The EdgePower 24V 72W is a UNMS monitored and managed 24V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 24V redundant power supply that includes a management user interface and simple 12V battery backup charger with multiple 24V outputs for small sites.

    Note:*12V Battery Not Included



    SPECIFICATIONS

    Specifications EP-24V-72W

    Dimensions 192 x 43.7 x 115 mm (7.559 x 1.72 x 4.528")
    Weight 650 g (1.43 lb)
    Interfaces Networking Management (2) 10/100 Mbps RJ45 Ports Ethernet In-Band
    PoE Output (2) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) DC Output 24V, 3A
    Power Method AC Input Battery Input 100-240VAC, 50-60 Hz, Universal Input DC Terminal Block
    Power Supply AC Input Battery Input AC/DC 72W 12VDC Lead Acid Battery*
    Max. Power Consumption System Output 2W 72W
    LEDs System RJ45 Data Ports Status PoE; Link/Activity
    ESD/EMP Protection Air: ± 12 kV, Contact: ± 12 kV
    Operating Temperature 0 to 40° C (32 to 104° F)
    Operating Humidity 10 to 90% Noncondensing
    Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti EdgePower 24V, 72W DC Power Supply with UPS and PoE
