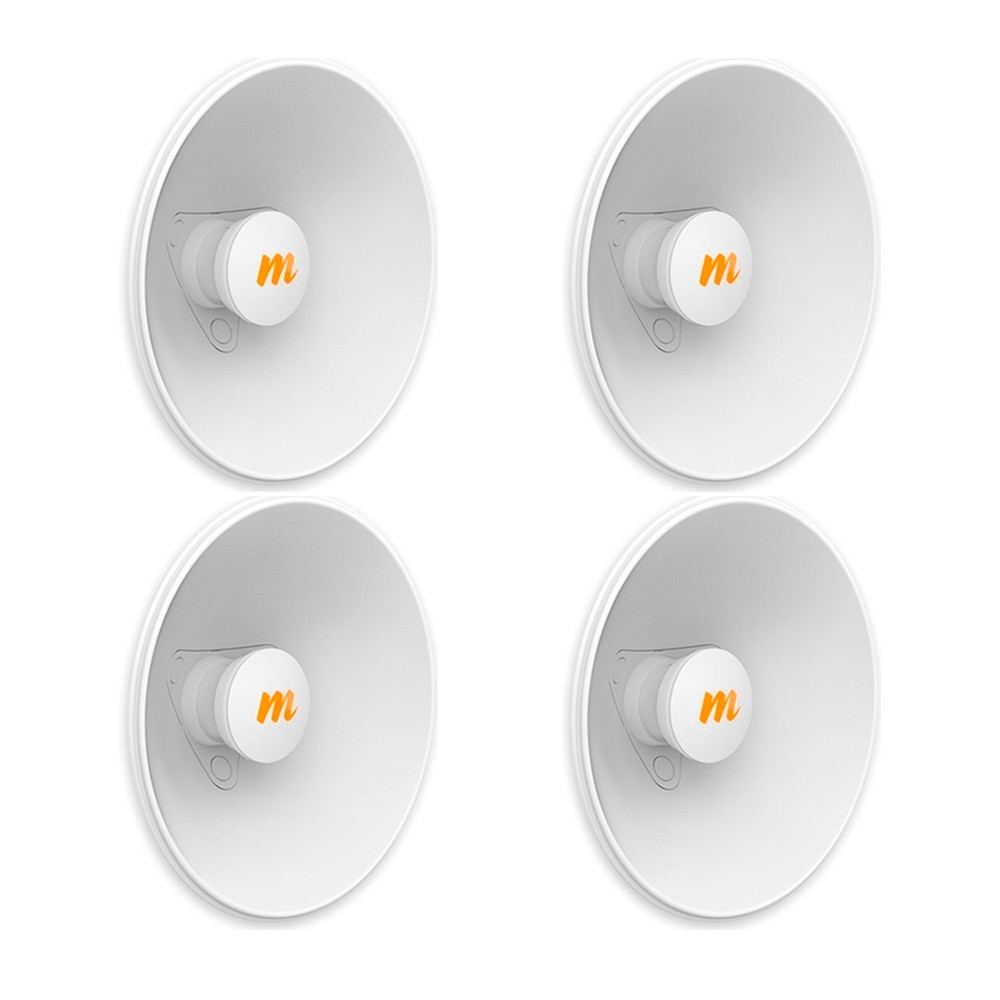

Mimosa Networks N5-X20 4.9-6.4 GHz Modular Twist-on Antenna, 250mm Dish for C5x only, 20 dBi gain 4 PACK
Model#: N5-X20-4PK
Sku: IT4161
Out of stock
Your Price: N/A
N5-X20 4 Packs
- #Part number: 100-00088
The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.
- Product: N5-X20 (dish)
- Gain: 20 dBi
- Polarization Dual-slant 45º
- Beamwidth, Symmetric (3 dB): 12º
- Front-to-Back Ratio (min): 35 dB
- Front-to-Side Ratio (min): 37 dB
- Weight: 0.77 kg (1.70 lbs)
- Dimensions: Diameter:270 mm (10.63”) / Depth:83 mm (3.27”)
- Mount: Mimosa N5-X twist-on
- Wind Survivability: 200 km/h (125 mph)
- Wind Loading:
14.55 @
160 km/h
(32.07 lbs @ 100 mph)
