Mimosa Network

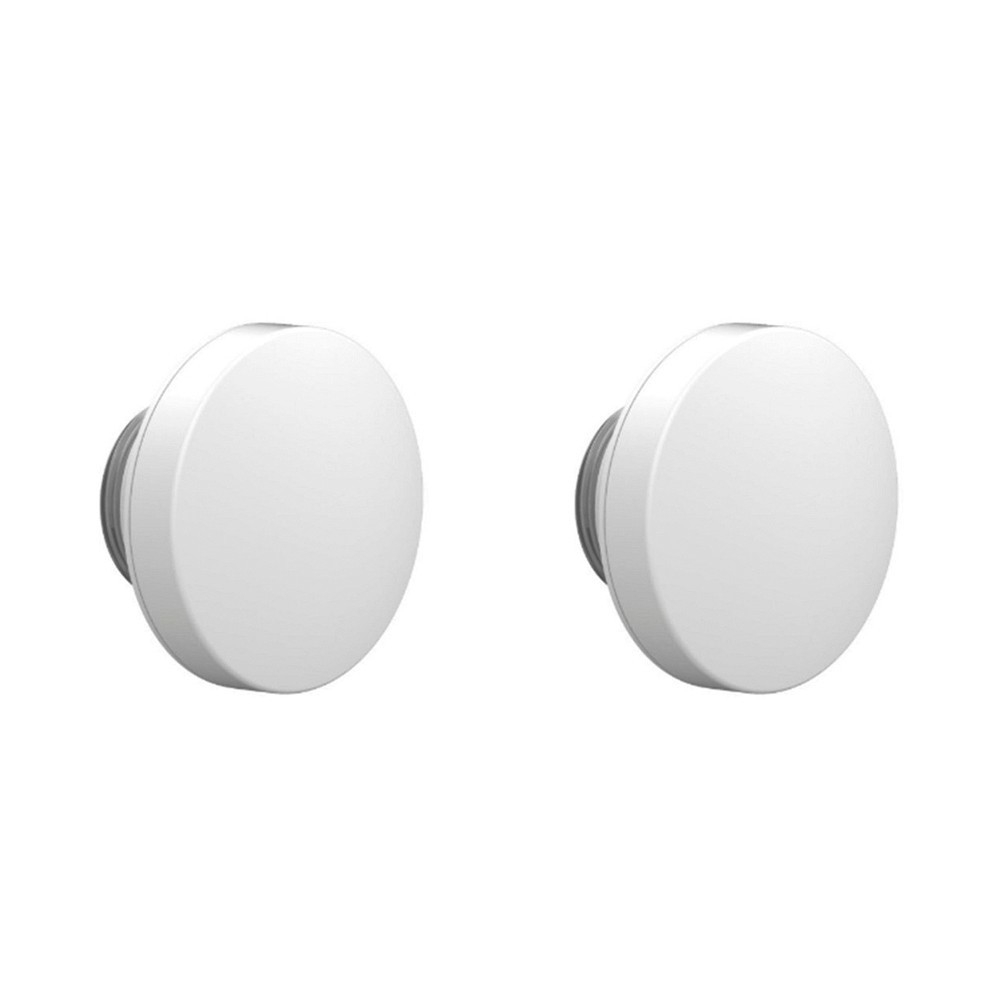

Mimosa Networks N5-X12 2 Packs 4.9-6.4 GHz Modular Twist-on Antenna 70mm Horn for C5x only 12 dBi gain

Model#: N5-X12-2PK

Sku: IT4158

MSRP: $39.99

Out of stock

Your Price: $39.99

N5-X12 (2 Packs)

Modular & Flexible

The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

Incredible RF Performance

Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

Extended Frequency

To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

Design Ultra Rugged

The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.

  • Product N5-X12 (horn)
  • Gain: 12 dBi
  • Polarization Dual-slant: 45º
  • Beamwidth, Symmetric (3 dB): 38º
  • Front-to-Back Ratio (min): 29 dB
  • Front-to-Side Ratio (min): 27 dB
  • Weight: 0.16 kg (0.35 lbs)
  • Dimensions: Diameter:76 mm (2.99”) / Depth: 67 mm (2.63”)
  • Mount: Mimosa N5-X twist-on
  • Wind Survivability: 200 km/h (125 mph)
  • Wind Loading: 3.27 kg @

              160 km/h
              (7.20 lbs @
              100 mph)
