Mimosa Networks FlexiMount XL Mount Your Radios With Ease (100-00092)

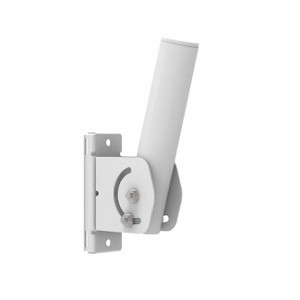

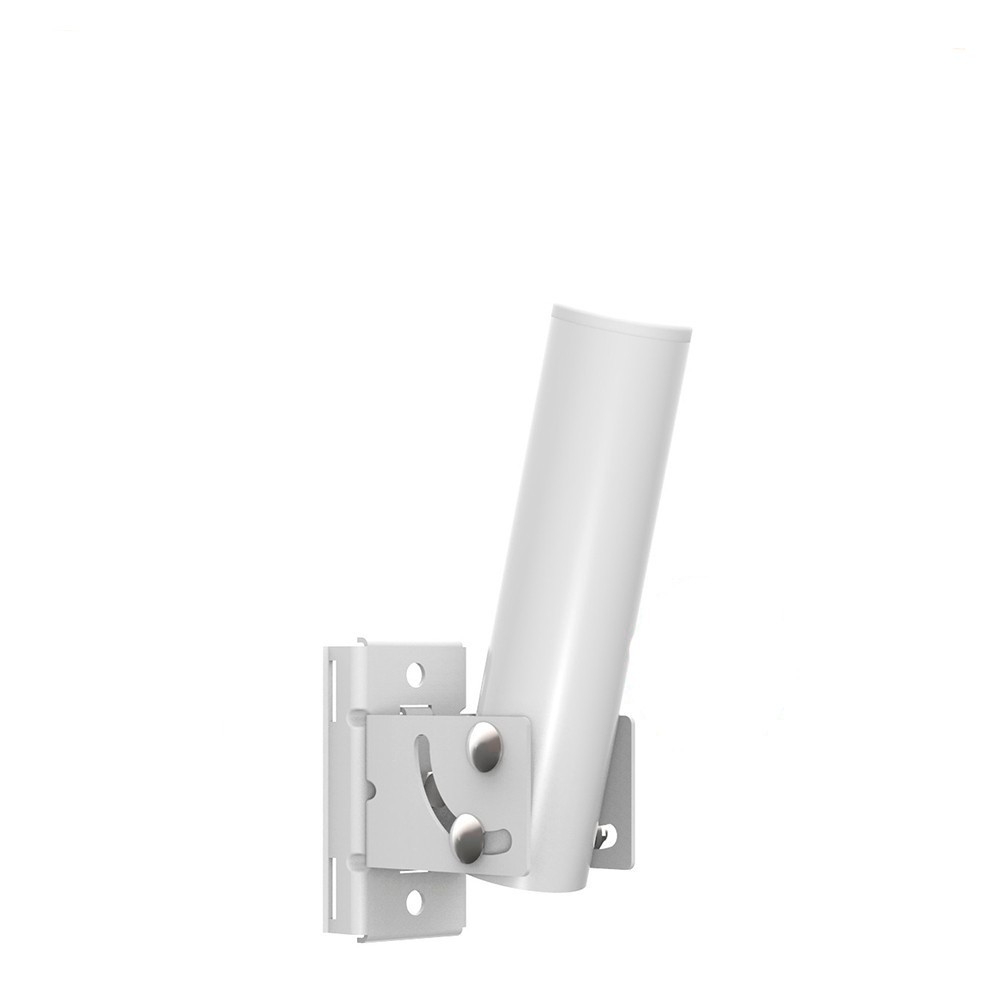

Mimosa FlexiMount XL is a pole and surface mount accessory that accommodates both vertical and horizontal pole mounting applications, as well as basic flat wall mounting where minimizing the distance of the radio, relative to the wall, is important. Compared to the FlexiMount, the FlexiMount XL boasts a stronger, more heavy-duty design, a longer pole length and base, and an increased articulation angle of 180. Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation.
Compatible with C5x + N5-X25 antenna
Suitable for vertical, horizontal, and angled poles, Mimosa’s FlexiMounts are able to be mounted in any orientation.
Mimosa’s FlexiMounts come preassembled, right out out the box. They are ready for any backhaul, access point, or radio to be attached to them.

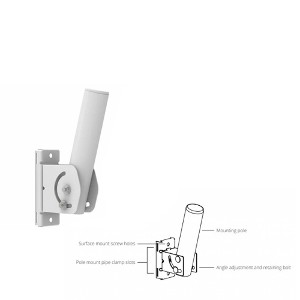

The FlexiMounts come assembled, ready for vertical pole configurations, using the indicated pipe clamp slots in the diagram above.
Angled and Flat Poles
The FlexiMounts can be mounted in any orientation on angled and flat poles. To pivot the articulation direction, rotate the mounting base to the desired orientation.
The FlexiMounts include two (2) convenient mounting screw hole points, allowing mounting to any vertical, sloped or horizontal surface.
