A5x

Mimosa Network

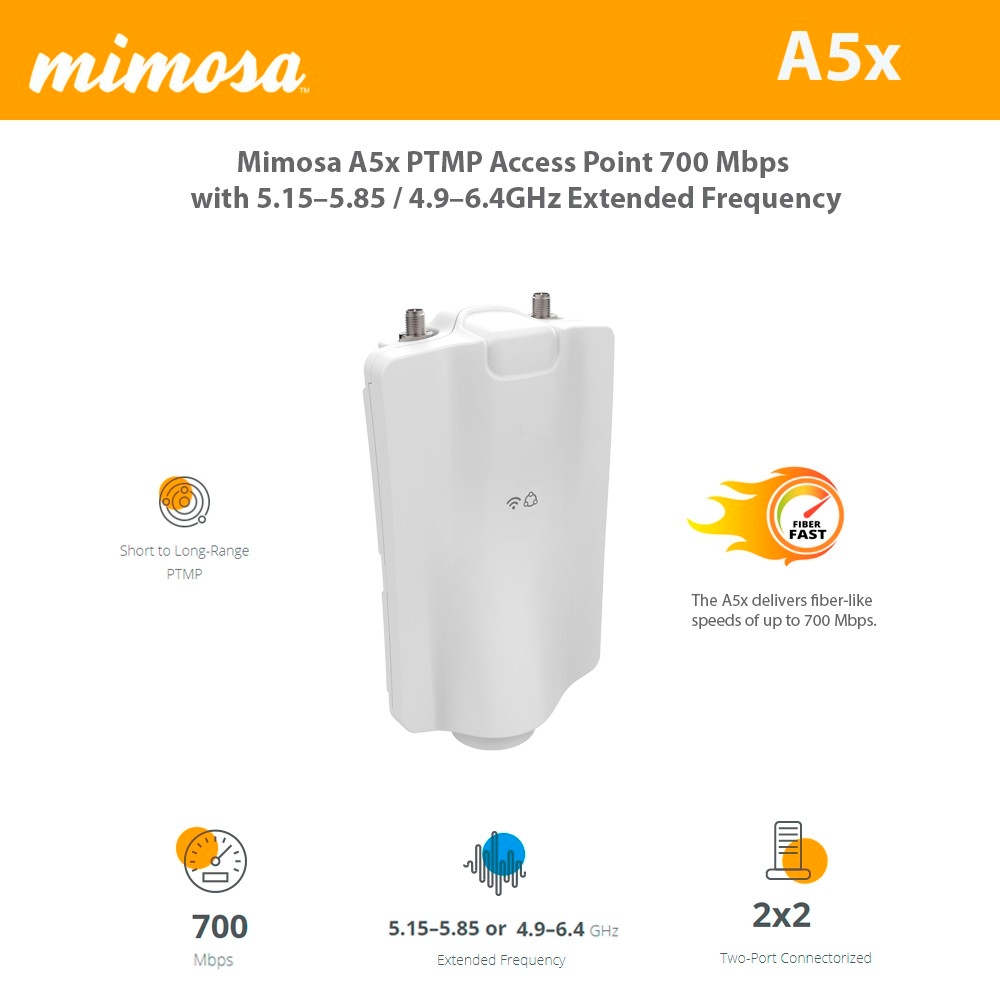

Mimosa A5x PTMP Access Point 700 Mbps with Extended Frequency 4.9 to 6.4


Product Highlights
  • Mimosa A5x PTMP Access Point 700 Mbps with 5.15–5.85 / 4.9–6.4GHz Extended Frequency
  • Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications.
  • Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).
  • With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz with the ROW product) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS
  • The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.

    • Model#: A5x

    Sku: IT4149



    MSRP: $299.00

    In Stock

    Your Price: $279.99






    SKU: A5x

    Mimosa A5x PTMP Access Point 700 Mbps with 5.15–5.85 / 4.9–6.4GHz Extended Frequency

    Mimosa A5x PTMP 4x4 Access Point is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP). With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse. The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.

    Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications. In situations where the power and range of the 4x4 A5c access point isn't needed, the connectorized, 2x2 A5x is the perfect solution.



    • PTMP at a Fraction of the Cost

    Finding the right access points that offer affordability, without compromising quality and performance, has been a dilemma. The A5x changes that. It's the ideal solution whether you're starting a new network or expanding coverage, all while achieving faster ROI.



    • It's Fast

    Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).

    • Get Around the Noise

    With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz with the ROW product) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.

    • Ultra-Rugged

    The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.



    • Performance

    • Max Throughput: Up to 700 Mbps (IP)
    • Client Capacity
        64 clients (WiFi Interop);
        44 clients (SRS/GPS sync)
    • Wireless Protocols: WiFi Interop, Spectrum Reuse Synchronization (SRS/GPS sync)


    • Radio

    • MIMO & Modulation: 2x2:2 MIMO OFDM up to MCS9 (256-QAM)
    • Bandwidth: 20/40/80 MHz channels; Tunable in 5 MHz increments for GPS Sync; Tunable to standard WiFi channels for WiFi Interop
    • Frequency Range: 4900–6400 MHz (restricted by country of operation)
    • Max Output Power: 27 dBm
    • Sensitivity (MCS 0):
        -87 dBm @ 80 MHz
        -90 dBm @ 40 MHz
        -93 dBm @ 20 MH


    • Power

    • Max Power Consumption: 9–12.9 W
    • System Power Method: Passive PoE (24–56VDC)
    • System Lightning & ESD Protection: 6kV
    • PoE Power Supply: Passive POE compliant, 24–56VDC (PoE injector not included)


    • Physical

        Height: 188.4 mm (7.42” including IP67 Ethernet gland)
        Width: 75 mm (2.56”)
        Depth: 44 mm (3.35”)
    • Weight: 0.30 kg (0.70 lbs)
    • Enclosure Characteristics: Outdoor UV-stabilized engineered polymer with integrated mounting back
    • Mounting: Single pole strap and slip on mount for comparable antennas
    • Connector Type: (2) RP-SMA


    • Environmental:

    • Outdoor Ingress Protection Rating: IP67
    • Operating Temperature: -40°C to +55°C (-40°F to 131°F)
    • Operating Humidity: 5 to 100% condensing
    • Operating Altitude: 4,420 m (14,500’) maximum
    • Shock & Vibration: ETS 300-019-2-4 class 4M5


    • Specifications:

    • Gigabit Ethernet: 10/100/1000-BASE-T
    • Collocation Synchronization: 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio
    • Management Services: Cloud monitoring and provisioning; SNMPv2c/v3; Syslog; HTTPS; HTML 5 based Web GUI; REST API for monitoring and configuration; IPv4 and IPv6
    • Smart Spectrum Management: Active scan monitors/logs ongoing RF interference across channels (no service impact); Dynamic auto-optimization of channel and bandwidth use
    • Security: WPA2; AES; RADIUS; 802.1x authorization
    • VLANs: Per SSID VLANs (IEEE 802.1Q)
    • QoS: Supports 4 user-configurable QoS levels for SRS (GPS Sync) (CBWFQ); Behavior Aggregate (BA) and CoS Classifier, with user-configurable precedence
    • GPS Location: GNSS1 (GPS + GLONASS)


    • Product Includes:

    (1) Mimosa A5x Radio
    (1) User Manual
