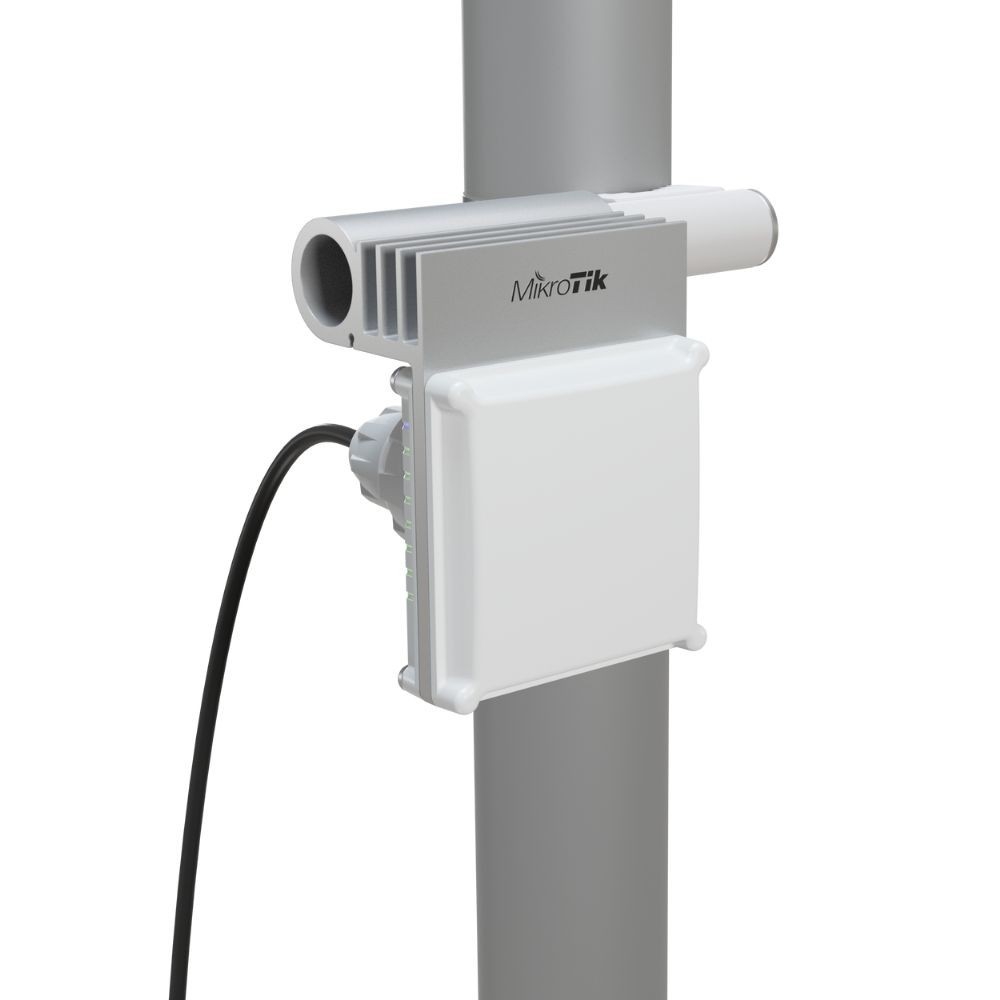

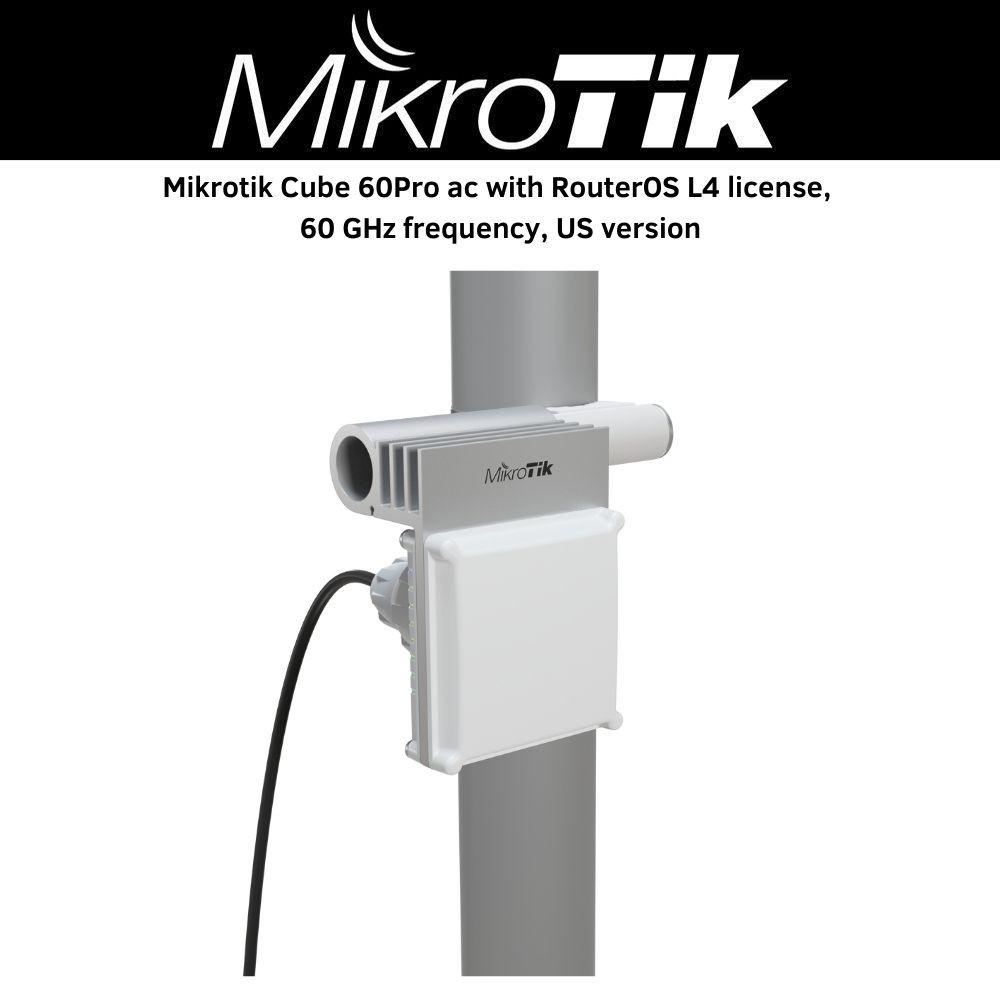

MikroTik CubeG-5ac60ay-US 5GHz Cube 60Pro ac CPE 802.11ay US

Product Highlights
  • 5 GHz failover
  • Gigabit Ethernet
  • Powerful quad-core CPU
  • Reach greater distance then ever with channel 5 support
  • Improved design and mounting options
  • Model#: CubeG-5ac60ay-US

    Sku: IT4147

    MSRP: $149.99

    In Stock

    Your Price: $149.99

    SKU: CubeG-5ac60ay-US


    Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

    If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

    The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.


    Product code:   CubeG-5ac60ay-SA
    Architecture:    ARM 32bit
    CPU:    IPQ-4019
    CPU core count:    4
    CPU nominal frequency:    716 MHz
    Dimensions:    115 x 211 x 90 mm
    RouterOS license:    4
    Operating System:    RouterOS
    Size of RAM:    256 MB
    Storage size:    64 MB
    Storage type:   FLASH
    MTBF:    Approximately 200'000 hours at 25C
    Tested ambient temperature:    -40°C to 70°C


    Number of DC inputs:    1 (PoE-IN)
    Max power consumption:    13 W
    Cooling type:    Passive
    PoE in:    802.3af/at
    PoE in input Voltage:    18-48 V

    Wireless specifications

    Wireless 5 GHz Max data rate:    433 Mbit/s
    Wireless 5 GHz number of chains:    1
    Wireless 5 GHz standards:    802.11a/n/ac
    Antenna gain dBi for 5 GHz:    11.5
    Wireless 5 GHz chip model:    IPQ4019
    Wireless 5 GHz generation:    Wi-Fi 5


    10/100/1000 Ethernet ports:    1


    GNSS standards:    GPS

    Certification & Approvals

    Certification:    CE, FCC, IC, EAC, ROHS
    IP:    IP54

    Wireless specifications

    5 GHz                   Transmit (dBm)                      Receive Sensitivity
    6MBit/s                  22                                            -93
    54MBit/s                18                                            -74
    MCS0                    22                                            -93
    MCS7                    17                                            -71
    MCS9                    15                                            -68


    PDF File MikroTik CubeG-5ac60ay-US 5GHz Cube 60Pro ac CPE 802.11ay US
