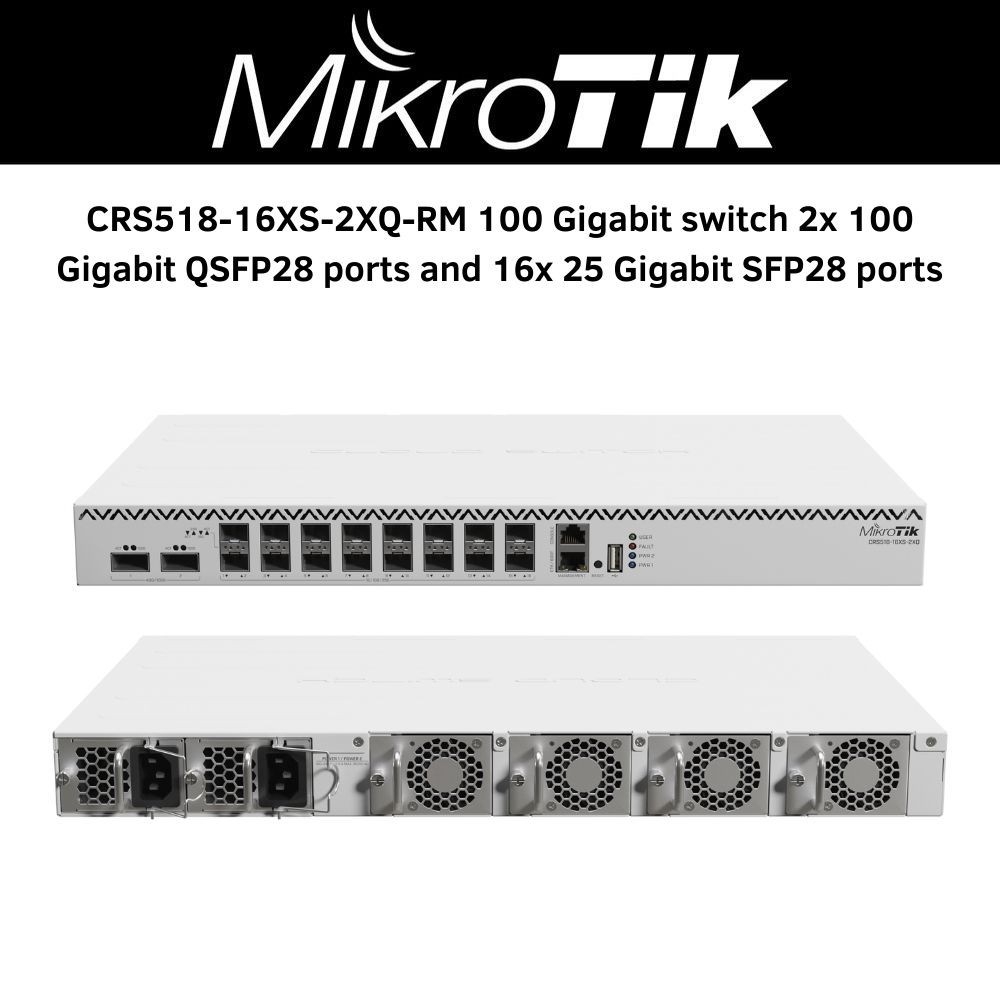

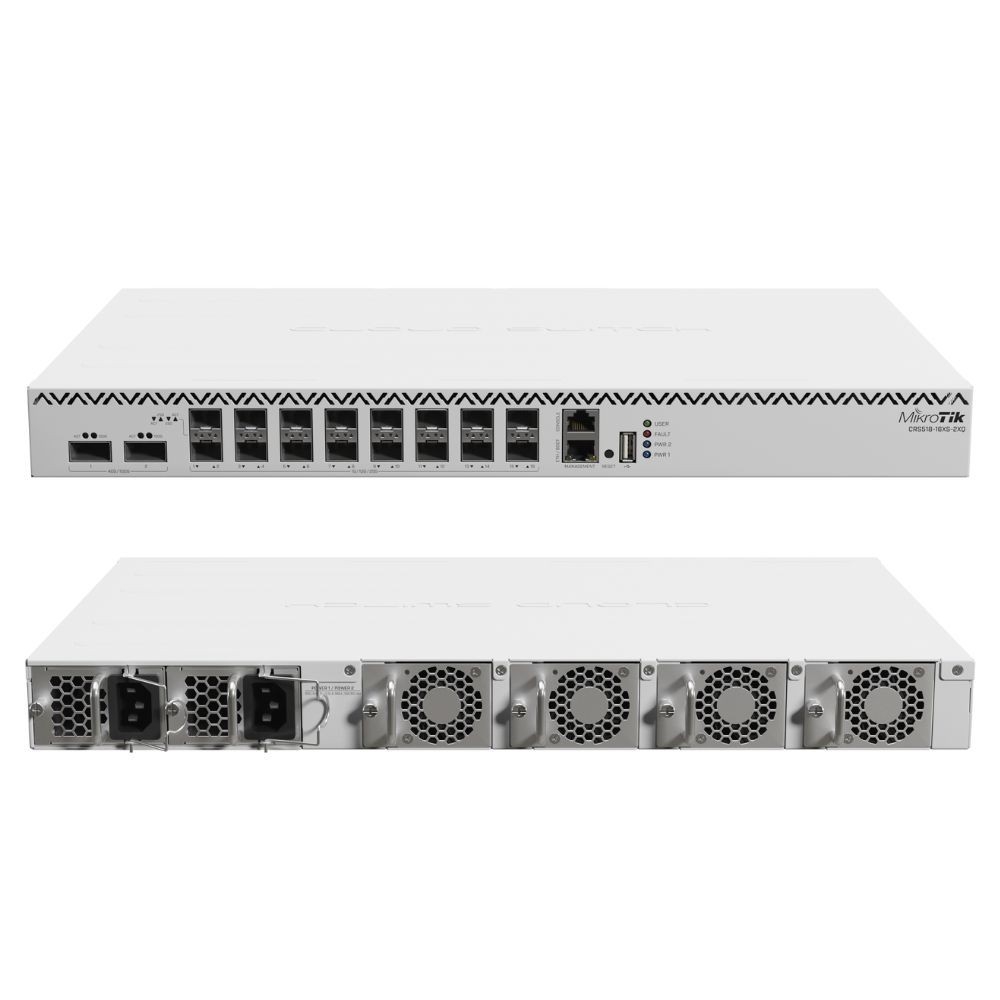

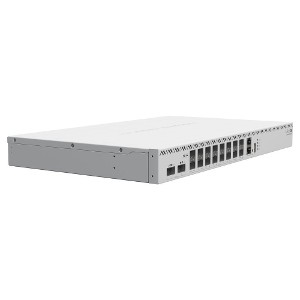

As our 100 Gigabit product family grows, the time has come to introduce a serious enterprise-level switch. A switch that is up for the challenge when the CRS504 port density is just not enough. Introducing the spectacular CRS518-16XS-2XQ!
With 2x 100 Gigabit QSFP28 ports and 16x 25 Gigabit SFP28 ports, this is the perfect cost-effective addition to any enterprise network or data center. And with dual-redundant hot-swappable power supplies and fans, you won’t have to worry about unnecessary downtime.
Here’s a real-life setup – similar to the one we’re using in our office:
At the top, you could place two flagship CCR2216 routers to provide the main connectivity and routing. Then a blazing-fast 100 Gigabit connection leads to three CRS518 distribution level switches. This is where all the magic happens. The CRS518 switches connect every access level device to the main network, deal with traffic filtering, and network policy enforcement. And they handle all that with grace and dignity – thanks to the fantastic Marvell Prestera Aldrin2 switch-chip. The same chip you’ve seen in our flagship CCR2216 that did wonders with L3 Hardware Offloading.
The 25-gigabit ports are backward compatible with 10 Gigabit and 1 Gigabit SFP devices. Mix and match as you need!
The two hot-swap power supplies support a high input voltage range: 100-240V. The board itself uses up to 45W of power, while the total maximum power consumption goes up to 77W with all the attachments. It can be a bit more power-hungry than the CRS504, but you would be too if you had 16x 25-Gigabit ports, wouldn’t you?
Our 100 Gigabit product family keeps growing: switches, routers, cables, and QSFP28 modules. If you want real speed and ultimate flexibility for the best price on the market – you want MikroTik!
Product code: CRS518-16XS-2XQ-RM
CPU core count: 1
CPU nominal frequency: 650 MHz
RouterOS license: 6
Operating System: RouterOS (v7 only)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Number of AC inputs: 2
AC input range: 100-240
Frequency (Hz): 47-63
Max power consumption: 95 W
Max power consumption without attachments: 45 W
Cooling type: 4 fans
10/100 Ethernet ports: 1
Number of 25G SFP28 ports: 16
Number of 100G QSFP28 ports: 2
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage Monitor: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
