TL-SL1218P

TP-Link

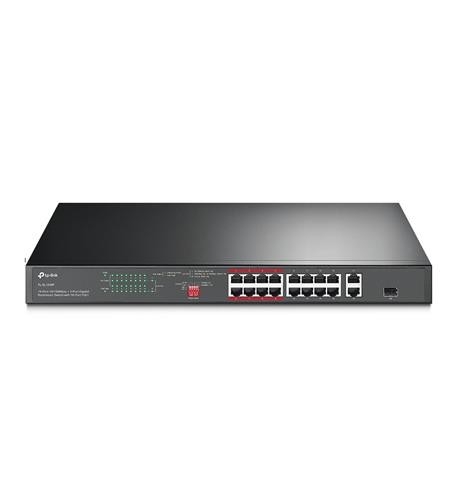

TP Link TL-SL1218P 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+



Product Highlights
  • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot.
  • High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.*
  • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.**
  • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
  • Isolation Mode allows one-click client traffic separation for higher security and performance.
  • Model#: TL-SL1218P

    Sku: IT4140

    Out of stock

    Your Price: N/A


    SKU: TL-SL1218P

    16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

    Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications

    Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

    Priority Video Quality Guaranteed

    Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

    One-Click Traffic Separation for Ports 1-16

    With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

    Smooth HD Video Monitoring

    2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

    Intelligent Power Management to Prevent Power Overload

    When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

    Wide Operating Temperature with Good Heat Dissipation

    Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50?) with reliability.

    Multiple Application Scenarios

    The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

    SPECIFICATIONS

    Specifications TL-SL1218P

    HARDWARE FEATURES
    Interface • 16× PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
    Fan Quantity 2 Fans
    Physical Security Lock Yes
    Power Supply 100–240V AC, 50/60 Hz
    PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W
    Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

    Weight 6.08 lb
    Max Power Consumption • 12.7 W (no power device connected) • 172.8 W (with 150W power devices connected)
    Max Heat Dissipation • 43.3 BTU/h (no power device connected) • 589.3 BTU/h (with 150W power devices connected)
    PERFORMANCE
    Switching Capacity 7.2 Gbps
    Packet Forwarding Rate 5.36 Mpps
    MAC Address Table 8K
    Jumbo Frame 10 KB
    SOFTWARE FEATURES
    Advanced Features • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control
    Transmission Method Store-And-Forward
    OTHERS
    Certification CE, FCC, RoHS
    Environment
    Operating Temperature 0–50 °C (32–122 °F)
    Storage Temperature -40–70 °C (-40–158 °F)
    Operating Humidity 10–90% RH non-condensing
    Storage Humidity 5–90% RH non-condensing
