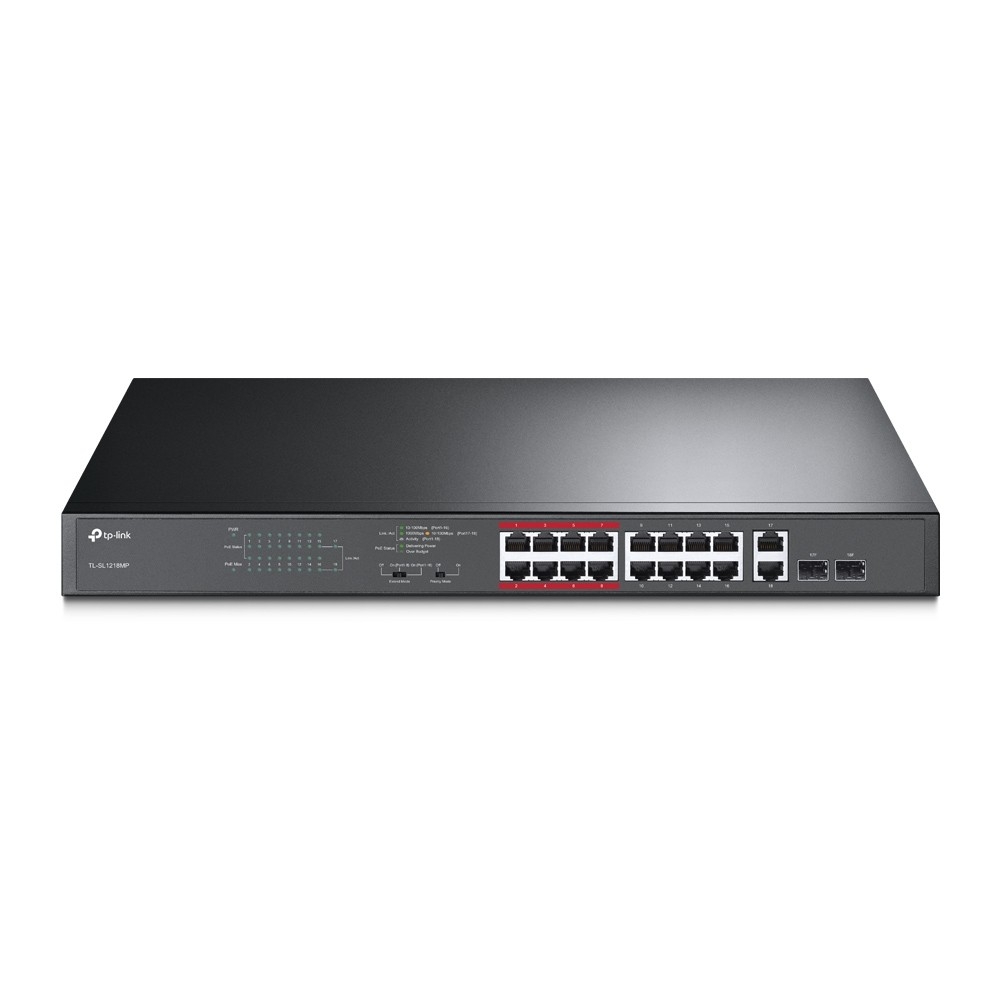

TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch With 16-Port PoE+

Product Highlights
  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
  • Easy to use, with no configuration and installation needed
  • Model#: TL-SL1218MP

    Sku: IT4135

    MSRP: $189.99

    Out of stock

    Your Price: $189.99

    SKU: TL-SL1218MP

    16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

    High PoE Power Budget

    TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

    Up to 250m Transmission for Surveillance

    TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m* which makes it perfect for IP Camera deployment in large area coverage.

    Video Quality Guaranteed

    Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

    Easy to Use

    • Plug & play, no configuration required
    • Auto MDI/MDIX eliminates the need for crossover cables
    • Auto-negotiation intelligently adjusts for compatibility and optimal performance

    Specifications TL-SL1218MP

    Interfaces 16 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Gigabit SFP Slots
    PoE Standard 802.3af/at
    PoE Ports 16, up to 30W
    PoE Power Budget 192W
    Switching Capacity 7.2Gbps
    Packet Forwarding Rate 5.36Mpps
    MAC Address Table 8K
    Packet Buffer 4.1Mbit
    Jumbo Frame 10KB
    Physical & Environment
    Power Supply 100-240V AC, 50/60Hz
    Max Power Consumption 217.22W (with 192W PD Connected) 18.73W (no PD Connected)
    Max Heat Dissipation 741.15 BTU/h (with 192W PD Connected) 63.91 BTU/h (no PD Connected)
    Dimensions (W × D × H) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
    Fan Quantity 2
    Operating Temperature 0°C~40°C (32°F~104°F)
    Storage Temperature -40°C~70°C (-40°F~158°F)
    Operating Humidity 10%~90%RH non-condensing
    Storage Humidity 5%~90%RH non-condensing
    Certification CE, FCC
