SKU: UVC-G4-Dome

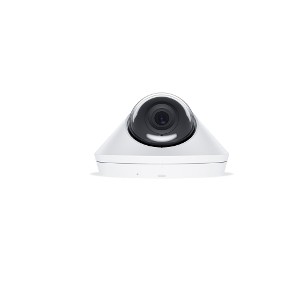

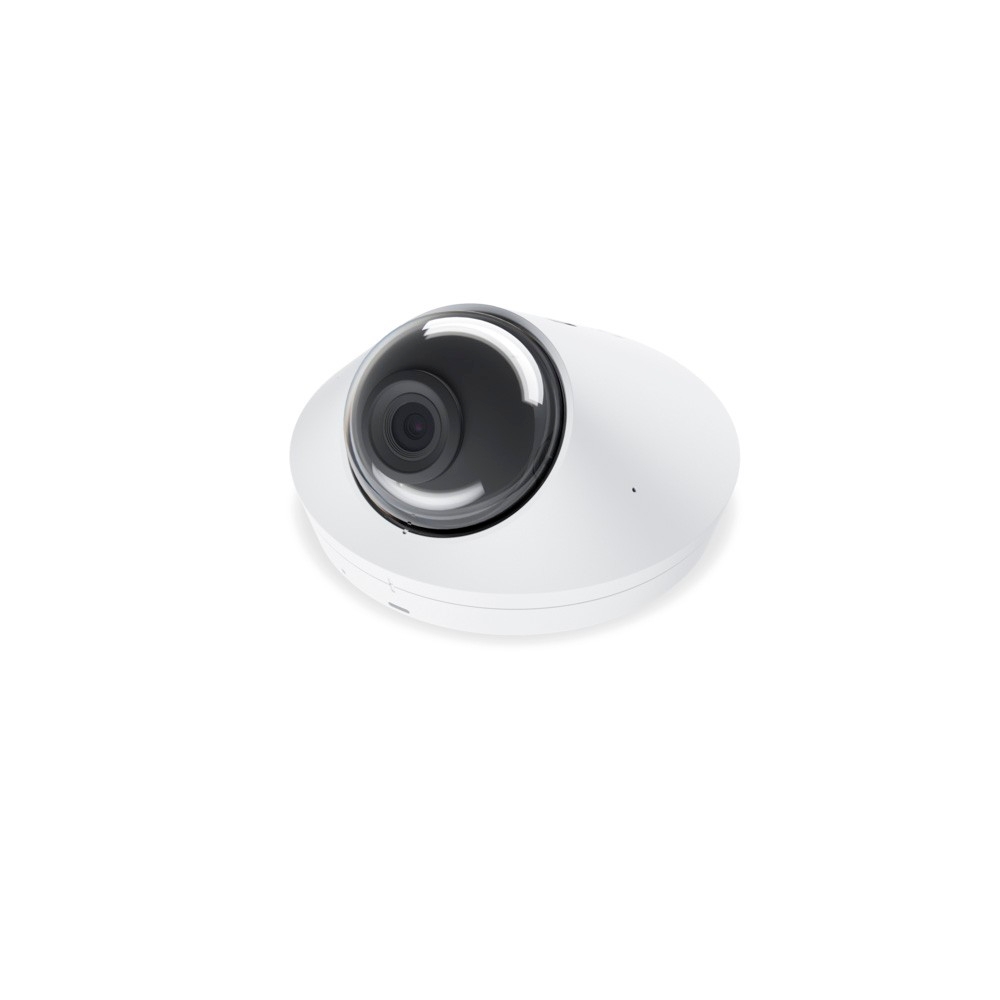

Ubiquiti UniFi Protect G4 Dome Camera UVC-G4-Dome
Compact 4MP vandal-resistant (IK08) and weatherproof (IPx4) dome camera with integrated IR LEDs for crystal clear day and night vision.
The UniFi G4 Series 4MP Dome Camera from Ubiquiti Networks. This unit uses a CMOS sensor to capture 2688 x 1512 resolution at 24 fps. The camera features IR LED illumination for visibility in low-light conditions, a fixed lens that delivers an 86° horizontal field of view, and a built-in microphone and speaker for two-way audio. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi Protect app for iOS and Android enables remote management.
This camera is housed in an IPX4- and IK08-rated enclosure for protection from water and impact.
Mechanical
- Dimensions: Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
- Weight Without Mount: 370 g (13.05 oz)
- With Mount: 390 g (13.76 oz)
- Enclosure Material: Aluminum Alloy, Polycarbonate, Hard-Coated Dome
- Mounting Materials: Polycarbonate, Stainless Steel
- Weatherproofing: IPX4
- Resistance: IK08
Optics
- Sensor: 5 MP CMOS Sensor
- Lens: Fixed Focal Length
- View Angle: H:102.4°, V:71.4°, D:134.3°
- Night Mode: Built-in Light Sensor
- Built-in IR LED Illumination and IR Cut Filter
Video
- Video Compression: H.264
- Resolution: 2688 x 1512 (16:9)
- Maximum Frame Rate: 24 FPS
- Image Settings: Brightness, Contrast, Sharpness, Saturation, Noise Reduction, 50/60 Hz
System
- Processor Specs Ambarella Advanced Image Processing SoC
- Memory Information: 512 MB
- Management Interface: UniFi Protect
- Networking Interface: RJ45, 10/100/1000 Mbps Ethernet
- Flash Memory Support: 256 MB
- Max. Power Consumption: 5W
- Power Method: 802.3af PoE, 44-57VDC, 0.114-0.088A
- Supported Voltage Range: 44-57VDC
- Link/Activity LED: Yes
- Button: Factory Reset
- Operating Temperature: -20 to 40° C (-4 to 104° F)
- Operating Humidity: 0 to 90% Noncondensing
- Certifications: FCC, IC, CE
Audio
- Microphone: Yes (Can be Disabled in Software)
- Speaker: Yes
Software
- Controller Software: UniFi Protect
- Mobile Apps: UniFi Protect iOS and Android
Datasheet
