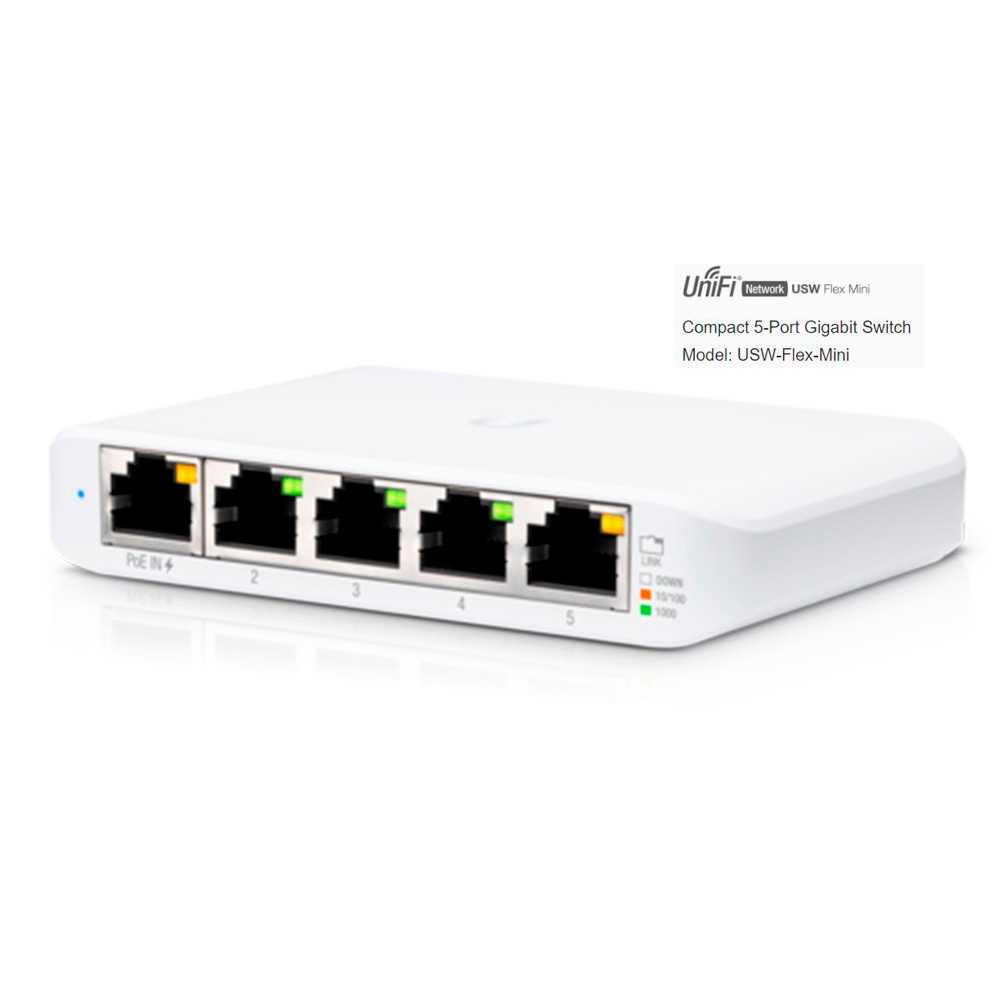

Ubiquiti Networks USW-Flex-Mini UniFi Switch Flex Mini

Product Highlights
  • Compact 5-Port Gigabit Switch
  • Powered by 802.3af/at PoE or USB Type C
  • Compact Desktop Footprint
  • Energy-Efficient Design
  • 5V, 1A USB-C power adapter included
  • Model#: USW-Flex-Mini

    Sku: IT4090

    MSRP: $39.99

    In Stock

    Your Price: $39.99

    SKY: USW-Flex-Mini

    5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

    Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

    Compact Desktop Design

    The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

    Copper Connectivity

    Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

    Efficient Use of Energy

    The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter*.

    Switching Performance

    The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.


    Specifications USW-Flex-Mini

    Dimensions 107.16 x 70.15 x 21.17 mm
    (4.22 x 2.76 x 0.83")
    Weight 150 g
    (5.29 oz)
    Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports
    PoE In Interface 802.3af/at PoE (Pins 1, 2+; 3, 6-)
    Max. Power Consumption 2.5W
    Power Method USB Type C, 5V
    802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
    Power Supply 5V, 1A Power Adapter*
    Voltage Range
    USB Type C
    802.3af/at PoE
    4.7 - 5.2VDC
    44 - 57VDC
    RJ45 Data Ports
    ESD/EMP Protection ± 16kV Air, ± 12kV Contact
    Operating Temperature -5 to 45° C (23 to 113° F)
    Operating Humidity 10 to 90% Noncondensing
    Certifications CE, FCC, IC


    PDF File Ubiquiti Networks USW-Flex-Mini UniFi Switch Flex Mini
