Ubiquiti Networks UBB-US UniFi Building-to-Building 60GHz US



Product Highlights
  • The UniFi Building-to-Building Bridge, model UBB, is the ideal solution for high-throughput connectivity with a range of up to 500 m.
  • Integration with the UniFi Controller makes bridging two networks seamless.

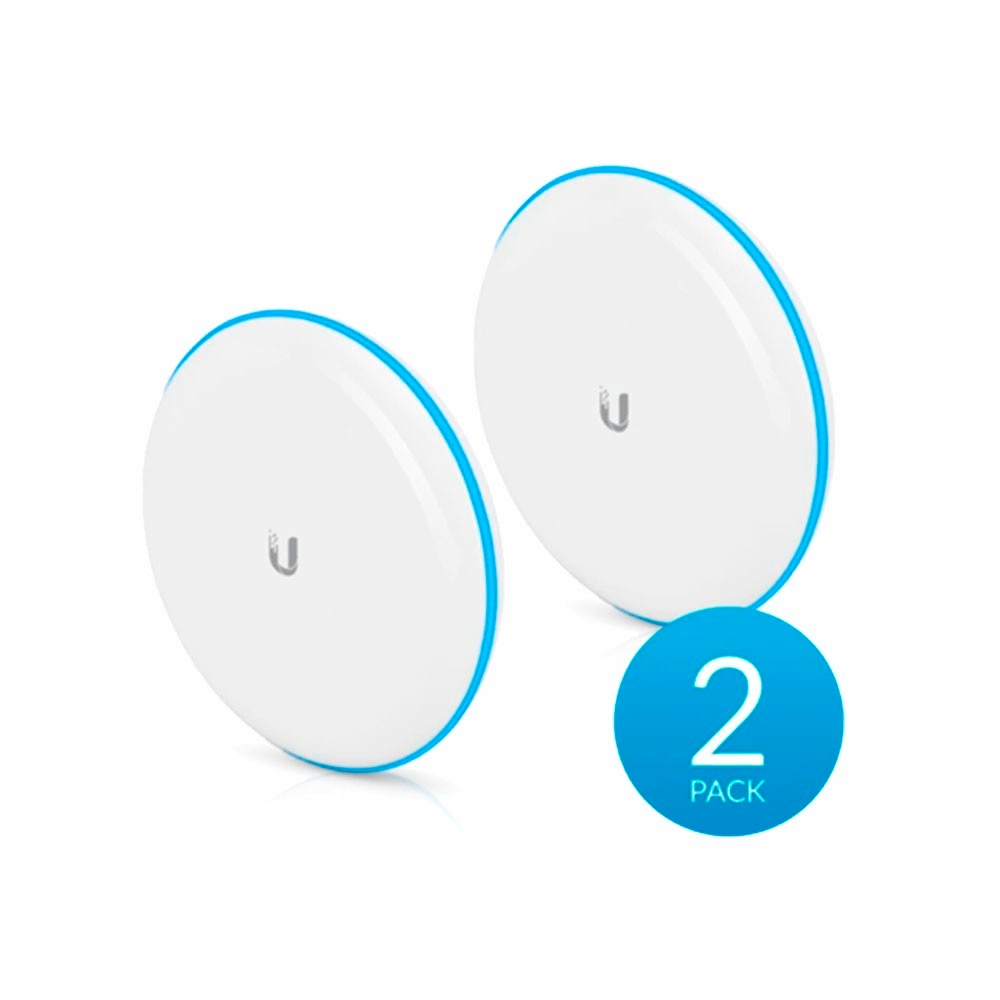

  • Comprised of two pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1.7+ Gbps bi-directional – using 802.11ad technology on the low-interference 60 GHz radio band.
  • For backup, a 5 GHz radio using 802.11ac technology is available.
  • The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.
  • Model#: UBB-US

    Sku: IT4088



    MSRP: $572.99

    In Stock

    Your Price: $572.99






    Model: UBB -US

                                               UniFi Building-to-Building Bridge
                                      60GHz Radio Band Gigabit+ Wireless Bridge Kit

    The UniFi Building-to-Building Bridge, model UBB, is the ideal solution for high-throughput connectivity with a range of up to 500 m. Integration with the UniFi Controller makes bridging two networks seamless.

    Comprised of two pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1.7+ Gbps bi-directional – using 802.11ad technology on the low-interference 60 GHz radio band. For backup, a 5 GHz radio using 802.11ac technology is available.

    • 60 GHz Operating Frequency

    The 60 GHz band attenuates quickly due to atmospheric absorption. When a 60 GHz radio – such as the UBB – uses a highly directional antenna, inteference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.

    • Wireless Link Redundancy

    60 GHz is highly directional and any obstacle in the line of sight – even rain – can drop signal levels.

    To maintain connectivity, the UBB can fail over to the 5 GHz radio. The 5 GHz radio band propagates better and uses radio wave reflections and refractions more effectively, although it offers lower maximum throughput.

    • Pre-Paired Configuration

    Setup is quick and easy: the UBB radios are pre-paired out of the box so you can use the UniFi app for simultaneous adoption. The UniFi Controller software enables intuitive management of individual UniFi devices and site wide deployments.

    • Sleek Industrial Design

    The UBB is designed with a compact form factor for discreet integration into any environment.

    • Convenient Alignment

    The UBB pivots on its ball joint 3-axis mount for easy aiming.

    • Mounting Versatility

    No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. A wall mount kit, model NBE-WMK, is available as an optional accessory to enhance stability.

    • Scalable UniFi Network Controller

    Management Capabilities

    The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

    Network Overview

    From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

    Deep Packet Inspection

    Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

    Detailed Analytics

    The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

    Multi-Site Management

    A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

    RF Environment
    Detect and troubleshoot nearby interference, analyze radio frequencies, and choose optimal AP placement. The auto-optimize feature configures the UBB with best practice settings, and the included radio AI capability optimizes channel selection using a genetic algorithm.

    Advanced RF Performance

    RF performance and configuration features include spectral analysis, airtime fairness, band steering, and cell-size tuning.

    LAN/WLAN Groups

    Create multiple LAN and WLAN groups and assign them to the respective UniFi devices and VLAN tags.

    Predictive Maps

    Upload a map or use Google Maps to represent the areas where your UniFi devices are located. Use the predictive map feature to get a preview of coverage, and to help you avoid dead spots.

    Wireless Uplink

    Wireless Uplink functionality enables wireless connectivity between APs for extended range, wireless adoption of APs in their default state, and real-time changes to network topology.

    Guest Portal/Hotspot

    Configure custom settings, including authentication, Hotspot setup, and the option to use your own external portal server.

    Model: UBB-US

    • Dimensions: 140 x 140 x 90 mm (5.51 x 5.51 x 3.54")
    • Weight: 376 g (13.3 oz)
    • Antenna Gain
    • 2.4 GHz (BLE): 2 dBi
    • 5 GHz: 10 dBi
    • 60 GHz: 17.2 dBi
    • GPS: Yes
    • Max. TX Power (EIRP)
    • 5 GHz: 25 dBm
    • 60 GHz: 32 - 36.5dBm
    • 60 GHz Elevation Beamwidth: 30°
    • 60 GHz Azimuthal Coverage: ±60°
    • Interfaces
    • Networking: (1) 10/100/1000 Ethernet Port
    • Management: Bluetooth
    • Enclosure: UV-Resistant Polycarbonate
    • Power Method: 802.3af Supported Passive Power over Ethernet (48V)
    • Power Supply: UniFi PoE Switch 48V, 0.32A Gigabit PoE Adapter (Included)
    • Max Power Consumption: 11W
    • Wind Loading: 56 N @ 200 km/h (12.6 lbf @ 125 mph)
    • Wind Survivability: 200 km/h (125 mph)
    • Mounting: Pole-Mount (Kit Included) / Wall-Mount (Not Included)
    • ESD/EMP Protection: ± 24kV Contact/Air
    • Operating Temperature: -40 to 60° C (-40 to 140° F)
    • Operating Humidity: 5 to 95% Noncondensing


    Datasheet

    PDF File Ubiquiti Networks UBB-US UniFi Building-to-Building 60GHz US
