Ubiquiti USP-Strip-US SmartPower Strip (6 ports)
Model#: USP-Strip-US
Sku: IT4086
MSRP: $69.99
In Stock
Your Price: $69.99
MODEL: USP-Strip-US

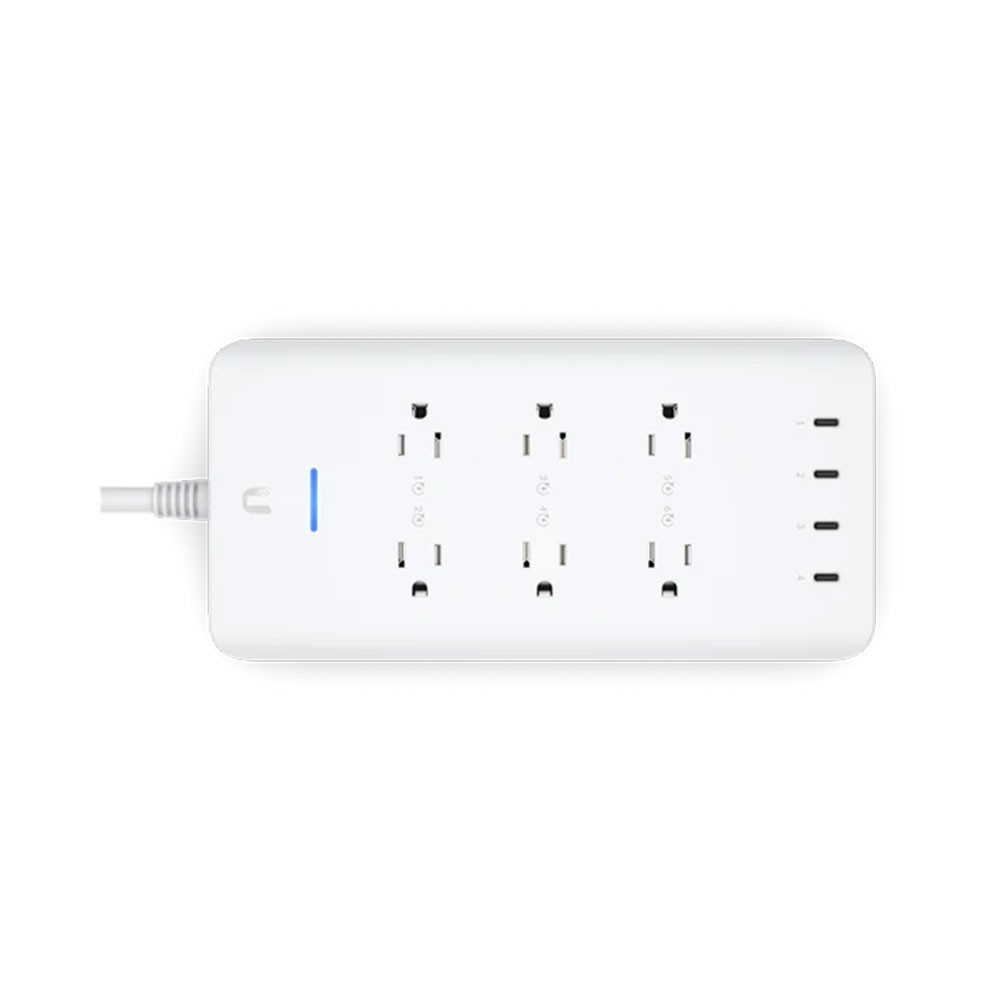

The SmartPower Strip is a WiFi connected power strip installed between an AC outlet and the power plugs of your internet connectivity hardware.
The UniFi Network application continuously monitors availability of an internet connection. If the connection drops, the UniFi SmartPower Strip automatically restarts the connected devices by disconnecting power for a short period of time*. The UniFi SmartPower Strip offers six power control outlets for 125VAC devices (up to 1250W total). Four USB Type C ports can charge smartphones, reading lights, and other devices (up to 1.5A per port).
Features:
- Reboots internet devices when UniFi Network application detects offline status
- Works with internet devices featuring US AC plug, including cable modems, DSL routers, and optical network terminals
- Adopt via WiFi using UniFi Network application
- (6) Power control outlets (125V, 1250W max. total)
- (4) USB Type C ports, 1.5A max. per port, 20W max. total
- Integrated circuit breaker
Managed with the UniFi Network application: Version 5.14.20 and later
*This device requires a UniFi WiFi connection from a UniFi gateway.
Specifications USP-STRIP-US
| Mechanical | |
| Dimensions | 229.5 x 111.5 x 37.8 mm (9 x 4.4 x 1.5") |
| Weight | Without mount: 702 g (1.6 lb) With wall mount: 849 g (1.9 lb) |
| Enclosure material | Fire-retardant plastic |
| Mount material | Fire-retardant plastic |
| Mounting | Magnetic wall mount (Included) |
| Hardware | |
| Management interface | 2.4 GHz WiFi |
| Networking interface | 802.11 b/g/n WiFi |
| Power method | AC input |
| Power supply | AC/DC embedded |
| Supported voltage range | AC input/output: 125V~10A Max., 60 Hz |
| Max. power consumption | 1250W for 125V AC |
| Power output | (6) Power control outlets,125V, 1250W Max. total (4) USB Type C ports, 2A Max. per Port, 20W Max. total |
| Operating frequency | 2.4 GHz |
| Antenna | Single-band |
| Max. TX power | 16.9 dBm |
| MIMO | 1 x 1, 2 x 1 |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Buttons | (1) Factory reset (1) Circuit breaker |
| LEDs | (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, waiting adoption Steady blue: device is adopted |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC |
| Software | |
| WiFi standards | 802.11 b/g/n |
| Power save | Yes |
| Wireless security | WPA2-PSK AES/TKIP |
| Supported Data Rates (Mbps) | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 - 72.2 Mbps (MCS0 - MCS7, HT 20) |
