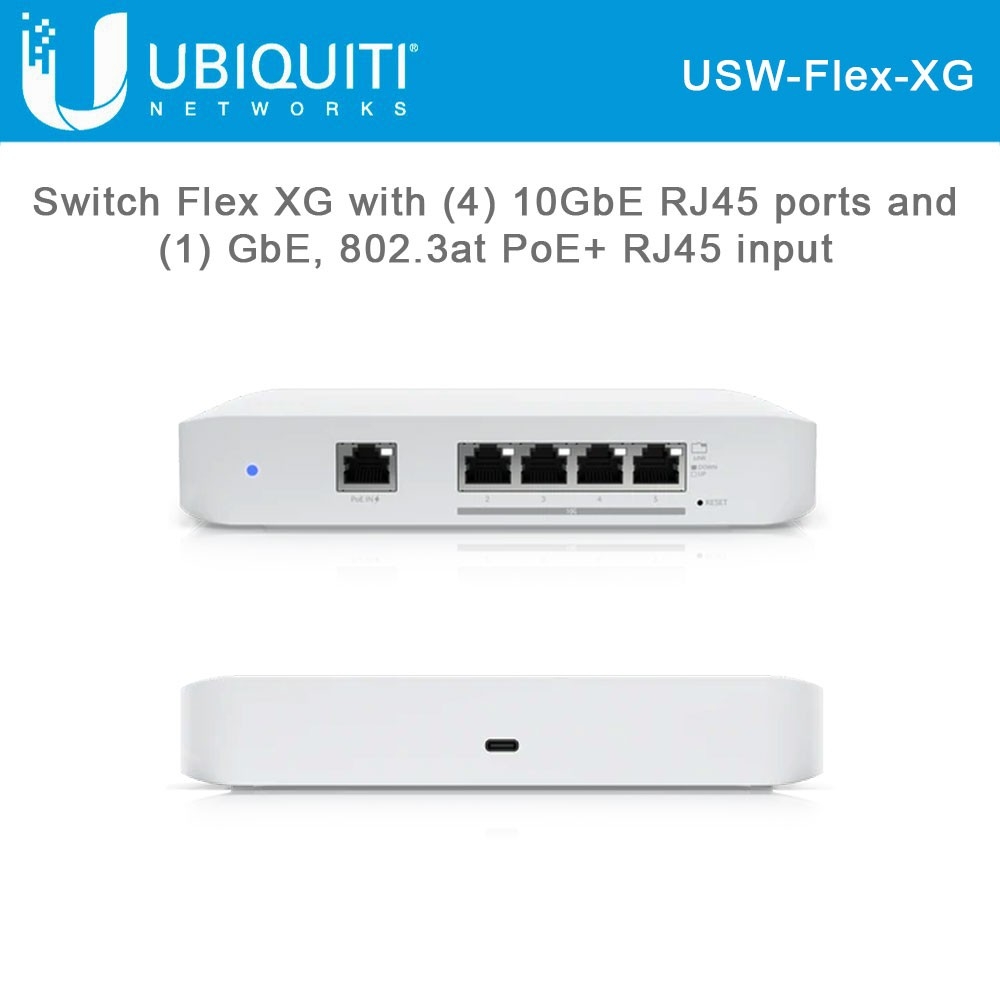

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.

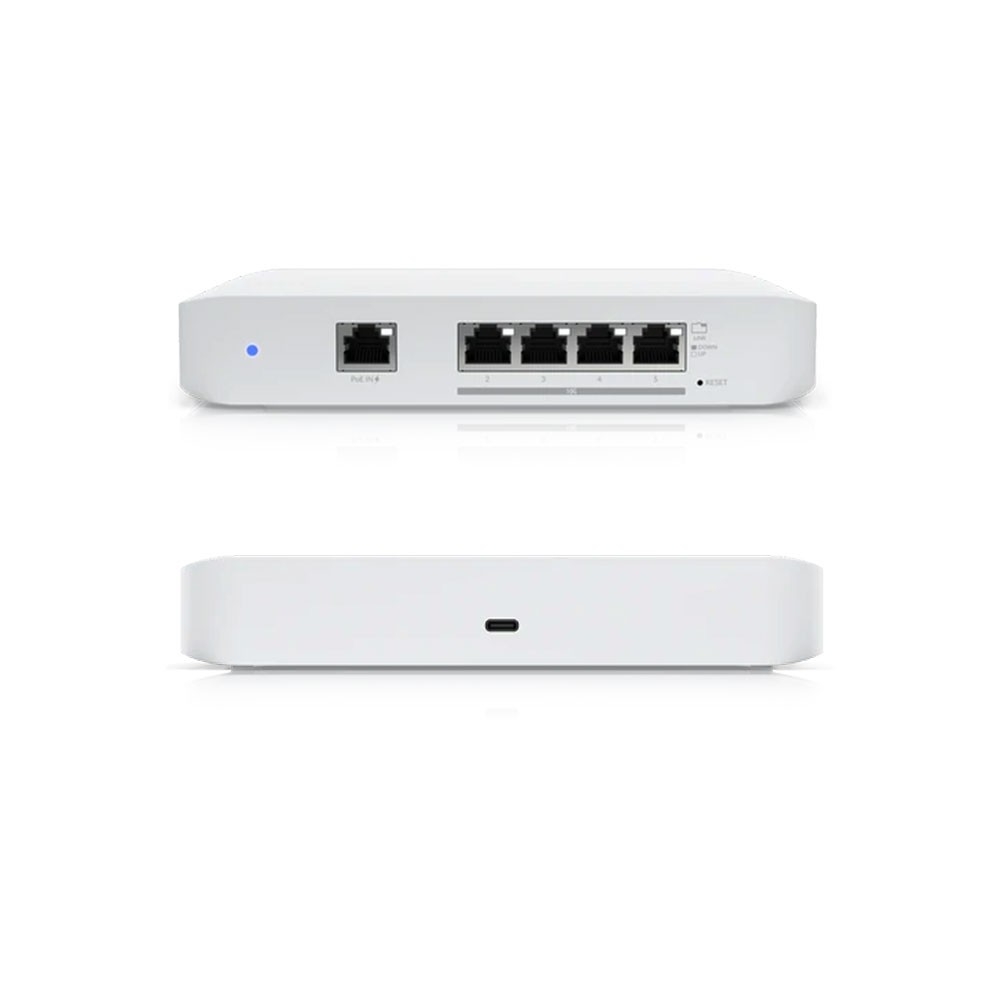

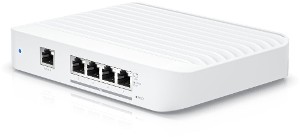

The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
Hardware
- Total Non-Blocking Throughput
- Switching Capacity
- Forwarding Rate
- Max Power Consumption
- Power Method
- (1) 802.3at PoE, 50-57VDC, 25W
- (1) USB Type-C, 5VDC, 5A
- Power Supply
- 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
- AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
- Supported Voltage Range
- Management Interface
- Networking Interfaces
- (1) 10/100/1000 Mbps RJ45 Ethernet
- (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
- Services
- SMB Layer 2 Gigabit Ethernet Switch
- ESD/EMP Protection
- Air: ± 16 kV, Contact: ± 12 kV
- Button
- Operating Temperature
- -5 to 45° C (23 to 113° F)
- Operating Humidity
- Certifications
LEDs
- System
- (1) Power, Blue/White
- Flashing White: Bootup in Progress
- Flashing Blue: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
- Ethernet
Mechanical
- Dimensions
- 135 x 185 x 32 mm (5.31 x 7.28 x 1.27")
- Weight
- Enclosure Material
Datasheet
