UVC-G4-PTZ

Ubiquiti


Ubiquiti Networks UVC-G4-PTZ UniFi Video Camera G4 4K PTZ



Product Highlights
  • 4K, 24 FPS video stream
  • 22x optical zoom
  • Multi-exposure HDR
  • Adaptive IR LEDs
  • 802.3bt PoE++
  • Model#: UVC-G4-PTZ

    Sku: IT4077



    MSRP: $1,939.00

    In Stock

    Your Price: $1,939.00






    SKU: UVC-G4-PTZ

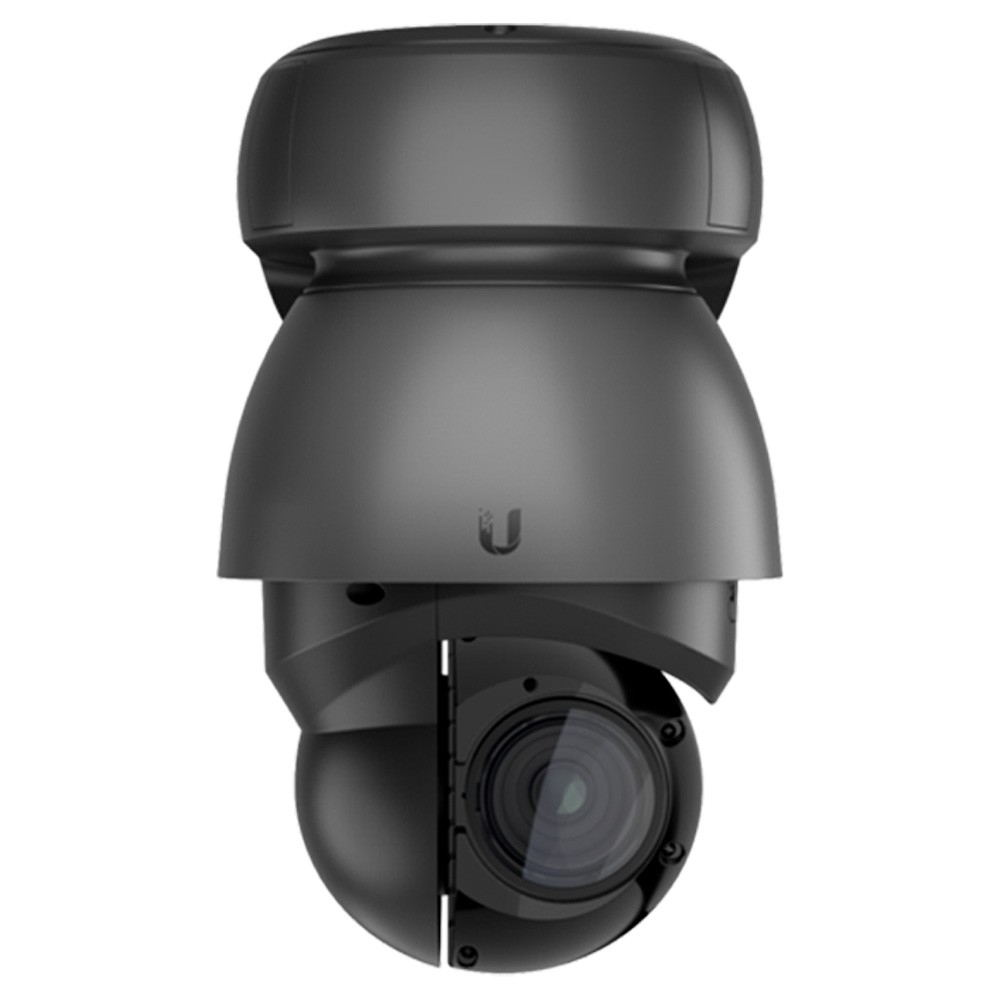

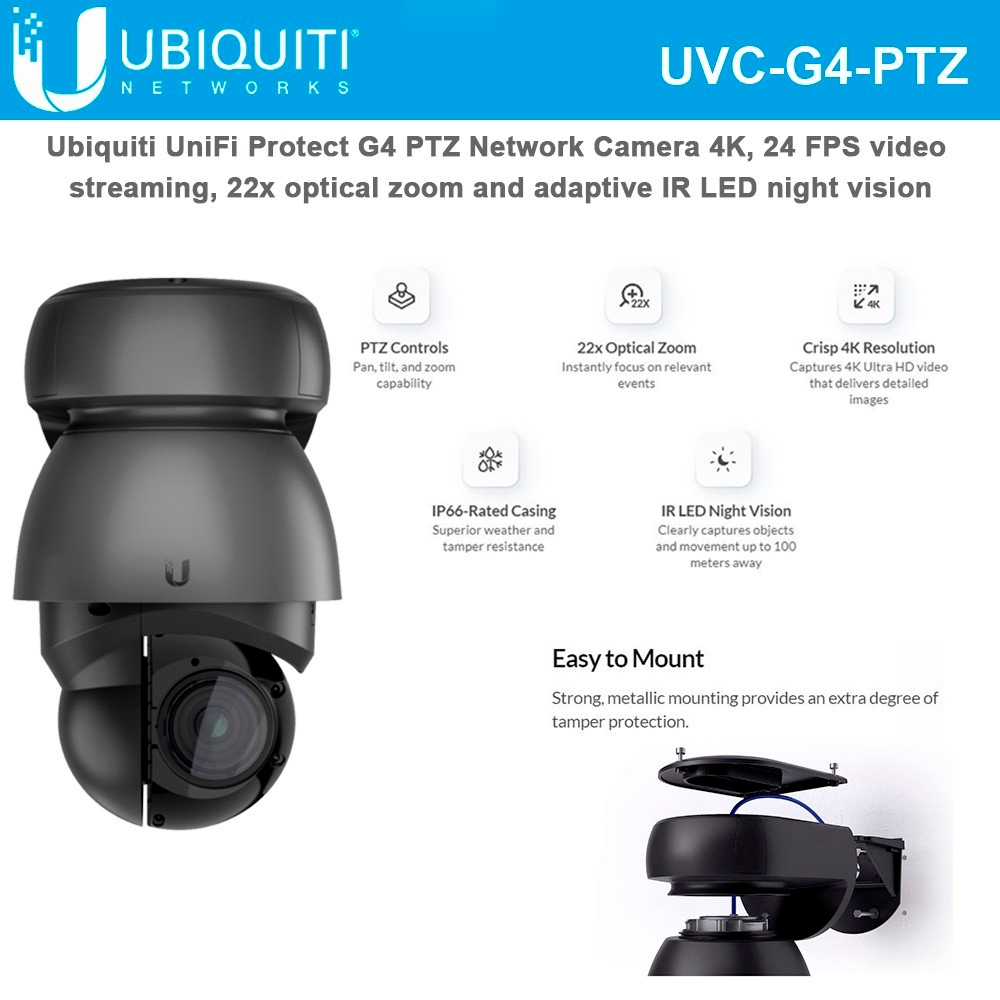

    UniFi Protect G4 PTZ is a high-performance pan-tilt-zoom camera with 4K, 24 FPS video streaming, 22x optical zoom, and adaptive IR LED night vision.

    The UniFi Camera G4 PTZ is a superior surveillance camera for shopping centers, parking lots, airports, train stations, and other transportation hubs. Pairing G4 PTZ’s advanced optical and video technologies with UniFi Protect’s ease of use creates a unique solution for the most demanding environments. G4 PTZ comes with IP66 weatherproof casing and flexible powering options.

    Low-latency PTZ Control

    Always find the perfect vantage point with full pan-tilt-zoom capability that grants universal range of motion.

    22x Optical Zoom

    Instantly focus on distant objects and subtle movements with a powerful optical zoom lens.

    IP66-rated Casing

    Highly durable casing protects the camera from harsh weather and makes it ideal for outdoor deployment.

    Long-distance Night Vision

    Adaptive IR LEDs clearly capture objects and movement up to 100 meters away, day or night.

    Easy to Mount

    Strong, metallic mounting provides an extra degree of tamper protection.

    Simple, Scalable, Comprehensive Surveillance

    Build your ideal camera security system and manage it easily with UniFi Protect.



    Features:

    • 4K, 24 FPS video stream
    • 22x optical zoom with F1.5 lens
    • Tamper-resistant pan and tilt with servo feedback
    • Multi-exposure HDR
    • Adaptive IR LEDs, night vision distance up to 100 m
    • Flexible power options: 802.3bt PoE++
    • IP66 weatherproof rating
    • Operating temperature -40° to + 50°C (-40° to +122°F)
    • Managed with UniFi Protect application and mobile app

    Works with UniFi Protect application:

    • Fully featured user interface
    • Plug-and-play installation
    • Mobile-based camera management
    • Motion detection and event recall
    • Easily integrated into existing Protect deployment

    Mechanical
    Dimensions
    207 x 223.7 x 341.3 mm (8.15 x 8.81 x 13.44")

    Weight
    Without Mount: 3.8 kg (8.38 lb)

    With Mount: 6.8 kg (14.99 lb)

    Enclosure Materials
    Metal and Plastic

    Mount Material
    Metal

    IP Rating
    IP66

    Optics
    Sensor
    Sony 4K (8 MP) 1/1.8" CMOS Sensor

    Lens
    22x Optical Zoom

    View Angle
    H: 3 to 64°

    V: 2 to 37°

    Night Mode
    Built-in IR LED Illumination and IR Cut Filter

    Video
    Video Compression
    H.264

    Resolution
    4K2K (3840 x 2160)

    Maximum Frame Rate
    24 FPS

    System
    Processor Specs
    Ambarella S5L66

    Memory Information
    1 GB

    Networking Interface
    RJ45, 10/100/1000 Mbps Gigabit Ethernet

    Flash Memory Support
    256 MB

    Max. Power Consumption
    42.9W

    Power Method
    802.3bt PoE++

    Supported Voltage Range
    802.3bt PoE++

    Button
    Factory Reset

    Mounting
    Wall Mount (Kit Included)

    Operating Temperature
     -40 to 50º C (-40 to 122º F)

    Operating Humidity
    0 to 90% Noncondensing

    Certifications
    FCC, IC, CE

    Software
    Controller Software
    UniFi Protect

    Mobile Apps
    UniFi Protect iOS and Android



    Datasheet

    PDF File Ubiquiti Networks UVC-G4-PTZ UniFi Video Camera G4 4K PTZ
