U6-Lite-US

Ubiquiti

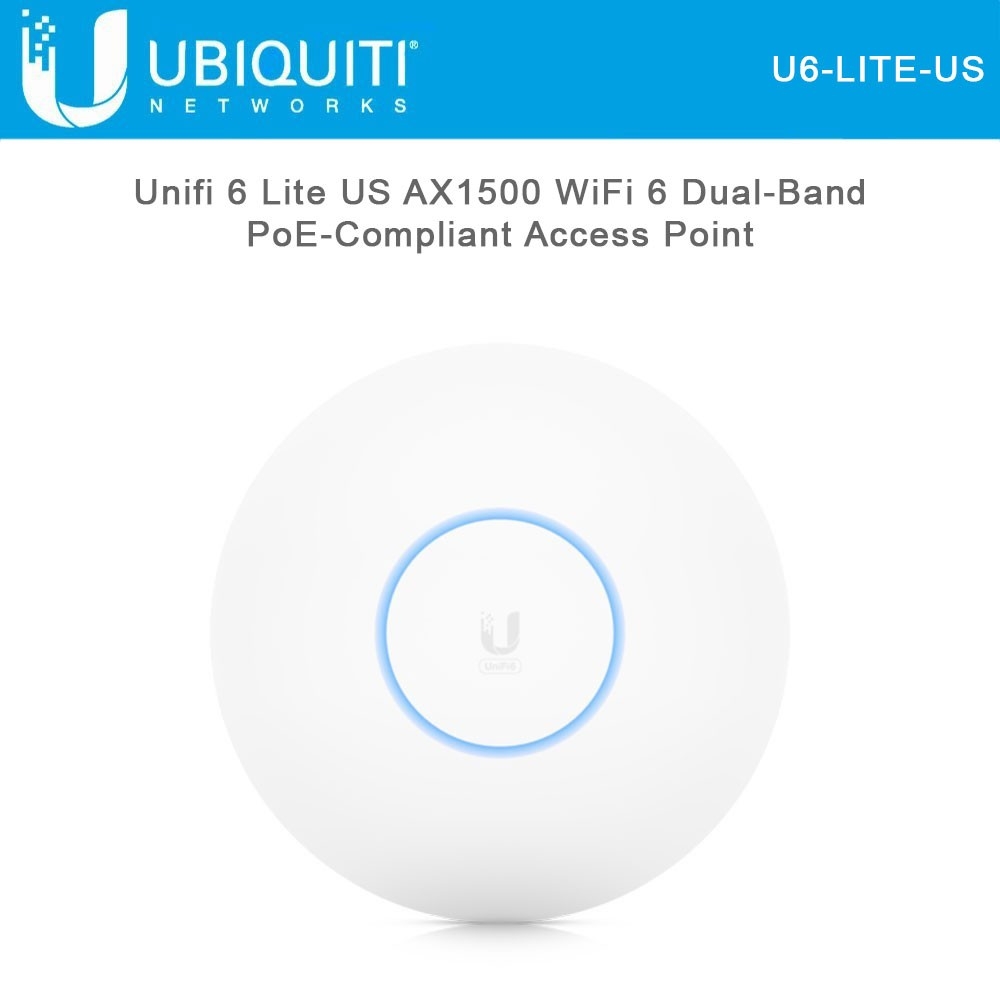

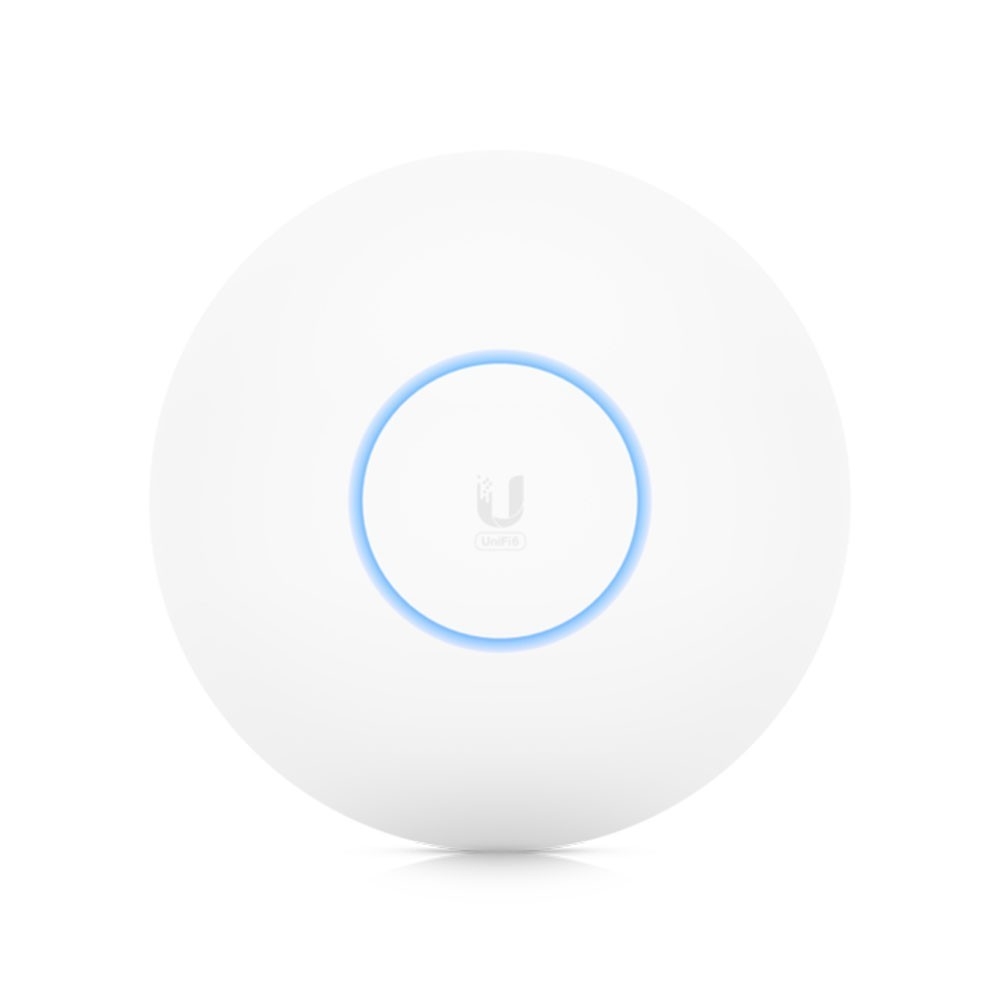

Ubiquiti U6-Lite-US UniFi 6 Lite Access Point - US Version



Product Highlights
  • 2x2 high efficiency WiFi 6
  • 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
  • 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps
  • Gigabit Ethernet, powered with 802.3af PoE
  • Compatible with UAP-nanoHD covers and recessed mounting bracket
  • Model#: U6-Lite-US

    Sku: IT4076

    Out of stock

    Your Price: N/A


    MODEL: U6-Lite-US

    Ubiquiti UniFi 6 Lite Access Point (US Version)

    Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.

    UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

    Works with UniFi Network Controller :

    • Manage Your Networks from a Single Control Plane
    • Intuitive and Robust Configuration, Control and Monitoring
    • Remote Firmware Upgrade
    • Users and Guests
    • Guest Portal/Hotspot Support

    Wireless

    • Wireless Frequency Bands: 2.4 GHz, 5 GHz Dual-Band
    • MU-MIMO Support: 2 x 2
    • WLAN Mode: Wi-Fi 6 (802.11ax)
    • Antenna Gain: 2.8 to 3 dBi
    • Transmit Power: 23 dBm
    • Antenna Placement: Internal
    • Bluetooth: None
    • Throughput: 1501 Mb/s Total
    • 2.4 GHz: 300 Mb/s
    • 5 GHz: 1201 Mb/s

    Interface

    • Ports: 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
    • USB Sharing Support: None

    Security

    • Guest Network Support: Yes
    • Wireless Security: WPA, WPA-PSK, WPA-Enterprise, WPA2, WPA3

    Management

    • Operation Modes: Access Point
    • Supported Clients: 300

    Hardware

    • RAM: 256 MB
    • Processor: 880 MHz
    • Supported IEEE Standards: 802.11ac, 802.11ax, 802.11a, 802.11b, 802.11g, 802.11n

    Electrical

    • Power Consumption:12 W

    Environmental

    • Operating Temperature: -22 to 140°F / -30 to 60°C
    • Operating Humidity: 5 to 95%

    General

    • IP Rating: None
    • Mount Options: Wall, Ceiling
    • Dimensions: 6.3 x 6.3 x 1.29" / 160 x 160 x 32.65 mm
    • Weight: 11.1 oz / 315 g

    Packaging Info

    • Package Weight: 1.24 lb
    • Box Dimensions (LxWxH): 7.1 x 6.9 x 2.2"

    Datasheet

    PDF File Ubiquiti U6-Lite-US UniFi 6 Lite Access Point - US Version
