MODEL: LTU-LR-US

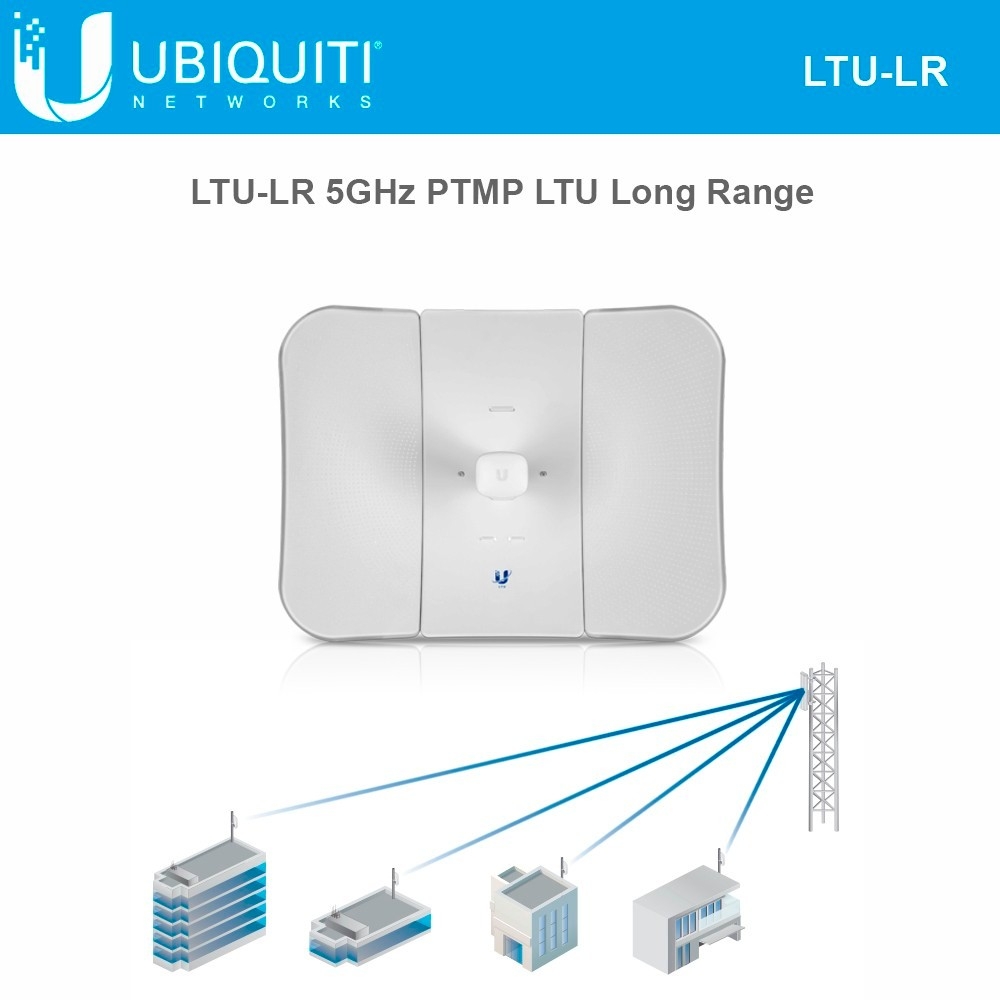

Ubiquiti 5 GHz PtMP LTU Long-Range Client Radio
The LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).
Features:
- Proprietary Ubiquiti LTU Processor
- Long-Range 26 dBi Antenna with High-Power InnerFeed
- 10/20/30/40/50 MHz Channel Width Flexibility
Power
- Max. Power Consumption: 8.5W
- Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
- Voltage Range: 22-26V
- Max. Conducted TX Power: 22 dBm (per Chain)
- Gain: 26 dBi
- Mounting: Pole-Mount (Kit Included)
- Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
- Wind Survivability: 200 km/h (125 mph)
- ESD/ EMP Protection: ±24kV Contact/ Air
- Operating Temperature: -40 to 60°C (-40 to 140°F)
- Operating Humidity: 5-95% Non-condensing
- Certifications: CE, FCC, IC
Product Includes
(1) Antenna Feed
(1) Center Reflector Panel
(2) Side Reflector Panels
(1) Mounting Bracket
(1) Rear Housing
(2) Pivot Panels
(8) M4 SEM Screws
(4) M8 SEM Screws
(3) Metal Straps
(1) Gigabit PoE (24V, 0.5A) with Mounting Bracket
(1) Power Cord
Datasheet
