LTU-ROCKET-US

Ubiquiti


Ubiquiti Networks LTU-Rocket-US 5GHz LTU Rocket- US Version



Product Highlights
  • 600+ Mbps PtMP performance
  • Up to 64 client connections per AP2
  • Proprietary RF filtering
  • 2+ Million pps
  • Model#: LTU-ROCKET-US

    Sku: IT4069



    MSRP: $441.85

    In Stock

    Your Price: $441.85






    Model: LTU-Rocket-US

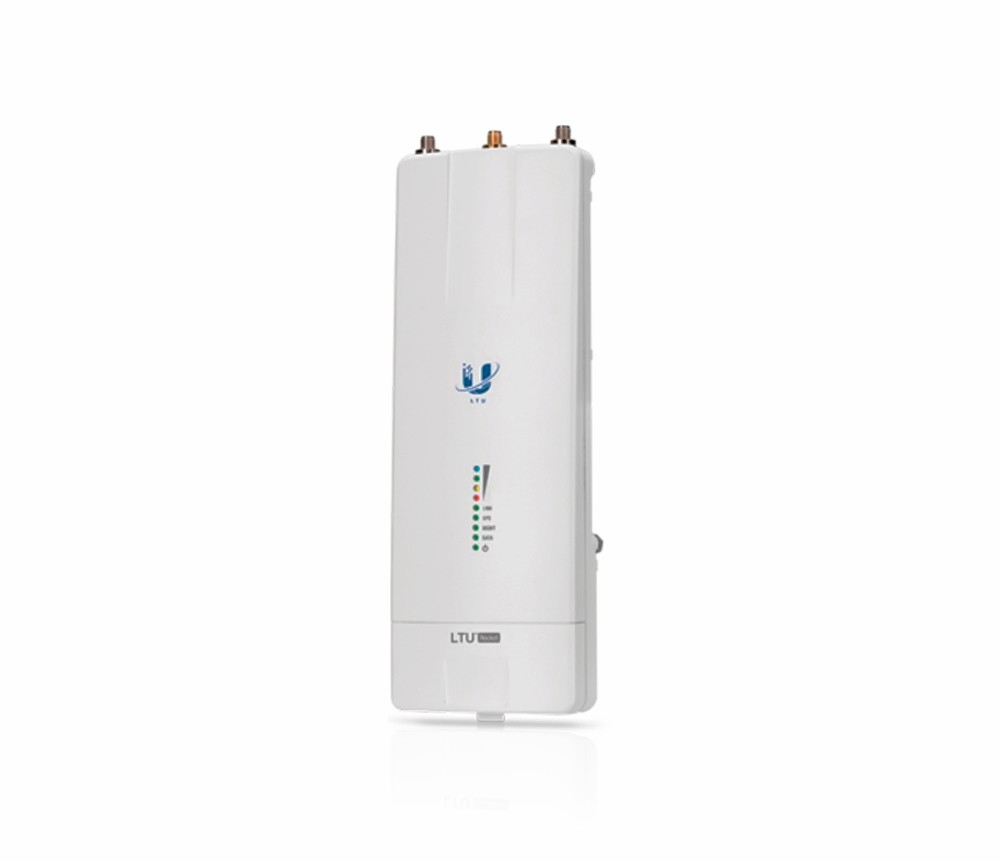

    5 GHz LTU Rocket (US Version)

    Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Rocket is a Point-to-MultiPoint (PtMP) 5 GHz Access Point featuring 2+ Mpps processing, proprietary RF filtering, and flexible GPS sync for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. A custom co-processor is included for future performance and feature upgrades. Functions in a PtMP environment using the LTU-Pro, LTU-Lite for subscriber stations.

    Specifications LTU-ROCKET-US

    Dimensions 244 x 82 x 48 mm (9.61 x 3.23 x 1.89")
    Weight 0.468 kg (16.5 oz)
    Enclosure Diecast Aluminum and Polycarbonate
    RF Connectors (2) RP-SMA Weatherproof (CH0, CH1) (1) SMA Weatherproof (GPS)
    GPS Antenna External Magnetic Base
    Power Supply 24V, 1A Gigabit PoE Adapter (Included)
    Power Method Proprietary 4-Pair Passive PoE Pins 1, 2; 4, 5+ and Pins 3, 6; 7, 8-
    Max. Power Consumption 15W
    Voltage Range +18 to +54VDC*
    Networking Interface (1) 10/100/1000 Ethernet Port
    Mounting Integrated Pole Mount (Included) Rocket Mount Compatible GPS Pole Mount (Included)
    Operating Temperature -40 to 55° C (-40 to 131° F)
    Weatherproofing IP672**
    Certifications FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1
    SYSTEM
    Maximum Throughput 675.84 Mbps ***, ****
    Maximum Range 100+ km***
    Packets per Second 2+ Million
    Encryption WPA2-PSK (AES)
    Forward Error Correction LDPC
    Uplink/Downlink Ratio 25/75, 33/67, 50/50
    OS airOS LTU
    Wireless Modes AP
    FREQUENCY RANGE MHZ
    US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850
    EU 5150 - 5875
    Worldwide 4900 - 6200
    Max. Conducted TX Power 29 dBm (Dependent on Regulatory Region)
    Frequency Accuracy < 2 ppm
    Channel Bandwidth 10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles

    Datasheet

    PDF File Ubiquiti Networks LTU-Rocket-US 5GHz LTU Rocket- US Version
