LTU-Pro-US

Ubiquiti


Ubiquiti Networks LTU-Pro-US 5GHz LTU Pro Subscriber Station - US Version



Product Highlights
  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Model#: LTU-Pro-US

    Sku: IT4068



    MSRP: $198.00

    In Stock

    Your Price: $198.00






    US Version

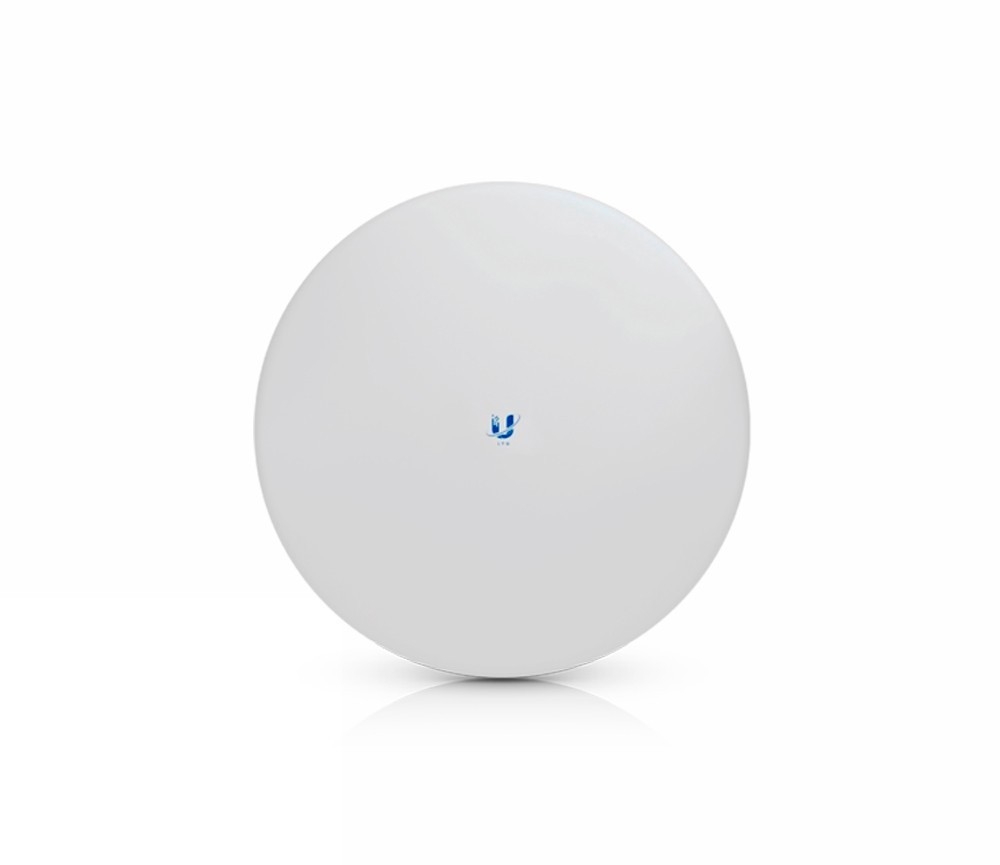

    Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

    • Dimensions 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86")
    • Weight 1.3 kg (2.87 lb)
    • Networking Interface (1) 10/100/1000 Ethernet Port
    • Enclosure Outdoor UV Stabilized Plastic
    • Max. Power Consumption 9W
    • Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
    • Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8-)
    • Voltage Range 22 - 26V
    • Max. Conducted TX
    • Power
    • 22 dBm (per Chain)
    • Gain 24 dBi
    • Beamwidth 14°
    • Sidelobe Level -10 dB
    • Front-to-Back Ratio 27 dB
    • Mounting Pole-Mount (Kit Included)
    • Wind Loading 150 N @ 200 km/h (33.72 lbf @ 125 mph)
    • Wind Survivability 200 km/h (125 mph)
    • ESD/EMP Protection ± 24kV Contact/Air
    • Operating Temperature -40 to 60° C (-40 to 140° F)
    • Operating Humidity 10 - 90% Noncondensing
    • Certifications CE, FCC, IC

    Datasheet

    PDF File Ubiquiti Networks LTU-Pro-US 5GHz LTU Pro Subscriber Station - US Version
