LTU-Lite

Ubiquiti


Ubiquiti LTU Lite 5 GHz PtMP Environment with the LTU-Rocket as the BaseStation. - International Version



Product Highlights
  • Ubiquiti LTU-Lite 5 GHz PtMP LTU CPE Radio with 13dBi Integrated Antenna (International)
  • The LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE.
  • LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance.
  • Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
  • Router mode support
  • Model#: LTU-Lite

    Sku: IT4065



    MSRP: $107.30

    In Stock

    Your Price: $107.30






    Ubiquiti LTU-Lite 5 GHz PtMP LTU CPE Radio with 13dBi Integrated Antenna (International)

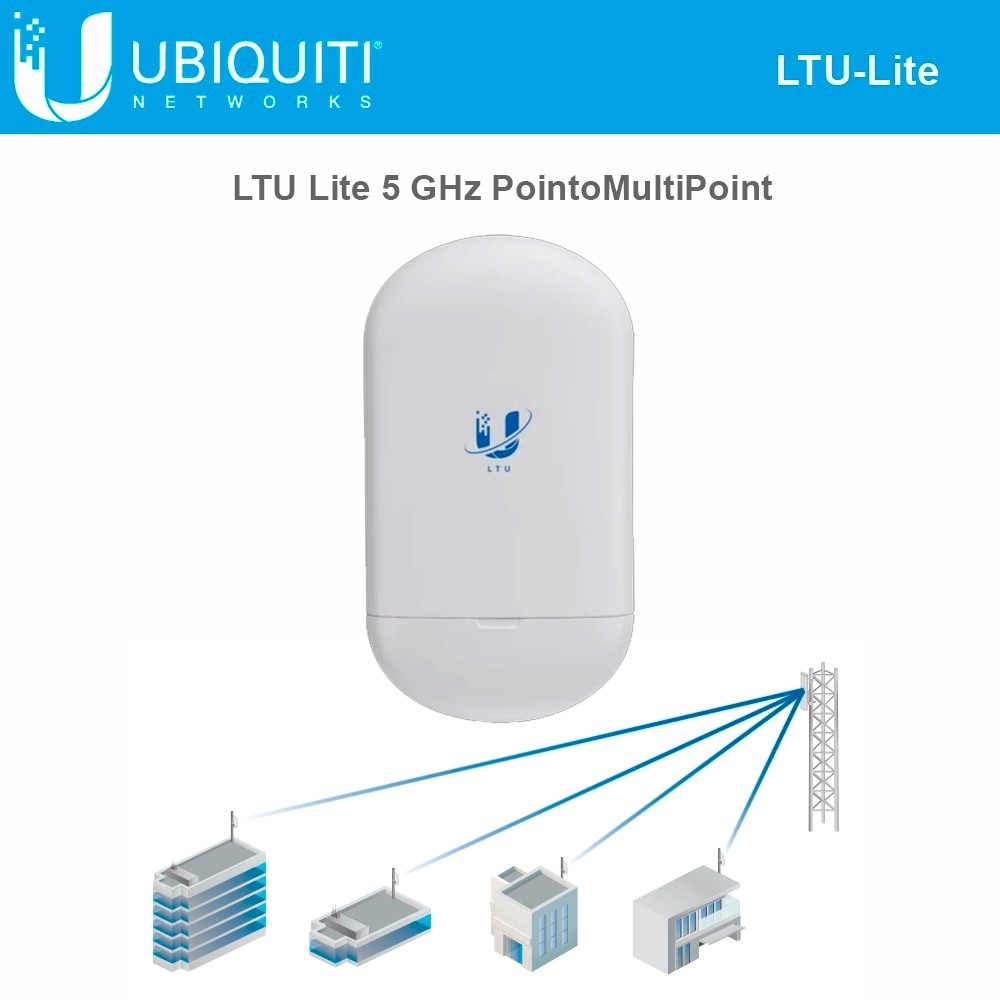

    Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. Featuring an integrated antenna, the LTU Lite is a compact, cost-effective subscriber station utilizing the 5 GHz radio band. It functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket as the basestation.

    Based on Ubiquiti’s LTU technology, the LTU Lite is not impeded by the limitations of standard 802.11 Wi-Fi technology. Its custom LTU silicon and radio architecture provide up to 600+ Mbps1 of real TCP/IP throughput and modulation rates of up to 4096QAM2.

    • CPE Modes

    The LTU Lite supports both bridged and built-in hardware NAT router modes to suit your specific deployment.

    • Frequency Split

    The LTU Lite can use different frequencies for TX and RX to avoid interference

    • Convenient Mount Options

    The LTU Lite is designed for quick yet reliable mounting on a pole or on a wall. All necessary mounting hardware is included.

    • Channel Width Flexibility

    Channel width flexibility allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. Channel width options include:

    • 10 MHz
    • 20 MHz
    • 30 Mhz
    • 40 MHz
    • 50 MHz
    • Up to 100 MHz*



    • Signal Control

    The LTU Lite's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation.

    • Convenient Configuration

    To manage the LTU Lite, you have two options: the LTU Configuration Interface and Ubiquiti Network Management System (UNMS™). Either option lets you manually configure the LTU Lite. Within the LTU Configuration Interface, you can manually configure the LTU Lite or manage it from the AP side using the Find My AP feature. The LTU Lite will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU Lite.

    • Dimensions: 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
    • Weight: 250 g (8.82 oz)
    • Networking Interface: (1) 10/100/1000 Ethernet Port
    • Enclosure: Outdoor UV Stabilized Plastic Max.
    • Power Consumption: 8.5W
    • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
    • Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
    • Voltage Range: 22 - 26V
    • Max. Conducted TX Power: 22 dBm per Chain
    • Gain: 13 dBi
    • Cross-pol Isolation: 20 dB Minimum
    • Max. VSWR 1.8:1
    • Beamwidth 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
    • Polarization: Dual Linear
    • Mounting: Pole-Mount Wall Mount (Kit Included)
    • Wind Loading: 20 N @ 200 km/h (4.5 lbf @ 125 mph)
    • Wind Survivability: 200 km/h (125 mph)
    • ESD/EMP Protection ± 24kV Contact/Air
    • Operating Temperature: -40 to 55° C (-40 to 131° F)
    • Operating Humidity: 5 to 95% Noncondensing
    • Certifications: CE, FCC, IC

    Datasheet

    PDF File Ubiquiti LTU Lite 5 GHz PtMP Environment with the LTU-Rocket as the BaseStation. - International Version
