TL-SG3452X

TP-Link

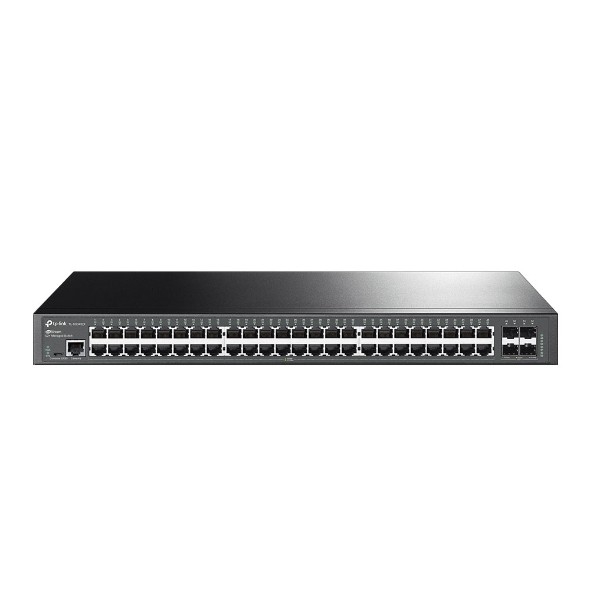

TP-Link JetStream TL-SG3452X 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots



Product Highlights
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Model#: TL-SG3452X

    Sku: IT4053



    MSRP: $659.99


    Out of stock

    Your Price: $659.99


    TP-Link TL-SG3452X

    JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

    10G Uplink Managed Switch for a Complete Omada Network

    • 10G Lightning-Fast Uplink Connection: 4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity

    • Gigabit Connections: 48× Gigabit Ethernet Ports Offer Reliable Connections

    • Centralized Cloud Management: SDN Solutions Integration for a Highly Efficient Network

    • Advanced L2+ Features: Static Routing, IGMP Snooping, 802.1Q VLAN and More

    Enterprise Switch with 10G Uplink

    4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

    Software Defined Networking (SDN) with Cloud Access

    Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

    Advanced L3 Features**

    An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

    Secure Networking

    Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

    Enterprise Level Features

    A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.

    Advanced QoS

    Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

    IPv6 Support

    IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

    Specifications

    HARDWARE FEATURES
    Interface • 48× 10/100/1000 Mbps RJ45 Ports• 4× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port
    Fan Quantity Fanless
    Power Supply 100-240 V AC~50/60 Hz
    Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
    Mounting Rack Mountable
    Max Power Consumption 32.72 W (110V/60Hz)
    Max Heat Dissipation 111.65 BTU/h (110 V/60 Hz)
    PERFORMANCE
    Switching Capacity 176 Gbps
    Packet Forwarding Rate 130.9 Mpps
    MAC Address Table 16 K
    Jumbo Frame 9 KB
    SOFTWARE FEATURES
    Quality of Service • 8 priority queues
    • 802.1p CoS/DSCP priority
    • Queue scheduling
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    - SP+WRR
    • Bandwidth Control
    - Port/Flow based Rating Limiting
    • Smoother Performance
    • Action for Flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    L2 and L2+ Features • Link Aggregation
    - static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups, containing 8 ports per group
    • Spanning Tree Protocol
    - 802.1d STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter, Root Protect
    • Loopback Detection
    - Port based
    - VLAN based
    • Flow Control
    - 802.3x Flow Control
    - HOL Blocking Prevention
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Tx/Rx/Both
    L2 Multicast • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - IGMP Authentication
    • IGMP Authentication
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    - Limited IP Multicast
    • MVR
    • Multicast Filtering: 256 profiles and 16 entries per profile
    VLAN • VLAN Group
    - Max 4K VLAN Groups
    • 802.1Q Tagged VLAN
    • MAC VLAN: 30 Entries
    • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
    • Private VLAN
    • GVRP
    • VLAN VPN (QinQ)
    - Port-Based QinQ
    - Selective QinQ
    • Voice VLAN
    Access Control List • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    -Source IP
    - Destination IP
    - Fragment
    - IP Protocol
    - TCP Flag
    - TCP/UDP Port
    - DSCP/IP TOS
    - User Priority
    • Combined ACL
    • Packet Content ACL
    • IPv6 ACL
    • Policy
    - Mirroring
    - Redirect
    - Rate Limit
    - QoS Remark
    • ACL apply to Port/VLAN
    Security • IP-MAC-Port Binding
    - 512 Entries
    - DHCP Snooping
    - ARP Inspection
    - IPv4 Source Guard: 100 Entries
    • IPv6-MAC-Port Binding
    - 512 Entries
    - DHCPv6 Snooping
    - ND Detection
    - IPv6 Source Guard: 100 Entries
    • DoS Defend
    • Static/Dynamic Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • 802.1X
    - Port base authentication
    - Mac base authentication
    - VLAN Assignment
    - MAB
    - Guest VLAN
    - Support Radius authentication andaccountability
    • AAA (including TACACS+)
    • Port Isolation
    • Secure web management through HTTPS with SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
    • IP/Port/MAC based access control
    IPv6 • IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 ACL
    • IPv6 Interface
    • Static IPv6 Routing
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP) version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    L3 Features • 16 IPv4/IPv6 Interfaces
    • Static Routing
    - 48 static routes
    • Static ARP
    - 128 Static Entries
    • Proxy ARP
    • Gratuitous ARP
    • DHCP Server
    • DHCP Relay
    - DHCP Interface Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    Management • Web-based GUI
    • Command Line Interface (CLI) through the console port, telnet
    • SNMP v1/v2c/v3
    - Trap/Inform
    - RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • 802.1ab LLDP/LLDP-MED
    • DHCP AutoInstall
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • Password Recovery
    • SNTP
    • System Log
    Advanced Features • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
    • Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • ZTP (Zero-Touch Provisioning)*
    MIBs
    • MIB II (RFC1213)
    • Interface MIB (RFC2233)
    • Ethernet Interface MIB (RFC1643)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • RMON MIB (RFC2819)
    • RMON2 MIB (RFC2021)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIB

    OTHERS
    Certification CE, FCC, RoHS
    Environment • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

    Datasheet

    PDF File TP-Link JetStream TL-SG3452X 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
