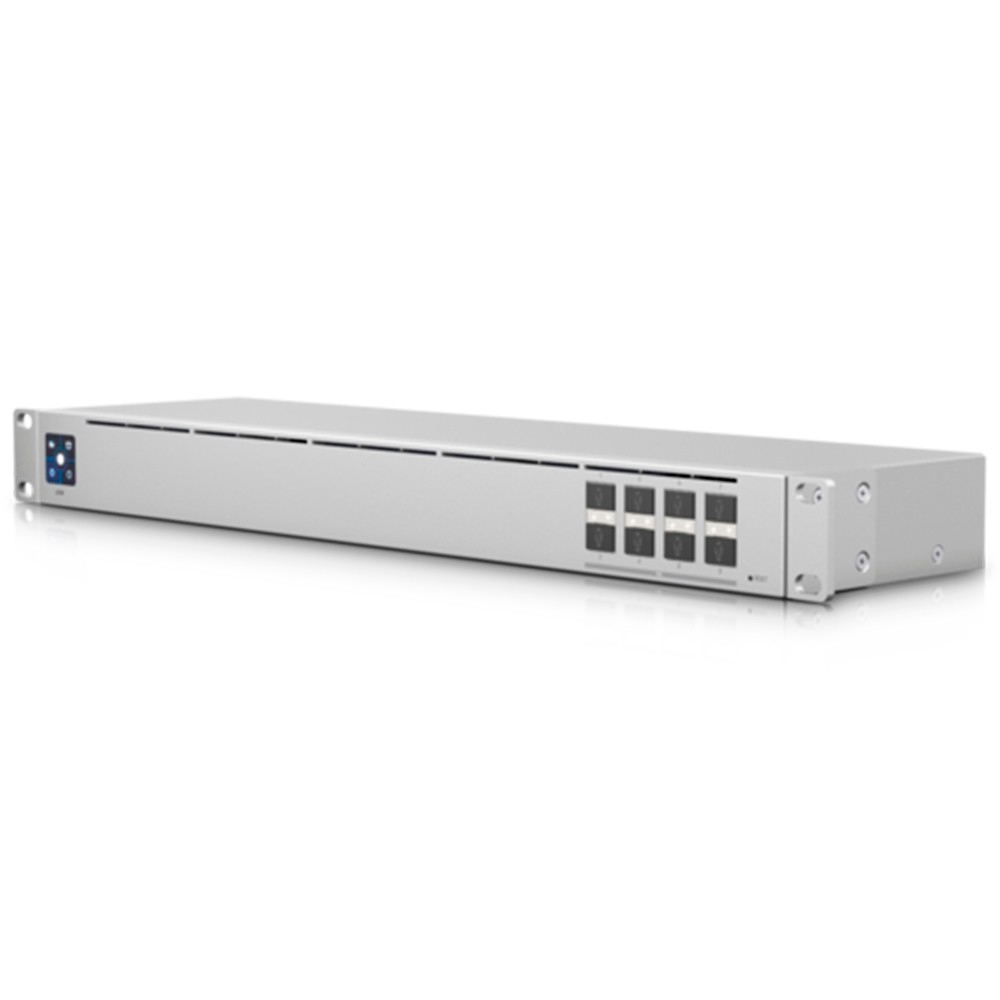

Ubiquiti Networks USW-Aggregation UniFi Switch Aggregation
Product Highlights
Model#: USW-Aggregation
Sku: IT3981
MSRP: $319.99
In Stock
Your Price: $319.99
MODEL: USW-Aggregation
Ubiquiti Networks USW-Aggregation UniFi Switch Aggregation
USW-Aggregation is a managed Layer 2 switch with eight 10G SFP+ ports, offering link aggregation for higher capacity and increased availability. USW-Aggregation features Layer 2 capabilities and supports highbandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately) in all eight ports.
Features:
- (8) 10G SFP+ Portsv
- 160 Gbps switching capacity
- 1.3 Touchscreen with AR switch managementv
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
Specifications USW-Aggregation
| Dimensions | 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72") |
| Weight | WithoutMount: 2.65 kg (5.84 lb), With Mount: 2.74 kg (6.04 lb) |
| Enclosure Material | SGCC Steel |
| Total Non-Blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Max. Power Consumption | 30W |
| Power Method | Universal ACInput: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| ManagementInterface | EthernetIn-Band |
| Modes | SMB Layer 2 GigabitEthernetSwitch |
| ESD/EMPProtection | Air: ± 16kV, Contact: ± 12kV |
| Operating Temperature | -5 to 40° C(23 to 104° F) |
| Operating Humidity | 10 - 90%Noncondensing |
| Certications | CE, FCC, IC |
| System | (1) Bootup Animation: Bootup in Progress FirmwareUpgrade Icon: FirmwareUpgrading SteadyWhite: Factory Defaults, Awaiting Adoption SteadyBlue: Device isAdopted |
| SFP+ | White: 1/10G |
Datasheet
