USW-Aggregation-Pro

Ubiquiti


Ubiquiti UniFi Pro Aggregation Switch 10G fiber L3 switch USW-Aggregation-Pro UniFi enterprise system



Product Highlights
  • (28) 10G SFP+ ports
  • (4) 25G SFP28 ports
  • (1) USP RPS DC input for power redundancy
  • 760 Gbps switching capacity
  • Layer 3 switching features
  • Model#: USW-Aggregation-Pro

    Sku: IT3980



    MSRP: $1,205.00

    In Stock

    Your Price: $1,205.00






    MODEL: USW-Aggregation-Pro

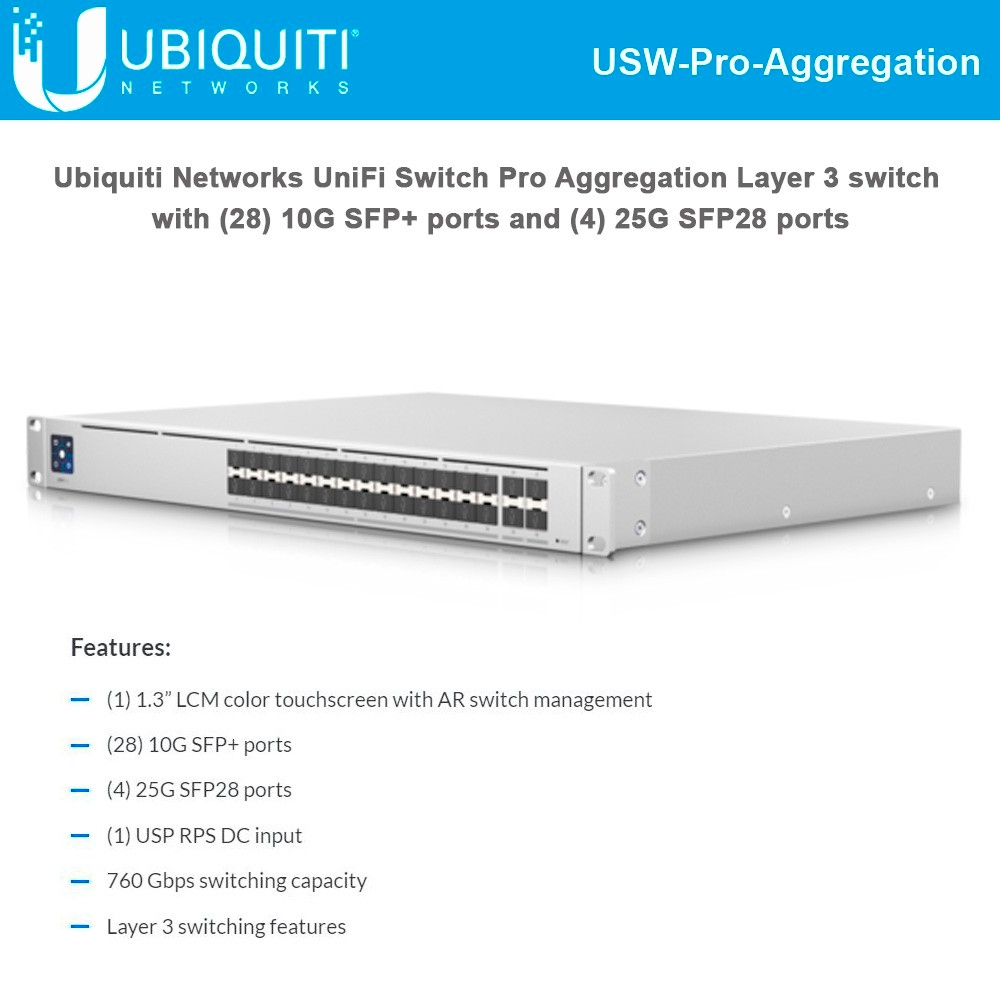

    The Switch Pro Aggregation is a fully managed, Layer 3 switch with (28) 10G SFP+ ports and (4) 25G SFP28 ports designed to enhance your network's switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 760 Gbps switching capacity and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

    Additionally, the Switch Pro Aggregation offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System ( sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

    Features:

    • (1) 1.3” LCM color touchscreen with AR switch management
    • (28) 10G SFP+ ports
    • (4) 25G SFP28 ports
    • (1) USP RPS DC input
    • 760 Gbps switching capacity
    • Layer 3 switching features
    Mechanical
    Dimensions 442 x 325 x 44 mm
    (17.4 x 12.8 x 1.7")
    Weight Without Mount: 4.6 kg (10.14 lb)
    With Mount: 4.7 kg (10.36 lb)
    Enclosure Material SGCC Steel
    Hardware
    Total Non-Blocking Throughput 380 Gbps
    Switching Capacity 760 Gbps
    Forwarding Rate 565.44 Mpps
    Max. Power Consumption 100W
    Power Method (1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
    (1) USP-RPS DC input, 11.5VDC, 8.7A
    Power Supply AC/DC, Internal, 100W
    Network Interface (28) 1/10 Gbps SFP+ Ethernet
    (4) 1/10/25 Gbps SFP28 Ethernet*
    LCM Display (1) 1.3" Touchscreen
    Bootup Animation: Bootup in Progress
    Firmware Upgrade Icon: Firmware Upgrading
    Steady White: Factory Defaults, Awaiting Adoption
    Steady Blue: Device is Adopted
    LEDs SFP28/SFP+: White, Link and Activity
    Management Interface Ethernet In-Band
    Modes SMB Layer 3 10/25 G Fiber Switch
    ESD/EMP Protection Air: ± 16kV, Contact: ± 12kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 10 - 90% Noncondensing
    Certifications CE, FCC, IC



    *The four SFP28 ports don't support mixed speed at 25Gbps mode.
    Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too.
    The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.


    Datasheet

    PDF File Ubiquiti UniFi Pro Aggregation Switch 10G fiber L3 switch USW-Aggregation-Pro UniFi enterprise system
