USW-Lite-16-POE

Ubiquiti

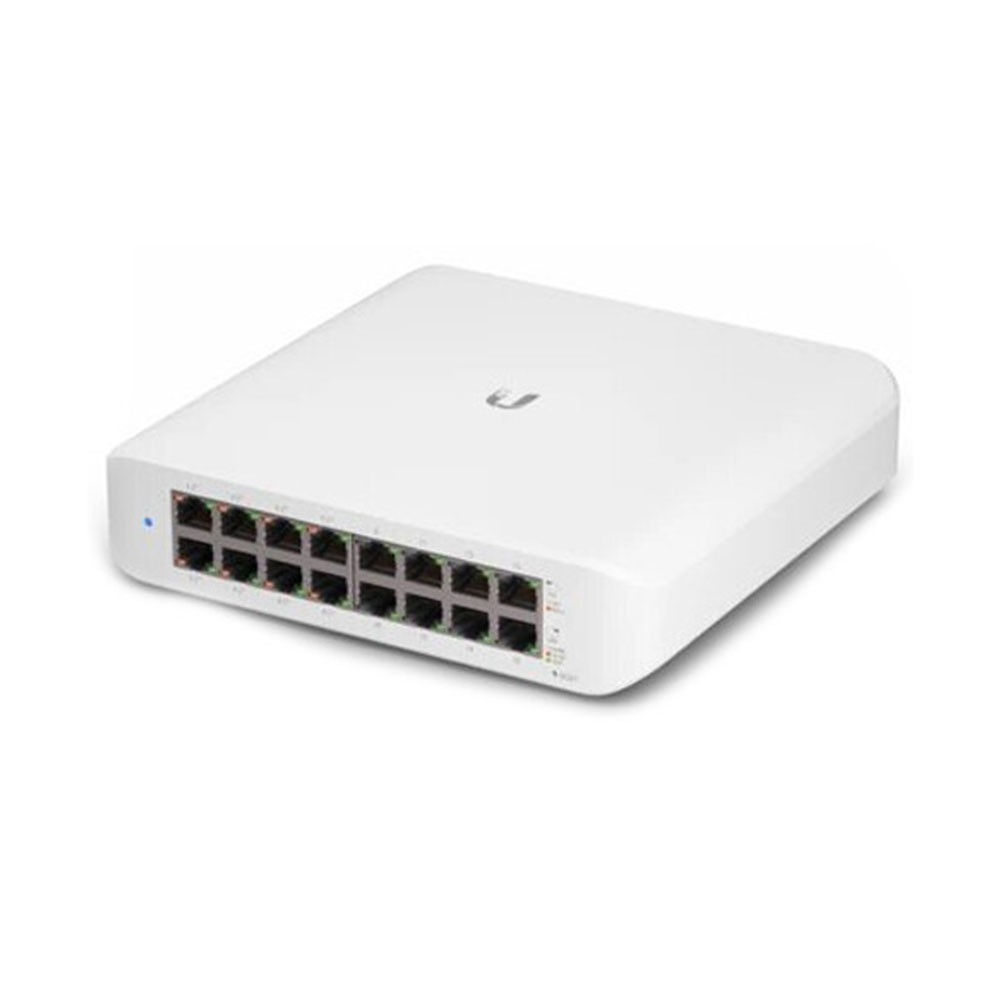

Ubiquiti Networks USW-Lite-16-POE UniFi Switch Lite 16 PoE



Product Highlights
  • (16) Gigabit Rj45 ports including (8) 802.3af PoE+
  • Managed by UniFi Controller
  • 60W power supply
  • Wall-mountable (Kit Included)
  • Model#: USW-Lite-16-POE

    Sku: IT3978



    MSRP: $269.99

    In Stock

    Your Price: $269.99






    The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.??

    Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

    Mechanical

    • Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
    • Weight: 1.2 kg (2.65 lb)

    Hardware

    • Total Non-Blocking Line Rate: 16 Gbps
    • Max. Power Consumption: 15W
    • Power Method: Universal AC Input: 100-240VAC
    • Power Supply: Internal 60W AC/DC Power Supply
    • Networking Interfaces: (16) 10/100/1000 Mbps Ethernet RJ45
    • PoE Interfaces: (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    • Management Interface: Ethernet In-Band
    • Max PoE+ Wattage per Port by PSE: 30W
    • Modes: SMB Layer 2 PoE Gigabit Ethernet Switch
    • Operating Temperature: -15 to 40° C (5 to 104° F)
    • Operating Humidity: 10 - 90% Noncondensing
    • Certifications: CE, FCC, IC


    LED

    System:  (1) Power, Blue/White
                     Flashing White: Bootup in Progress
                     Flashing Blue: Firmware Upgrading
                     Steady White: Factory Defaults, Awaiting Adoption
                     Steady Blue: Device is Adopted


    Ethernet: Green 1G, Amber: 10/100 Mbps

    PoE: Amber: IEEE 802.3af/at


    Datasheet

    PDF File Ubiquiti Networks USW-Lite-16-POE UniFi Switch Lite 16 PoE
