USW-EnterpriseXG-24

Ubiquiti


Ubiquiti Networks USW-EnterpriseXG-24 UniFi Switch EnterpriseXG 24


Product Highlights
  • (1) 1.3
  • (24) 10GbE RJ45 ports
  • (2) 25G SFP28 ports
  • (1) USP RPS DC input
  • Layer 3 switching features

    • Model#: USW-EnterpriseXG-24

    Sku: IT3961



    MSRP: $1,899.99

    In Stock

    Your Price: $1,899.99

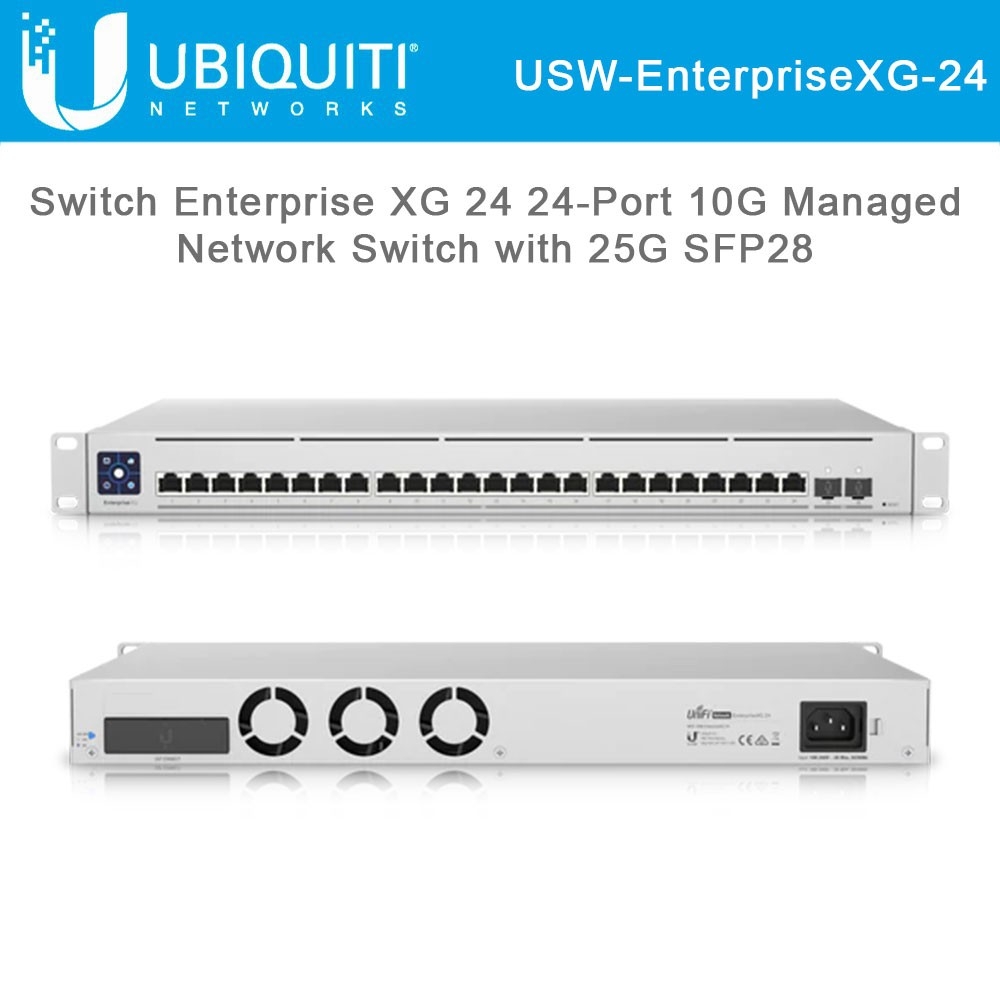

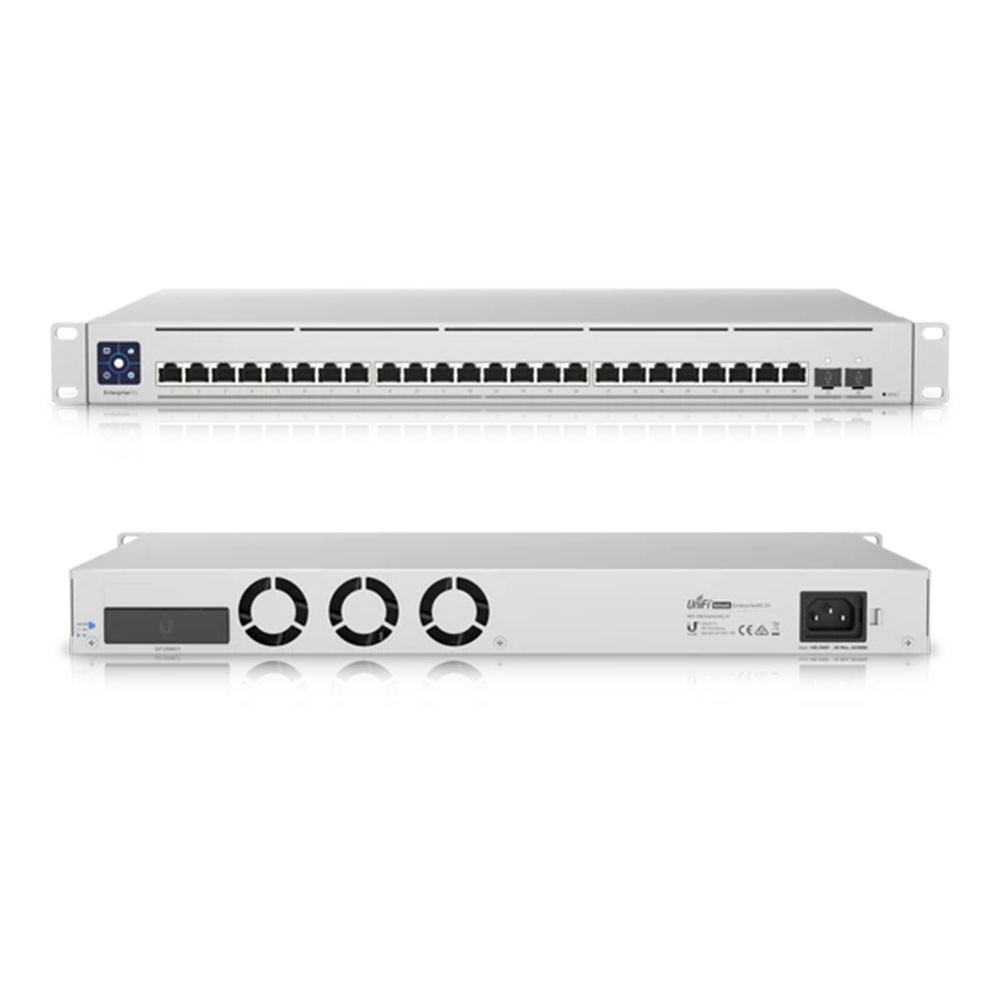

    Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.

    The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

    Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System ( sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

    Features

    • (1) 1.3" LCM color touchscreen with AR switch management
    • (24) 10GbE RJ45 ports
    • (2) 25G SFP28 ports
    • (1) USP RPS DC input
    • Layer 3 switching features
    • Single-row RJ45 port layout for easy patch panel cable management

    Hardware

    • Total Non-Blocking Throughput
      • 290 Gbps
    • Switching Capacity
      • 580 Gbps
    • Forwarding Rate
      • 431.52 Mpps
    • Max. Power Consumption
      • 100W
    • Power Method
      • (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz
      • (1) USP-RPS DC input: 11.5VDC, 8.7A
    • Power Supply
      • AC/DC, Internal, 100W
    • Management Interface
      • Ethernet In-Band
    • Networking Interfaces
      • (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
    • SFP28 Interfaces
      • (2) 1/10/25 Gbps SFP28*
        • *The two SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.
    • Services
      • SMB Layer 3 Gigabit Ethernet Switch
    • ESD/EMP Protection
      • Air: ± 16 kV, Contact: ± 12 kV
    • LCM Display
      • 1.3" Touchscreen
      • Bootup Animation: Bootup in Progress
      • Firmware Upgrade Icon: Firmware Upgrading
      • Steady White: Factory Defaults, Awaiting Adoption
      • Steady Blue: Device is Adopted
    • Button
      • Factory Reset
    • LEDs
      • White: Link or Activity
    • Operating Temperature
      • -5 to 40° C (23 to 104° F)
    • Operating Humidity
      • 10 - 95% Noncondensing
    • Certifications
      • CE, FCC, IC

    Mechanical

    • Dimensions
      • 442 x 44 x 285 mm (17.4 x 1.7 x 11.2")
    • Weight
      • Without Mount: 4.47 kg (9.85 lb)
    • With Mount:
      • 4.57 kg (11.02 lb)
    • Enclosure Materials
      • SGCC Steel
    • Mount Material
      • SGCC Steel

    Datasheet

    PDF File Ubiquiti Networks USW-EnterpriseXG-24 UniFi Switch EnterpriseXG 24
