USW-Enterprise-8-PoE

Ubiquiti

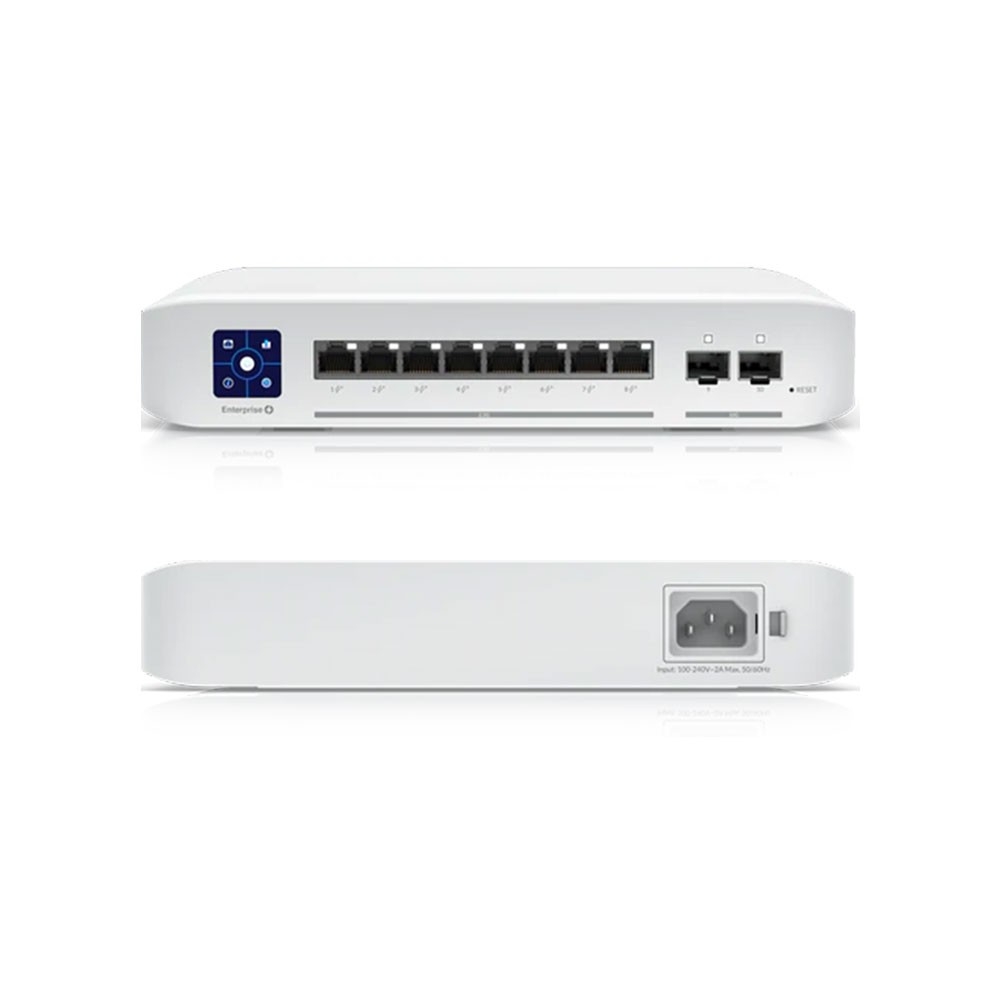

Ubiquiti UniFi USW Switch Enterprise 8-Port 2.5Gb PoE+ Compliant Managed Network Switch with SFP+


Product Highlights
  • (8) 2.5GbE, PoE+ RJ45 ports
  • (2) 10G SFP+ ports
  • 120W total PoE availability

    • Model#: USW-Enterprise-8-PoE

    Sku: IT3960



    MSRP: $676.79

    In Stock

    Your Price: $676.79






    Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.

    The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

    Features:

    • (1) 1.3" LCM color touchscreen with AR switch management
    • (8) 2.5GbE, 802.3at PoE+ RJ45 ports
    • (2) 10G SFP+ ports
    • 120W total PoE supply
    • Wall-mountable (kit included)

    * Layer 3 switching will become available in a future firmware update.

    Hardware

    • Total Non-Blocking Throughput
      • 40 Gbps
    • Switching Capacity
      • 80 Gbps
    • Forwarding Rate
      • 59.52 Mpps
    • Max PoE Power
      • 120W
    • Power Method
      • (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
    • Power Supply
      • AC/DC, Internal, 150W
    • Management Interface
      • Ethernet In-Band
    • Networking Interfaces
      • (8) 1/2.5 Gbps RJ45 Ethernet
    • SFP+ Interfaces
      • (2) 1/10 Gbps SFP+
    • PoE Interfaces
      • (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    • Max. PoE+ Wattage per Port by PSE
      • 32W
    • Voltage Range 802.3af Mode
      • 44 to 57V
    • Voltage Range 802.3at Mode
      • 50 to 57V
    • Services
      • SMB Layer 3* PoE Gigabit Ethernet Switch *Layer 3 feature will be available in the future firmware release.
    • LCM Display
      • (1) 1.3" Touchscreen
      • Bootup Animation: Bootup in Progress
      • Firmware Upgrade Icon: Firmware Upgrading
      • Steady White: Factory Defaults, Awaiting Adoption
      • Steady Blue: Device is Adopted
    • ESD/EMP Protection
      • Air: ± 16 kV, Contact: ± 12 kV
    • Operating Temperature
      • -5 to 45° C (23 to 113° F)
    • Operating Humidity
      • 10 - 90% Noncondensing
    • Certifications
      • CE, FCC, IC

    LEDs

    • Ethernet
      • White: Link or Activity
    • SFP+
      • White: Link or Activity

    Datasheet

    PDF File Ubiquiti UniFi USW Switch Enterprise 8-Port 2.5Gb PoE+ Compliant Managed Network Switch with SFP+
