Ubiquiti Networks USW-24-POE UniFi Switch 24 PoE
Product Highlights
Model#: USW-24-POE
Sku: IT3950
MSRP: $418.50
In Stock
Your Price: $418.50
MODEL: USW-24-POE
UniFi Switch Gen2 Gigabit 24-Port

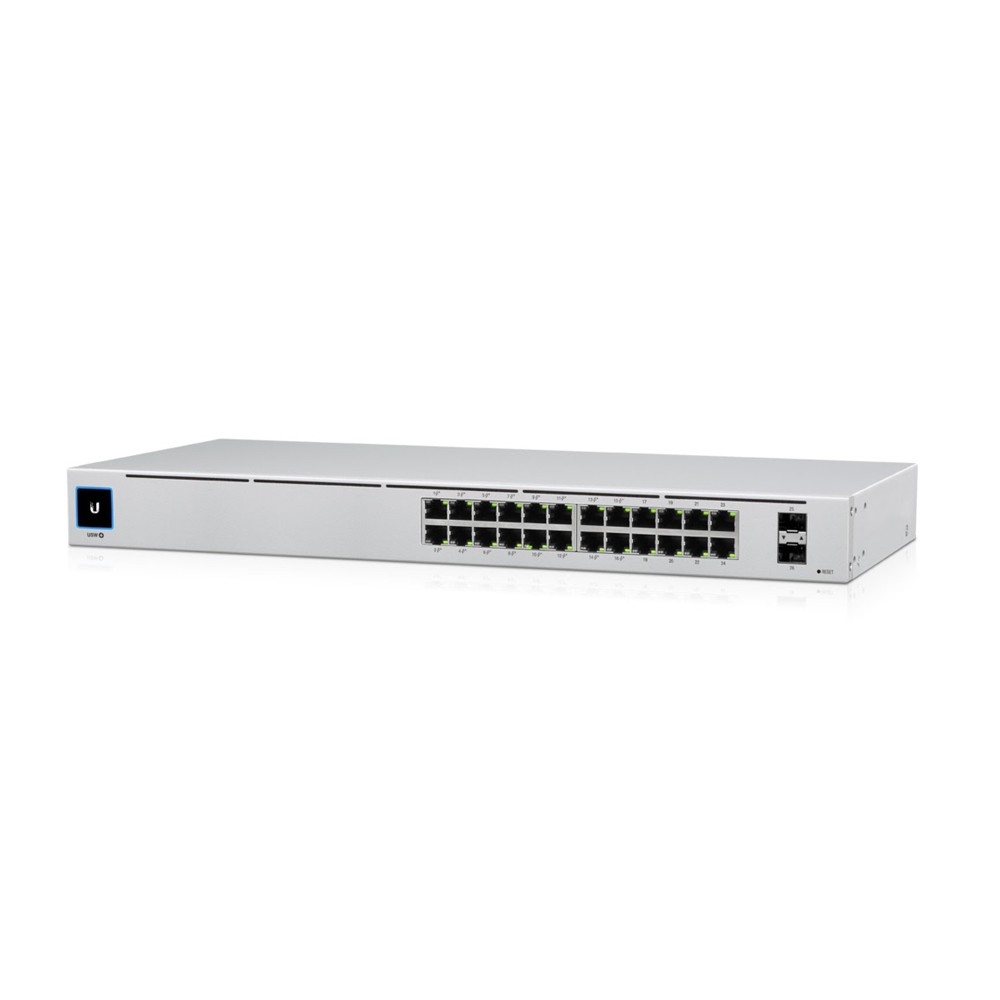

The USW-24-POE is a configurable Gigabit Layer2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Features:
- (16) Gigabit RJ45 ports with 802.3af/at
- (8) Gigabit RJ45 ports
- (2) 1G SFP ports
- 1U Rackmountable (hardware included)
Specifications USW-24-POE
| Dimensions | 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72") |
| Weight With Brackets |
3.00 kg (6.61 lb) 3.09 kg (6.81 lb) |
| Interfaces Networking Management |
(24) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Power Method | 100-240VAC, 50/60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 120W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 25W |
| LEDs System RJ45 Data Ports SFP Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 95W |
| PoE Interfaces Ports 1-8 |
POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-) |
| Max. PoE Wattage per Port by PSE 802.3at |
32W |
| Voltage Range 802.3af Mode 802.3at Mode |
44-57V 50-57V |
