UF-WiFi6-US

Ubiquiti


Ubiquiti Networks UF-WiFi6-US UFiber GPON CPE WiFi6 US



Product Highlights
  • Establishes links up to 20 km
  • Supported speeds: 2.4 Gbps (uplink) / 1.2 Gbps (downlink)
  • Dual-band WiFi with a 1.5 Gbps aggregate throughput rate
  • (1) GPON WAN port with an SC/APC optical connector
  • (4) GbE RJ45 LAN ports
  • Model#: UF-WiFi6-US

    Sku: IT3948



    MSRP: $119.99

    In Stock

    Your Price: $119.99






    SKU: UF-WiFi6-US

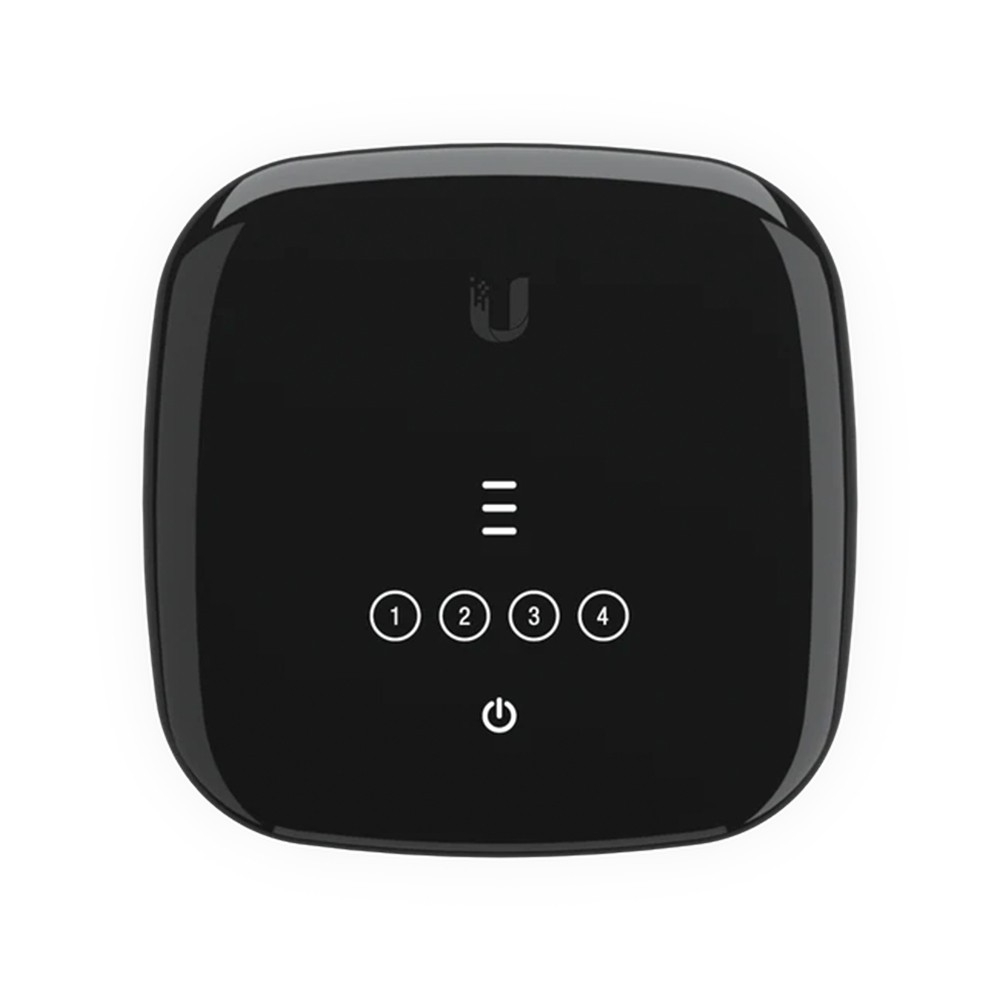

    High-performance UFiber WiFi6 GPON CPE

    The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.



    Features:

    • 2x2, high-efficiency WiFi 6
    • 2.4 GHz band (2x2 MIMO) with a 300 Mbps radio rate
    • 5 GHz band (2x2 MU-MIMO and OFDMA) with a 1.2 Gbps radio rate
    • 2.4 Gbps max downstream line rate
    • 1.2 Gbps max upstream line rate
    • Establishes GPON links up to 20 km
    • Powerful Layer 2/3 management features
    • (1) GPON WAN port
    • (4) GbE RJ45 LAN ports
    • Powered with the included power adapter or passive PoE
    • Internal WiFi 6 (802.11ax) antennas

    Specifications UF-WiFi6-US

    Mechanical
    Dimensions 140.8 x 141.5 x 31.65 mm (5.54 x 5.57 x 1.25")
    Weight 415 g (0.99 lb)
    Enclosure material UV-stabilized polycarbonate
    Hardware
    Processor Dual-core MIPS 1004 Kc at 900 MHz
    Memory 256 MB RAM
    Total non-blocking line rate 2.488 Gbps downstream 1.244 Gbps upstream
    Networking interfaces (1) SC/APC, ITU-G.984 GPON WAN port (4) GbE RJ45 LAN ports WiFi 802.11ax 5/2.4 GHz channels
    PoE interface (1) PoE in, 24V passive PoE
    Management interface Ethernet in-band PON
    Button Factory-reset
    Max. power consumption 11W
    Power method USB-C 5VDC, 3A 24V passive PoE, 0.5A
    Power supply 5VDC, 3A power adapter, 1.5 m cord (included) Passive PoE 2-pair (4, 5+; 7, 8-)
    Supported voltage range 10 to 30VDC passive PoE 5VDC adapter
    Normal TX range of optical module 0.5 to 5 dBm
    Normal RX range of optical module -8 to -28 dBm
    Max. WiFi TX power
    2.4 Ghz 20 dBm
    5 Ghz 20 dBm
    MIMO
    2.4 Ghz 2 x 2
    5 Ghz 2 x 2
    Max. WiFi radio rate
    2.4 Ghz 300 Mbps
    5 Ghz 1.2 Gbps
    Antenna Gain
    2.4 GHz 1 dBi
    5 GHz 3 dBi
    Operating temperature -15 to 45° C (5 to 113° F)
    Operating humidity 10 to 90% noncondensing
    Certifications FCC, IC, CE
    LEDs
    PON status
    (3) signal LEDs
    All-OFF: bootup
    1x orange: signal too low (< -28 db)
    1x white: signal low (>= -28 db)
    2x white: signal good (>= -25 db)
    3x white: signal strong (>= -11 db)
    1x orange + 2x white: signal too strong (>= -8 db)
    3x orange: no signal
    LEDs alternate between orange + white + orange and a signal strength indicator: No authority
    Ethernet Steady white: link up Blinking white: activity OFF: link down
    Power White: ON
    Software
    Mode ONU/ONT layer 2/3 Ethernet switch
    Services Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
    Utilities Dashboard, monitoring, alarms, and logs
    Other Remote reset, remote reboot, remote firmware upgrade, VLAN support
    Security GEM Port Encryption
    Ubiquiti specific features UBNT Discovery and UISP Mobile app
    WiFi standards 802.11 b/g WiFi 4/WiFi 5/WiFi 6
    Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
    Minimum software requirements Any modern web browser (Google Chrome™ recommended)
    Fiber
    Operating wavelength 1310 nm TX/1490 nm RX
    Optical interface downstream nominal bit rate 2488.32 Mbit/s
    Optical interface upstream nominal bit rate 1244.16 Mbit/s
    Physical reach 20 km
    Supported Data Rates
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    802.11ax (WiFi 6) 8.6 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

    Datasheet

    PDF File Ubiquiti Networks UF-WiFi6-US UFiber GPON CPE WiFi6 US
