LTU-XR-US

Ubiquiti

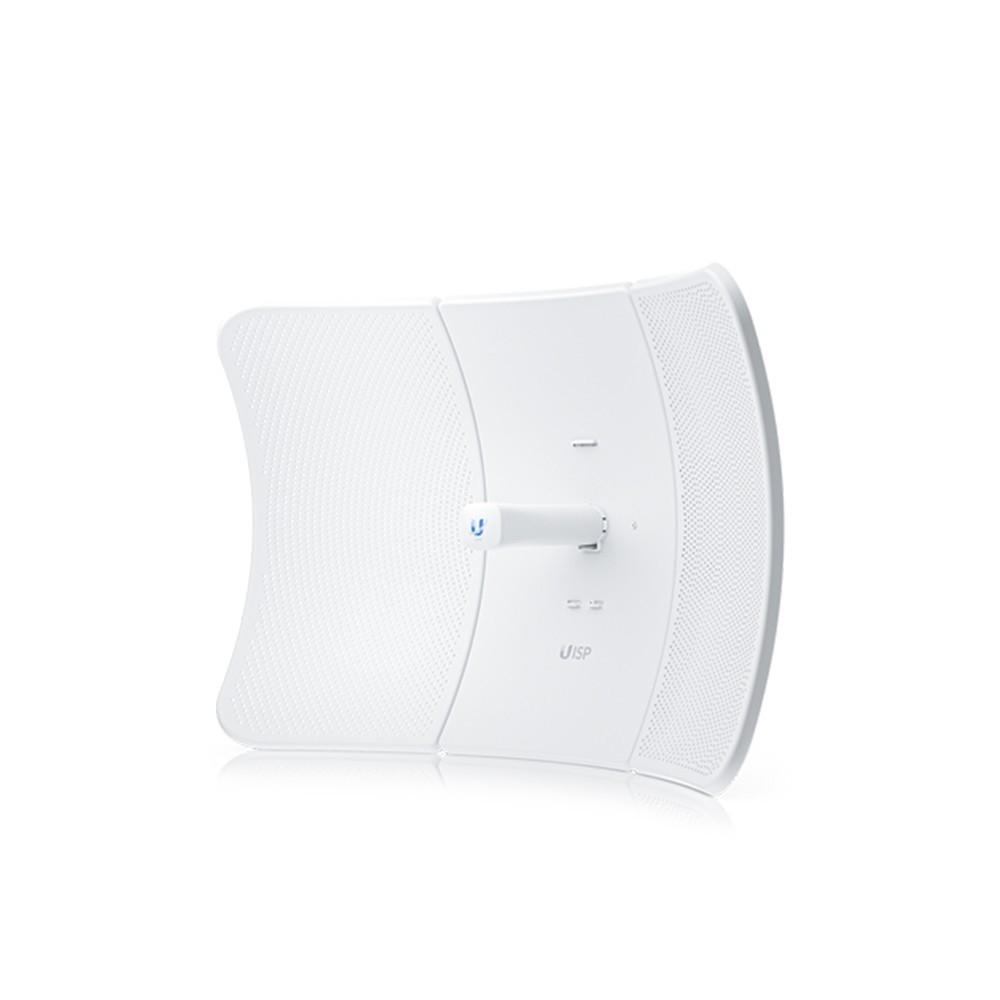

Ubiquiti Networks LTU-XR-US 5GHz LTU XR CPE US



Product Highlights
  • Proprietary Ubiquiti LTU core processor
  • Long-range, 29 dBi antenna with InnerFeed® technology
  • High data and performance rate (1024 QAM)
  • Link range up to 35 km
  • Channel width flexibility (10/20/30/40/50 MHz bandwidth)
  • Model#: LTU-XR-US

    Sku: IT3946



    MSRP: $223.99


    Out of stock

    Your Price: $223.99


    The LTU XR is a high-performance, cost-effective PtMP CPE for wireless ISPs that can reach up to a 550 Mbps throughput rate. The LTU XR also facilitates independent transmission and receives channel frequency configurations anywhere within its radio band to avoid local interference and ensure superior client performance. Additionally, the LTU XR is equipped with a Bluetooth management radio so it's easy to set up and configure with the UISP® Mobile app.

    Mechanical
    Dimensions

    • 747 x 525 x 347 mm (29.41 x 20.67 x 13.66")

    Weight

    • 3.2 kg (7.06 lb)

    Enclosure materials

    • Aluminum alloy, UV stabilized polycarbonate

    Mount material

    • UV stabilized polycarbonate

    Mount

    • Integrated pole mount (included)
      • Pole compatibility: Ø35-60 mm (Ø1.38-2.36")

    Wind loading

    • 1100 N at 200 km/h (247.29 lbf at 125 mph)

    Weatherproofing

    • IPX6

    Hardware
    Networking interfaces

    • (1) GbE RJ45 port

    Button

    • Factory reset

    LEDs

    • Power/ethernet

    RF connections

    • Internal

    Max. power consumption

    • 8.5W

    Power method

    • Passive PoE 2-pair (4, 5+; 7, 8-)

    Power supply

    • 24VDC, 0.5A Gigabit PoE adapter (included)

    Supported voltage range

    • 22 to 26VDC

    Operating temperature

    • -40 to 55° C (-40 to 131° F)

    Operating humidity

    • 5 to 95% non-condensing

    Certifications

    • FCC, IC, CE

    Datasheet

    PDF File Ubiquiti Networks LTU-XR-US 5GHz LTU XR CPE US
