TL-SG105E

TP-Link

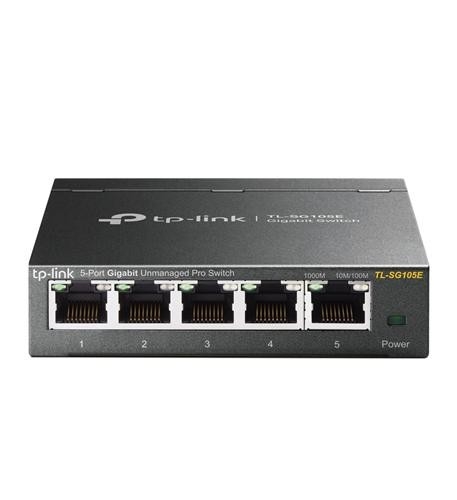

TP Link TL-SG105E 5-port Gigabit Easy Smart Switch



Product Highlights
  • 5 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption
  • Model#: TL-SG105E

    Sku: IT3936



    MSRP: $32.00

    In Stock

    Your Price: $32.00






    SKU: TL-SG105E

    5-Port Gigabit Easy Smart Switch TL-SG105E

    What this product does

    The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers Port-based/802.1p/DSCP QoS2 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 57% of power consumption, making it an eco-friendly solution for your business network.

    Effective Management

    TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port/802.1p/DSCP Priority2, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

    Go Green with Your Ethernet

    You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    Power down Idle Ports

    When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

    Power Budget According to Cable Length

    Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

    Easy to Use

    TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

    Specifications TL-SG105E

    Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    Interface 5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
    Fan Quantity Fanless
    Power Supply 100-240VAC, 50/60Hz
    Dimensions ( W x D x H ) 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
    Packet Forwarding Rate 7.4Mpps
    MAC Address Table 2K
    Packet Buffer Memory 1.5Mb
    Jumbo Frame 15KB
    Transmission Method Store-And-Forward
    Certification FCC, CE, RoHS
    Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

    Datasheet

    PDF File TP Link TL-SG105E 5-port Gigabit Easy Smart Switch
