USW-Lite-8-PoE

Ubiquiti

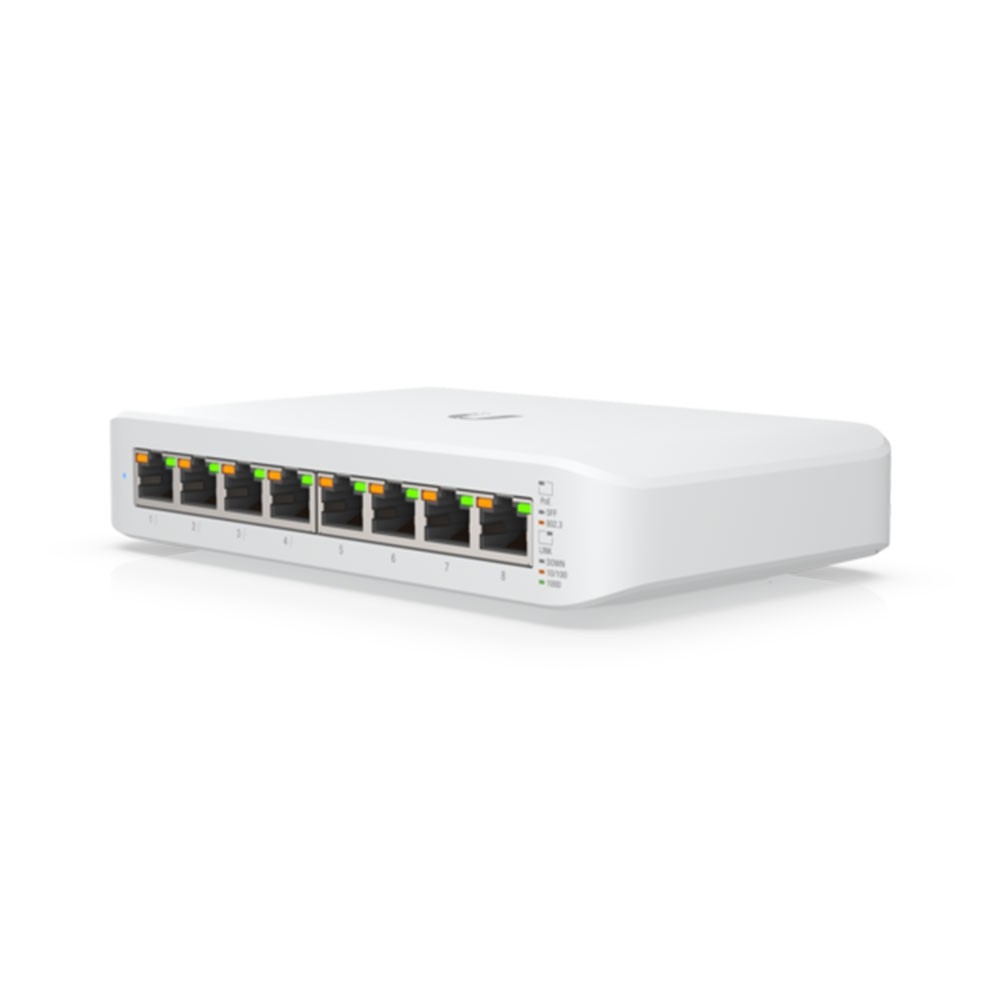

Ubiquiti Networks USW-Lite-8-POE UniFi Switch Lite 8 PoE


Product Highlights
  • (8) Gigabit RJ45 ports including (4) 802.3af/at PoE+ ports
  • Managed by UniFi Controller (5.13.10 or later)
  • External 60W power adapter
  • Wall-mountable (Kit Included)

    • Model#: USW-Lite-8-PoE

    Sku: IT3925



    MSRP: $121.00

    In Stock

    Your Price: $121.00






    MODEL: USW-Lite-8-PoE

    UniFi Switch Lite 8 PoE

    The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

    Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

    Features:

    • (8) Gigabit RJ45 ports including (4) 802.3at PoE+ ports
    • Managed by UniFi Controller (5.13.10 or later)
    • External 60W power adapter
    • Wall-mountable (Kit included)

    Works with UniFi Network Controller:

    • Manage Your Networks from a Single Control Plane
    • Intuitive and Robust Configuration, Control and Monitoring
    • Remote Firmware Upgrade
    • Users and Guests
    • Guest Portal/Hotspot Support

    Specifications USW-Lite-8-PoE

    Mechanical
    Dimensions 99.6 x 163.7 x 31.7 mm (3.92 x 6.44 x 1.25")
    Weight 450 g (15.87 oz)
    Hardware
    Total Non-Blocking Line Rate 8 Gbps
    Max. Power Consumption 8W
    Power Method 54VDC, 1.1A Power Adapter
    Power Supply External 54V/60W Power Adapter
    Supported Voltage Range DC 50V to 57V
    Networking Interfaces (8) 10/100/1000 Mbps Ethernet RJ45 Ports
    PoE Interfaces (4) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-)
    MangementInterface EthernetIn-Band
    Max. PoE+ Wattage per Port by PSE 30W
    Modes SMB Layer 2 PoE Gigabit Ethernet Switch
    Operating Temperature -15 to 40° C (5 to 104° F)
    Operating Humidity 10 - 90% Noncondensing
    Certifcations CE, FCC, IC
    LEDs
    Ethernet Green: 1G, Amber: 10/100 Mbps
    PoE Amber: IEEE 802.3af/at
    System (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted

    Datasheet

    PDF File Ubiquiti Networks USW-Lite-8-POE UniFi Switch Lite 8 PoE
