U6-LR-US

Ubiquiti

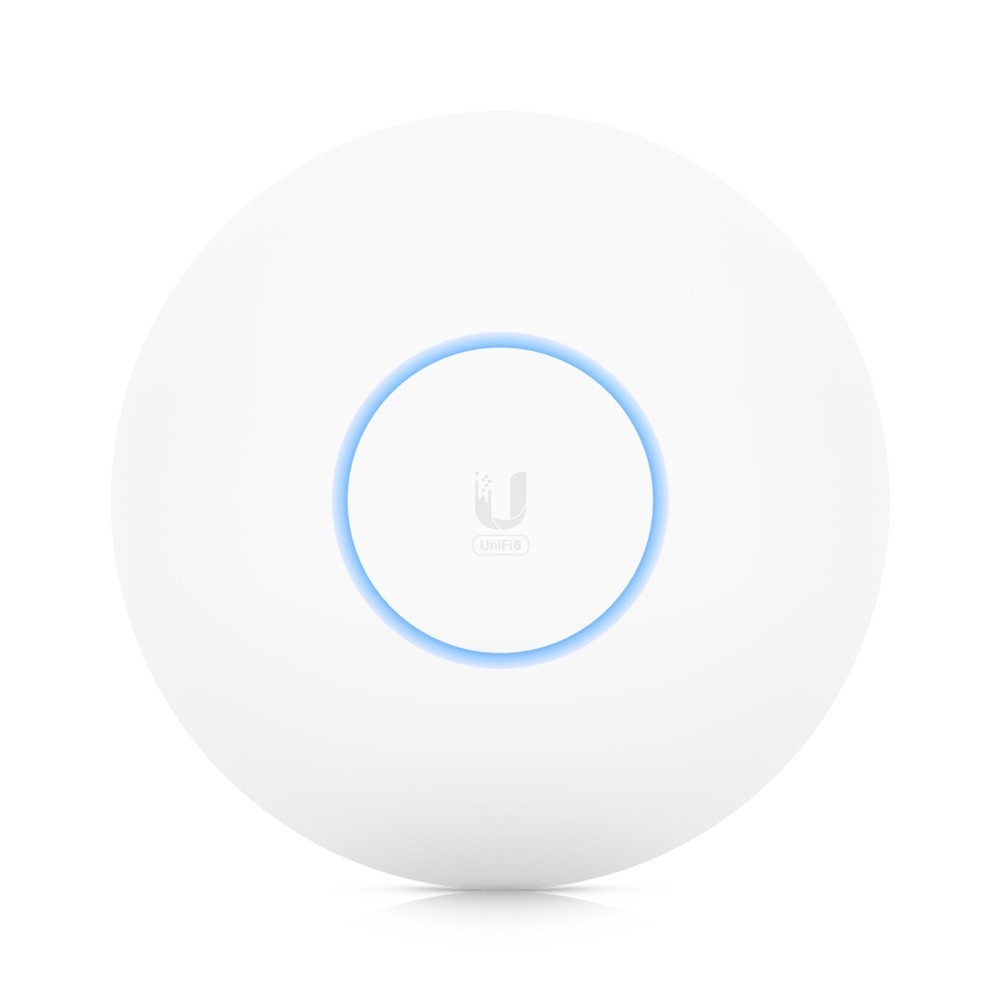

Ubiquiti Access Point WiFi 6 U6-LR Long-Range 4x4 MIMO (US Version)



Product Highlights
  • High-efficiency 4x4 WiFi 6 (802.11ax)
  • 5 GHz band (4x4 MU-MIMO and OFDMA) with 2.4 Gbps throughput rate
  • 2.4 GHz band (4x4 MIMO) with 600 Mbps throughput rate
  • Powered by 802.3at PoE (PoE injector sold separately)
  • IP54-rated water and dust protection for indoor/outdoor mounting versatility
  • Model#: U6-LR-US

    Sku: IT3923



    MSRP: $189.99

    In Stock

    Your Price: $189.99






    Model: U6-LR-US

    UniFi 6 Long-Range Access Point (US Version)

    U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.

    It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).

    Managed by UniFi Network Controller version: 6.0.34 or higher

    Works with UniFi Network Controller :

    • Manage Your Networks from a Single Control Plane
    • Intuitive and Robust Configuration, Control and Monitoring
    • Remote Firmware Upgrade
    • Users and Guests
    • Guest Portal/Hotspot Support

    Specifications U6-LR-US

    MECHANICAL
    Dimensions Ø220 x 48 mm (Ø8.66 x 1.89")
    Weight Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb)
    Enclosure Material Plastic
    Mounting Material SGCC Steel
    Weatherproofing IP54
    HARDWARE
    Processor Specs Dual-Core® Cortex® A53 at 1.35 GHz
    Memory Information 512 MB
    Management Interface Ethernet In-Band
    Networking Interface (1) 1 Gbps Ethernet RJ45
    Buttons Factory Reset
    LEDs RGB
    Power Method 802.3at PoE, Passive PoE (48V)
    Power Supply 802.3at PoE; 48V, 0.65A PoE Adapter (Not Included)
    Supported Voltage Range 44 to 57VDC
    Max. Power Consumption 16.5W
    Max. TX Power 2.4 GHz 5 GHz 26 dBm 26 dBm
    MIMO 2.4 GHz 5 GHz 4 x 4 4 x 4
    Throughput Speeds 2.4 GHz 5 GHz 600 Mbps 2400 Mbps
    Antenna Gain 2.4 GHz 5 GHz 4 dBi 5.5 dBi
    Mounting Wall/Ceiling (Kits Included)
    Operating Temperature -30 to 60° C (-22 to 140° F)
    Operating Humidity 5 - 95% Noncondensing
    Certifications CE, FCC, IC
    SOFTWARE
    Wi-Fi Standards 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
    Wireless Security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions
    BSSID 8 per Radio
    VLAN 802.1Q
    Advanced QoS Per-User Rate Limiting
    Guest Trafc Isolation Supported
    Concurrent Clients 300+
    SUPPORTED DATA RATES (MBPS)
    802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b 1, 2, 5.5, 11 Mbps
    802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n (Wi-Fi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
    802.11ac (Wi-Fi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
    802.11ax (Wi-Fi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

    Datasheet

    PDF File Ubiquiti Access Point WiFi 6 U6-LR Long-Range 4x4 MIMO (US Version)
