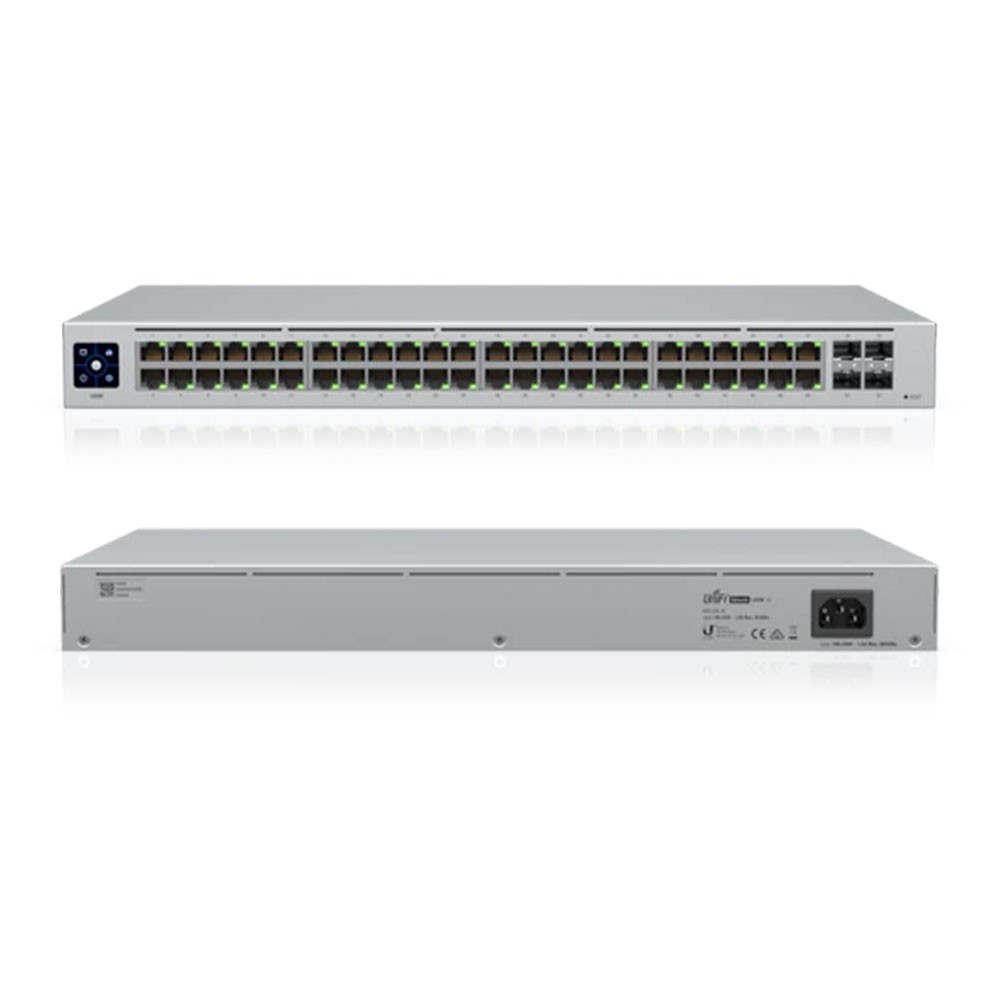

Ubiquiti USW-48 UniFi Layer 2 48-Ports Gigabit Switch with SFP 48-Ports GbE RJ45 and 4-Ports 1G SFP (NO POE version)
Model#: USW-48
Sku: IT3922
MSRP: $442.00
In Stock
Your Price: $442.00
MODEL: USW-48 - NO POE VERSION
he USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports, providing 1 Gigabit links to your devices and fiber uplink options to your enterprise network. It features a 1.3" touch LCM, and a fanless design. The LCM provides current switch states and the necessary information you need for quick diagnosis
Managed and configured by the UniFi Networ k Controller and mobile app, the UniFi Switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode ( switching , mirroring , or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywher e.
Features:
- (48) GbE ports
- (4) 1G SFP ports
- Fanless, silent cooling
Specifications USW-48
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) GbE RJ45 ports (4) 1G SFP ports |
| Total non-blocking throughput | 52 Gbps |
| Switching capacity | 104 Gbps |
| Forwarding rate | 77.376 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 60W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 40W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -15 to 40° C (5 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
Datasheet
