Model: UVC-G4-Bullet

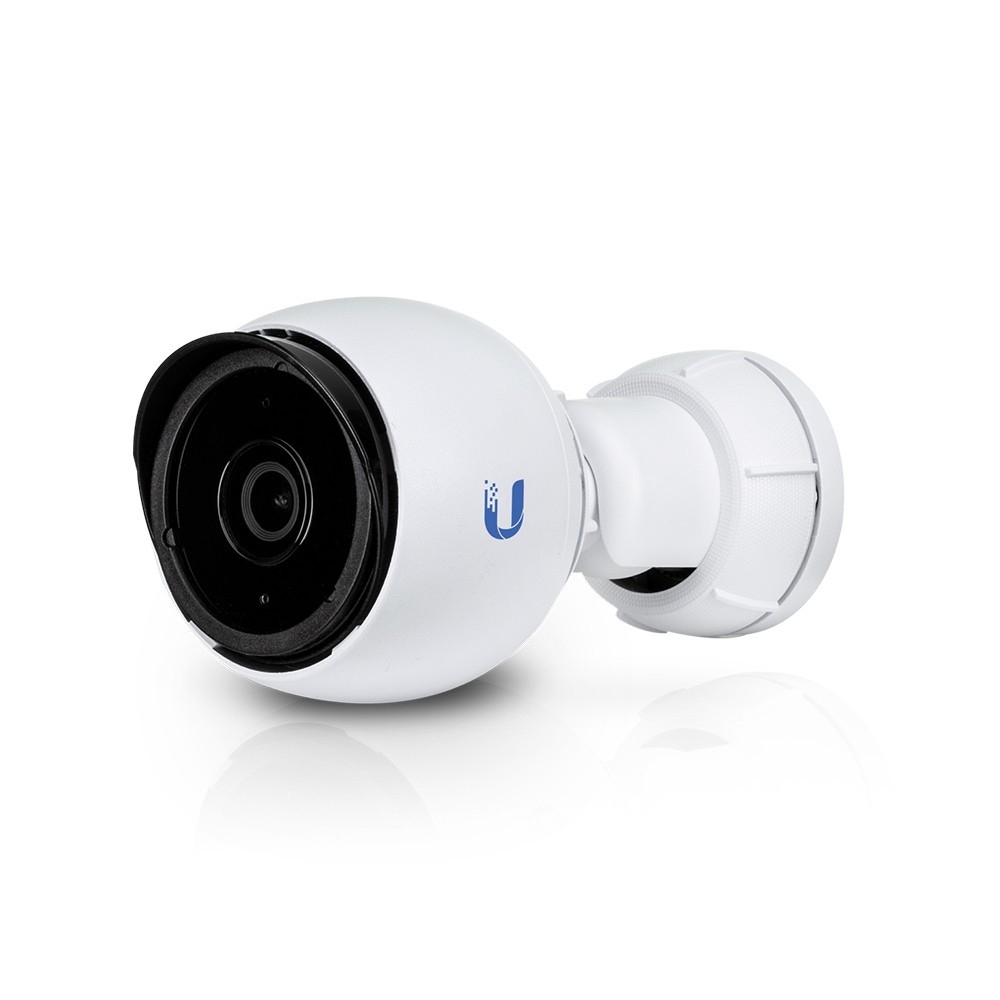

Ubiquiti Networks UniFi G4 Series UVC-G4-BULLET 4MP Outdoor Bullet Camera
The UniFi G4 Series 4MP Bullet Camera from Ubiquiti Networks. This unit uses a CMOS sensor to capture 2688 x 1512 resolution at 24 fps. The camera features an IR LED for visibility in low-light conditions, a fixed lens that delivers an 86° horizontal field of view, and a built-in microphone to pick up audio. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi Protect app for iOS and Android enables remote management.
This camera is housed in an IPX4- and IK04-rated enclosure for protection from water and impact.
- Automatic IR cut filter for day and night functionality
- Built-in light sensor
- 1000M Ethernet port
- H.264 video compression
- Image settings include brightness, contrast, sharpness, saturation, noise reduction, and 50/60 Hz
- 3-axis angle adjustment
- Factory reset button
- UniFi Protect for iOS and Android
- FCC, IC, and CE certified
Camera
- Sensor 5 MP CMOS
- Lens Field of View Horizontal: 86°
- Vertical: 60°
- Diagonal: 111°
- IR Cut Filter Mechanical
- Day/Night Yes
Video
- Streaming Resolution 2688 x 1512 at 24 fps
- Supported Video Compression H.264
Audio
- Streaming Single
- Built-In Mic Yes
- System Integration
- Event Trigger None
- System Requirements
- Mobile Operating Systems iOS, Android
Environmental
- Operating Temperature -4 to 104°F / -20 to 40°C
- Operating Humidity 0 to 90%
- IP Rating IPX4
- IK Rating IK04
General
- Memory 512 MB RAM / 256 MB Flash
- Pan/Tilt None
- I/O Connections 1 x RJ45
- Video Management Software UniFi Protect
- Internal Storage None
- Power Source PoE 802.3af (15 W)
- Power Consumption 4 W
- Material of Construction Aluminum, Polymer
- Dimensions ø: 3.0 x L: 5.5" / ø: 75.0 x L: 140.0 mm
- Weight 1 lb / 458 g
Packaging Info
- Package Weight 1.76 lb
- Box Dimensions (LxWxH) 7.7 x 4.2 x 3.5"
Datasheet
