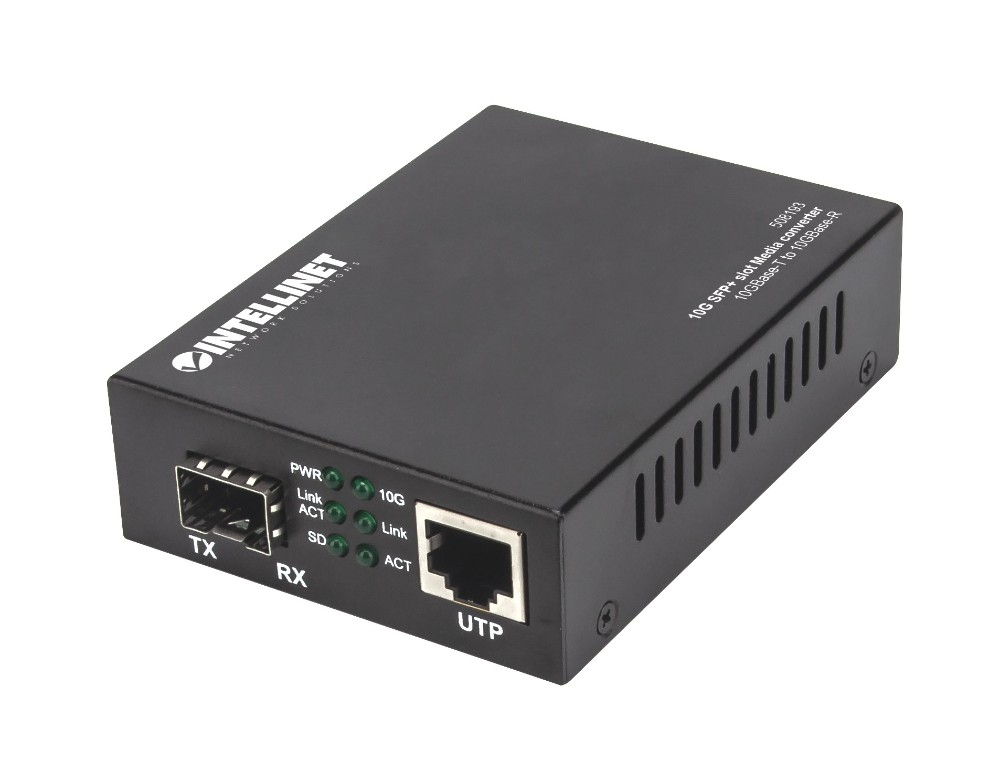

Intellinet 508193 10GBase-T to 10GBase-R Media Converter
Product Highlights
Model#: 508193
Sku: IT3859
MSRP: $212.99
In Stock
Your Price: $169.99
Sku:508193
Intellinet 508193 10GBase-T to 10GBase-R Media Converter
The Intellinet Network Solutions 10GBase-T to 10GBase-R Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. And with a super-fast 10 Gbps connection, network speed stays constant for high-bandwidth data transfers.
Features:
- One 10 GB SFP+ port
- Supports IEEE802.3u, 10GBase-T and 10GBase-FL
- Supports full-duplex mode or half-duplex mode operation with autonegotiation
- Status LEDs for power and Link/TX for both ports
- External 12 VDC power adapter
- Three-year warranty
- Standards
- 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T
- 1000Base-X, 2500Base-X, 5GBase-R, 10GBase-R
- General
- Media support:
- - 1000Base-T: Cat5 UTP/STP, max. 100 m (330 ft.) - 2.5GBase-T: Cat5e UTP/STP, max. 50 m (164 ft.) - 5GBase-T: Cat5e UTP/STP, max. 50 m (164 ft.) - 10GBase-T: Cat6a UTP/STP, max. 50 m (164 ft.)
- Connectors:
- - One RJ45 port, 10GBase-T - One SFP+ port, 10GBase-FLLEDs
- Power
- LINK/ACT for RJ45 port
- LINK/ACT for SFP+ port
- 10G Indicator
- Optical signal input LED
- Power
- External power adapter: 12 VDC, 0.5 A
- Power consumption: 5 watts (maximum)
- Environmental
- Metal housing
- Dimensions: 95 (L) x 70 (W) x 25 (H) [mm] / 3.74 (L) x 2.76 (W) x 0.98 (H) [in]
- Weight: 0.2 g (0.44 lb.)
- Operating temperature: 0 – 55°C (32 – 131°F)
- Operating humidity: 5 – 80% RH, non-condensing
- Storage temperature: -10 – 70°C (14 – 158°F)
- Package Contents
- 10GBase-T to 10GBase-R Media Converter
- External power adapter
- User manual
