Overview

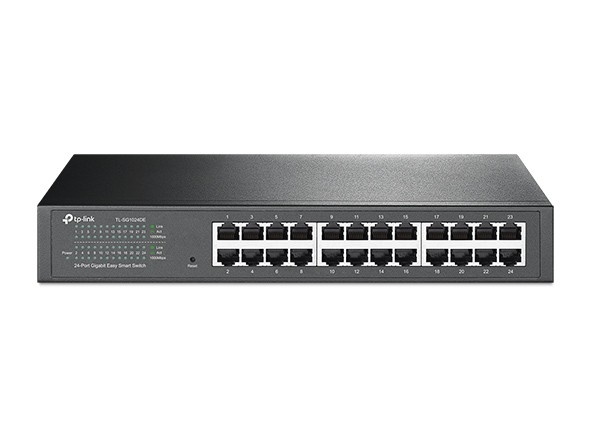

TheTL-SG1024DE 16-Port/24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Through Web and Utility management network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE/TL-SG1024DE offers port based, tag based and DSCP QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with the innovative energy-efficient technology, the TL-SG1024DE can save up to 18% of power consumption, making it an eco-friendly solution for your business network
Effective Management
TP-Link Gigabit Easy Smart switch, TL-SG1024DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1024DE can identify and even locate connection problems on your business network. Moreover, administrators can desTL-SG1024DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1024DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024DE 16-Port/24-Port Gigabit Easy Smart Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024DE can automatically detect the link status of each port and reduce the power consumption of ports that are idle
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024DE analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to Use
TL-SG1024DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p |
Interface | 24 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | No |
Power Supply | 100-240VAC, 50/60Hz |
Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 14.19W (220V/50Hz) |
Max Heat Dissipation | 48.39 BTU/h |
PERFORMANCE | |
---|---|
Switching Capacity | 48Gbps |
Packet Forwarding Rate | 35.7Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1Mbit |
Jumbo Frame | 10KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Transmission Method | Store-And-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SG1024DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
System Requirements | Microsoft® Windows® for Easy Smart Utility |
Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
