Model: i32V

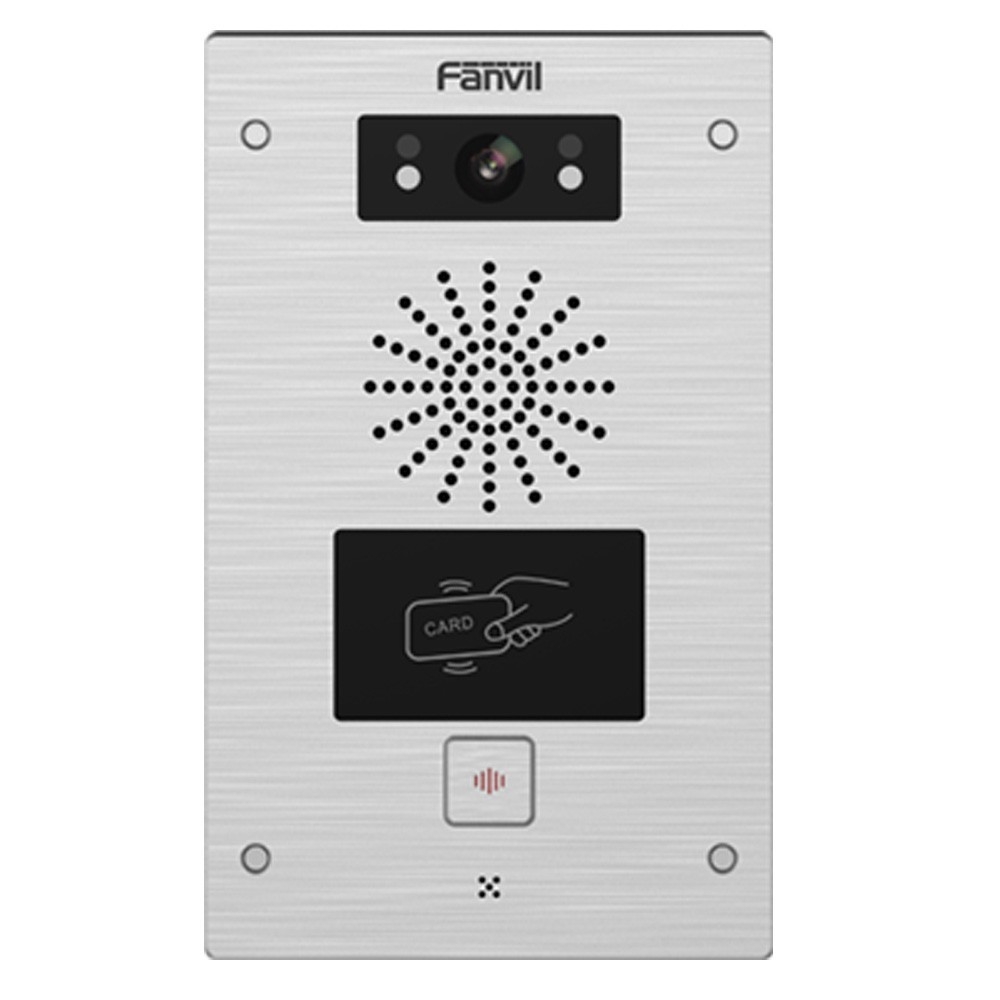

Fanvil i32V Outdoor IP Video Intercom with Night Vision Infrared RFID & Infrared
Fanvil i32V is a network-connected intercom and door entry solution with built-in HD video camera, infrared LEDs, and RFID reader. Designed for indoor or outdoor installation, i32V is a full-duplex intercom with wideband audio support and acoustic echo cancellation to clarify the sound and increase comprehension. The 3W speaker projects sound clearly and loudly. The integrated video camera can take dual stream video with the primary stream being 720p HD resolution for excellent detail. The intercom has built-in infrared LEDs for video at night. The built-in RFID reader enables secure, contactless entry using RFID cards or keyfobs. It supports both 125 kHz and 13.56 MHz RFID standards.
Fanvil i32V is a SIP intercom, compatible with an extensive selection of VoIP platforms, including Avaya, Broadsoft, 3CX, Asterisk, and many more. Manage the intercom securely online using the web management portal. i32V has a rugged design, meeting the IP65 standard against dust and water ingress and the IK10 rating against impacts. It also has an extended operating temperature range of -40°F to 158°F. Power i32V using PoE.
- Different ways to unlock the door
Support to open the door with RFID/IC cards,remote DTMF and indoor switch.
- Support HD Video and Two Video Streams
With HD camera with infrared night vision, visitors can be identified clearly even at night. Support two video streams in which the main code stream works for high-quality video on monitoring and the subcode stream for smooth SIP video call.
Support HD audio with built-in 3W speaker, Acoustic EchoCanceller (AEC) and nice background noise reduction.
Featuring the waterproof and dustproof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40? to 70?, i32V can be applied in different kinds of outdoor environment.
Connecting with VMS video management system via ONVIF protocol, i32V enables video preview and video recording, which can be widely used for round-the-clock video surveillance.
- Support External Door Magnetic Detector and Wiegand Card Reader
i32V can be connected to 2 door magnetic detectors which will make an alarm if the door can not be closed after the timeout. It can also connects to a Wiegand card reader to control the second door, which is used in the places with high security requirements, such as prisons and banks.
Highlights
- Built-in HD camera with infrared night vision, adopt H.264 codec
- Access control(by call, RFID/IC card and indoor switch)
- All-in-one (Access control, Intercom and Broadcasting)
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)
- IP65 waterproof and dustproof
- IK10 anti-collision with robust die-cast aluminum frame
- -40°C to 70°C wide range temperature adaptability
- Support online management and upgrade
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc
Technical Description
- Generic
- 2 SIP Lines
- Duplex hands-free
- Intelligent DSS Keys (Speed Dial/intercom etc)
- Auto answer
- Intercom function
- Industrial Standard Certifications: IP65&IK10, CE/FCC
- Access Control Function
- Unlock door method: DTMF, RFID/IC card, indoor switch, WEB page
- Support 5000 Remote access list
- Support 5000 RFID/IC cards
- Support 200,000 door open records
- Support electric lock internal or external power supply options
- Dynamic multicast function
- Support ONVIF
- Support customized DSS keys
- Network Time Synchronization
- Action URL / Active URI
- Audio
- Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband Codec: G.722
- Duplex intercom with Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO
- Video
- Sensor: 1/2.7” color CMOS
- 2 Megapixels
- Video Code: H.264
- Resolution:
- main stream 1280×720@25fps
- Sub-stream 704×576(D1)@25fps
- Viewing angle: 112° (H), 84° (V)
- Minimum illumination: 0.1Lux, support for infrared illumination
- Networking
- 10/100 Mbps
- IP Configuration: Static / DHCP / PPPoE
- Network access authority authentication: 802.1x
- VPN: L2TP / OpenVPN
- LLDP
- Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- Deployment & Maintenance
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
- Web Management Portal
- Web-based Packet Dump
- Configuration Import/Export
- Firmware Upgrade
- Syslog
- Physical Specifications
- 1 DSS button (speed dial button)
- 1 RJ45 port
- 1 Wiegand port
- 1 audio output interface
- 1 recording output interface
- 2 embedded short circuit input interface
- 2 relays: MAX DC30V / 2A, AC125V / 0.5A
- Active switching output: 12V / 500mA DC(only 1 relay support)
- 2 door magnetic detection interface
- 1 tamper alarm switch
- RFID reader: ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
- Power: DC12V/1A or PoE
- Housing material: aluminum alloy shell
- Protection level: IP65 and IK10
- Installation: Wall-mounting
- Working temperature: -40 ~ 70 °C
- Storage temperature: -40 ~ 70 °C
- Relative humidity: 10% - 90%
